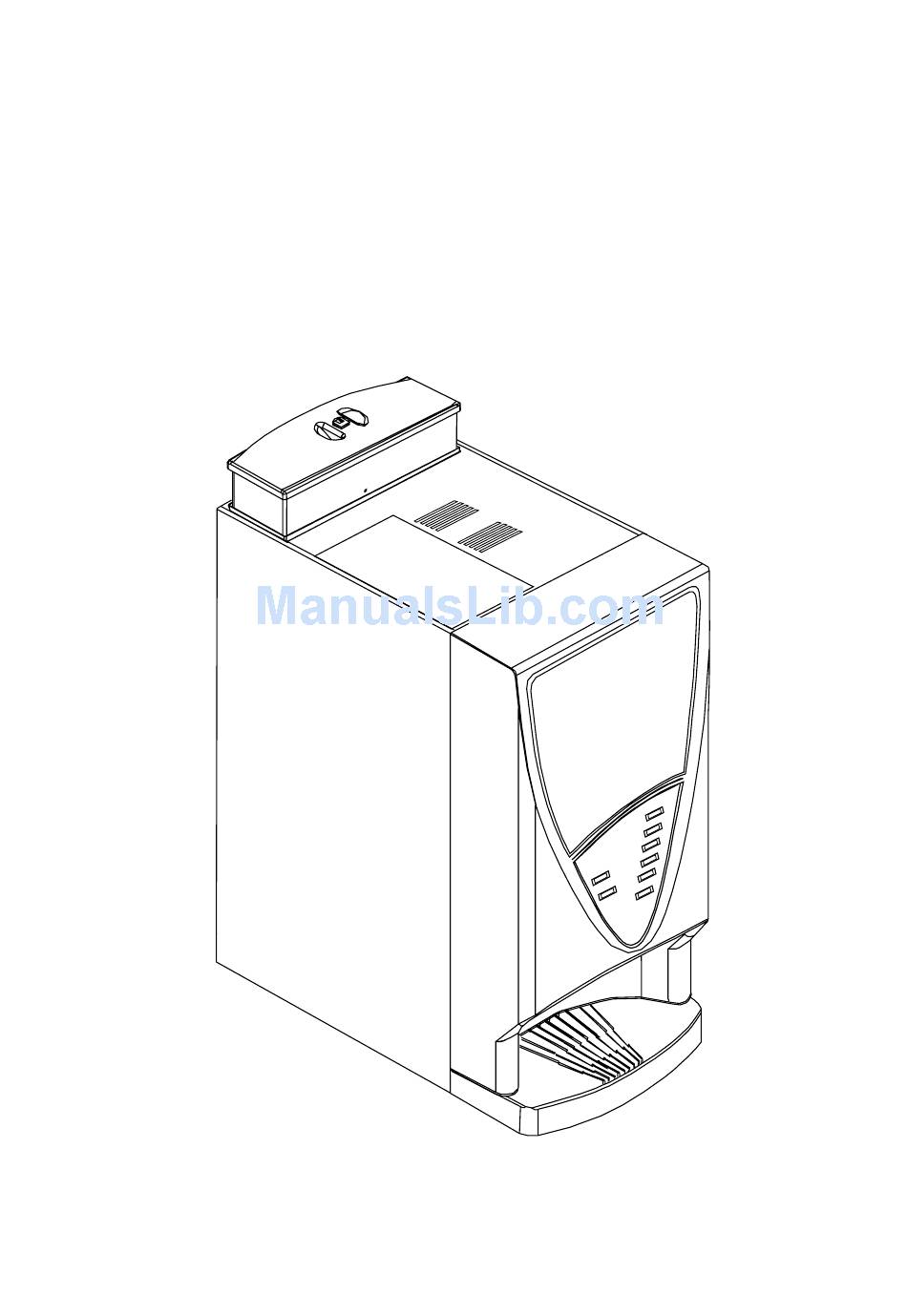

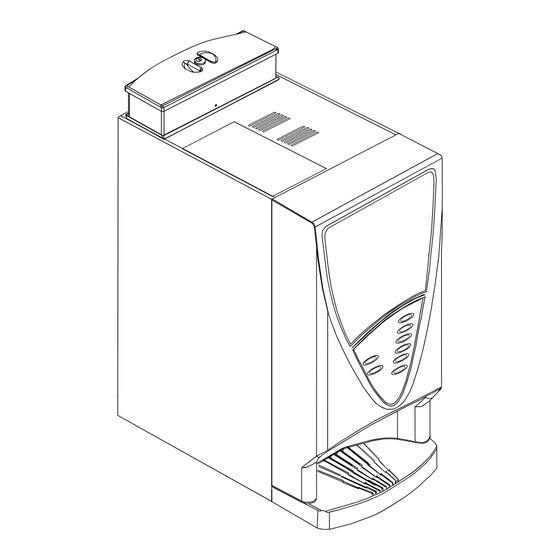

- Page 1 Instruction for use LP 14 © ETNA Vending Technologies b.v.
- Page 2 Instruction for use LP 14 Manufacturer: ETNA Vending Technologies b.v. P.O. Box 200 7130 AE Lichtenvoorde The Netherlands Distributor: © ETNA Vending Technologies b.v. Articlecode: 865335101 Status: Revision:...
-
Page 3: Table Of Contents
Instruction for use LP 14 CONTENTS 1 SUMMARY OF PARTS ............. 4 2 INTRODUCTION . -
Page 4: Summary Of Parts
Instruction for use LP 14 SUMMARY OF PARTS 17,5 532,5 Container for instant products 1 Door Container for instant products 2 Selection panel Bean reservoir Dispense head Mixer parts Waste bucket Drip tray © ETNA Vending Technologies b.v. -
Page 5: Introduction
Instruction for use LP 14 INTRODUCTION How to operate and maintain the LP 14. Figure 2 is an illustration of the control panel of the LP 14. Figure 2-1 Overview of the buttons on the selection panel of the LP 14 The LP 14 delivers Café... -
Page 6: Safety Instructions
Instruction for use LP 14 SAFETY INSTRUCTIONS The LP 14 meets all the requirements associated with the CE mark. The following symbols are used in these instructions: This means: take care, danger of damage to the machine This means: take care,... -
Page 7: Preparing The Machine For Use
Connect to the tap using a water hose with the correct thread (3/ 4 inch BSP) and turn Before the LP 14 is ready for use, several on the tap. Check that there are no leaks. operations must be carried out. Although these... -
Page 8: Filling The Containers Inside The Machine
Instruction for use LP 14 4.4.2 Filling the containers inside the machine Open the machine door. Lift the upper lid. Remove the cover from the container and fill it with the desired ingredient. Ensure that the correct ingredients are placed in the containers intended for them. -
Page 9: Operating The Machine
Where <1.00> is displayed, the current credit is 1.00 for example. The LP 14 machines are easy to use. The way in The following is displayed if the credit is lower which a drink is selected is described in the next than the cost of the drink selected: paragraphs. -
Page 10: Maintenance
If not, top it up as Weekly maintenance described in paragraph 4.4 . The parts used to prepare the drinks must be cleaned regularly. The LP 14 must be cleaned 6.1.2 Emptying the waste container thoroughly once a week. Open the door. -
Page 11: Cleaning The Mixer Components
Instruction for use LP 14 6.2.2 Cleaning the mixer components During weekly maintenance you must clean the following parts: • the hood / extractor • the mixing chamber • the hoses Open the door. Remove the ingredient containers from the machine. -
Page 12: Error Messages And Solutions For Small Faults
A number of possible faults and solutions are given in the following SOLUTIONS FOR SMALL FAULTS table. In spite of all the precautionary measures taken, faults can occur in the LP 14 In that case error Sign Error Error message 2 Cause... -
Page 13: Technical Data
Instruction for use LP 14 TECHNICAL DATA Dimensions: Height excluding bean container: 655 mm Height including bean container: 750 mm Breadth: 410 mm Depth: 580 mm Weight: 40 kg Maximum 2.7 kilowatts consumption: Required water 1.5 - 8 bar pressure:... - Page 14 Instruction for use LP 14 © ETNA Vending Technologies b.v.
- Page 15 Instruction for use LP 14 © ETNA Vending Technologies b.v.
