to prevent one-side overpressure destroying the transmitter. Or the customer can
buy the leading tube and tri-valve from our factory. Tri-valve operation method
can see appendix "Tri-valve Operation Menu".
3.2.2 Installation Method

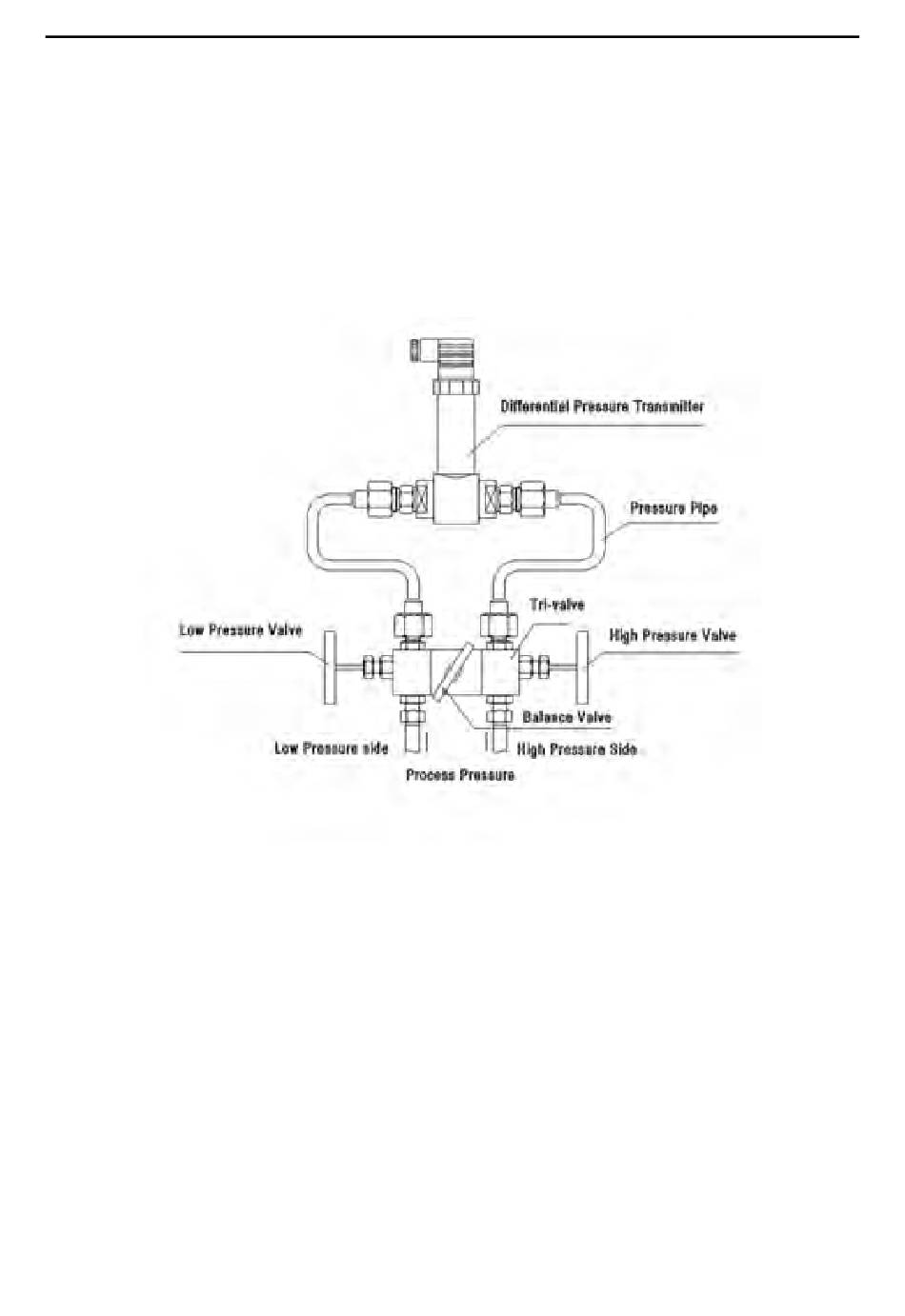

a) The recommended method is to see Fig. 3.
b) Installation notes:
1) To prevent the installation position from affecting zero output
signal, the transmitter can be installed horizontally on the tube and the plug
could be installed vertically up.
2) Pay attention to whether the measured medium is consistent with
the transmitter structure material.
3) Pay attention to the measuring medium is compatible with the
Fig. 3
