Microsensor MDM490 Operation Manual page 3

Static pressure：≤20MPa
Accuracy:±0.5%FS (Non-linearity, Repeatability and Hysteresis)
Response: ≤1ms
Insulation: 100MΩ， 50VDC
Housing Protection: IP65
3 Outline Construction and Installation

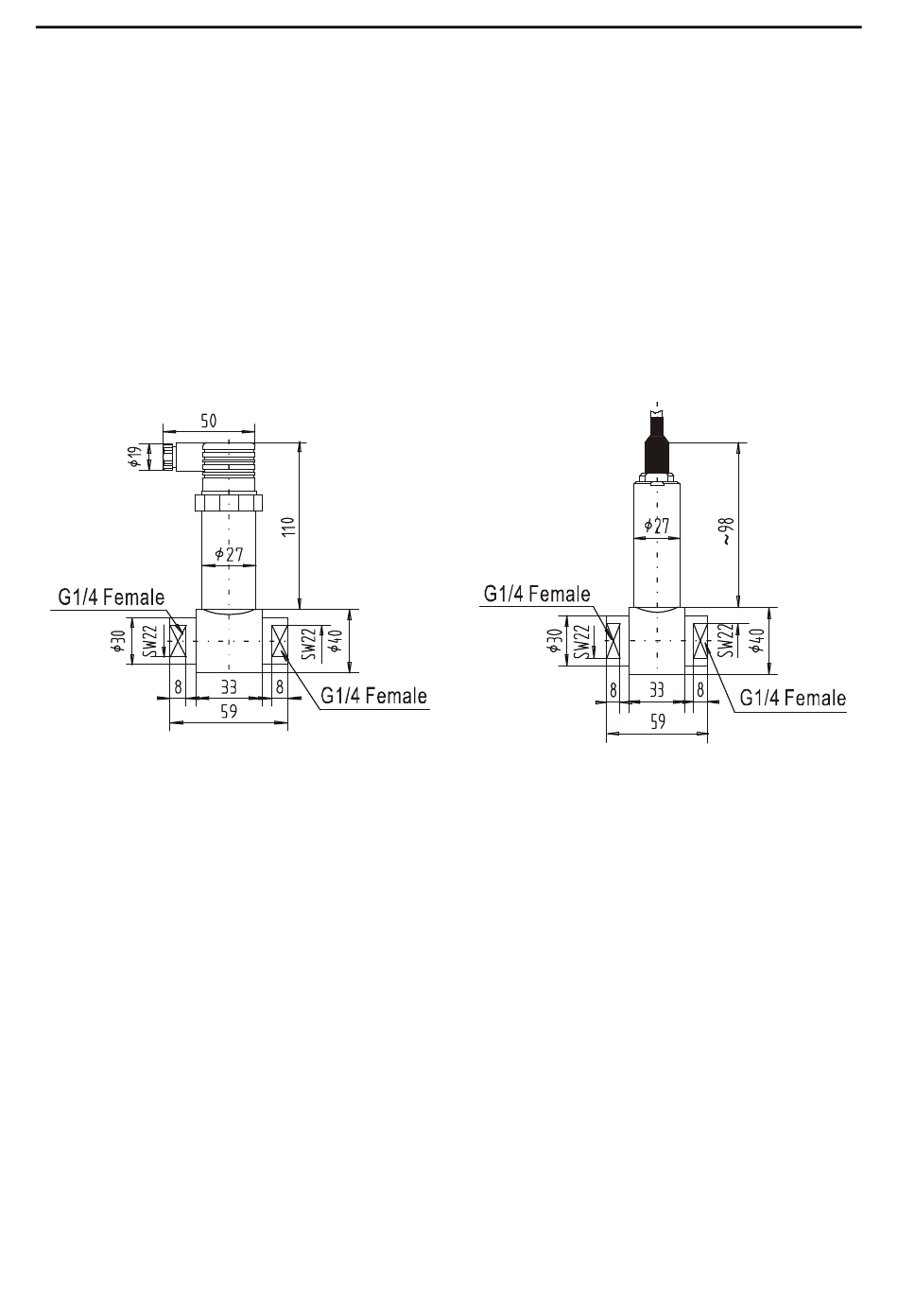

3.1 Construction and Mounting Dimension(Unit:mm)：
Fig.1
3.2 Installation
3.2.1 Attentions before installation:
a) The operating pressure of measuring medium is no more than the line
pressure of transmitter;
b) The differential pressure of measuring medium in the worksite is no
more than the maximum pressure.
c) For positive and negative pressure balance and convenient repair, we
recommend to use tri-valve （such as J23SA）to connect with the leading tube,
2
Fig.2
