Setting The Scissor Stay Or Turn-Only Hinge - Sash Part - Lift/Lower - Maco MULTI Maintenance And Adjustment Instructions

MACO
MULTI
Adjustment values are always specified in regard to the hinge-side
air gap and/or the bottom horizontal air gap.

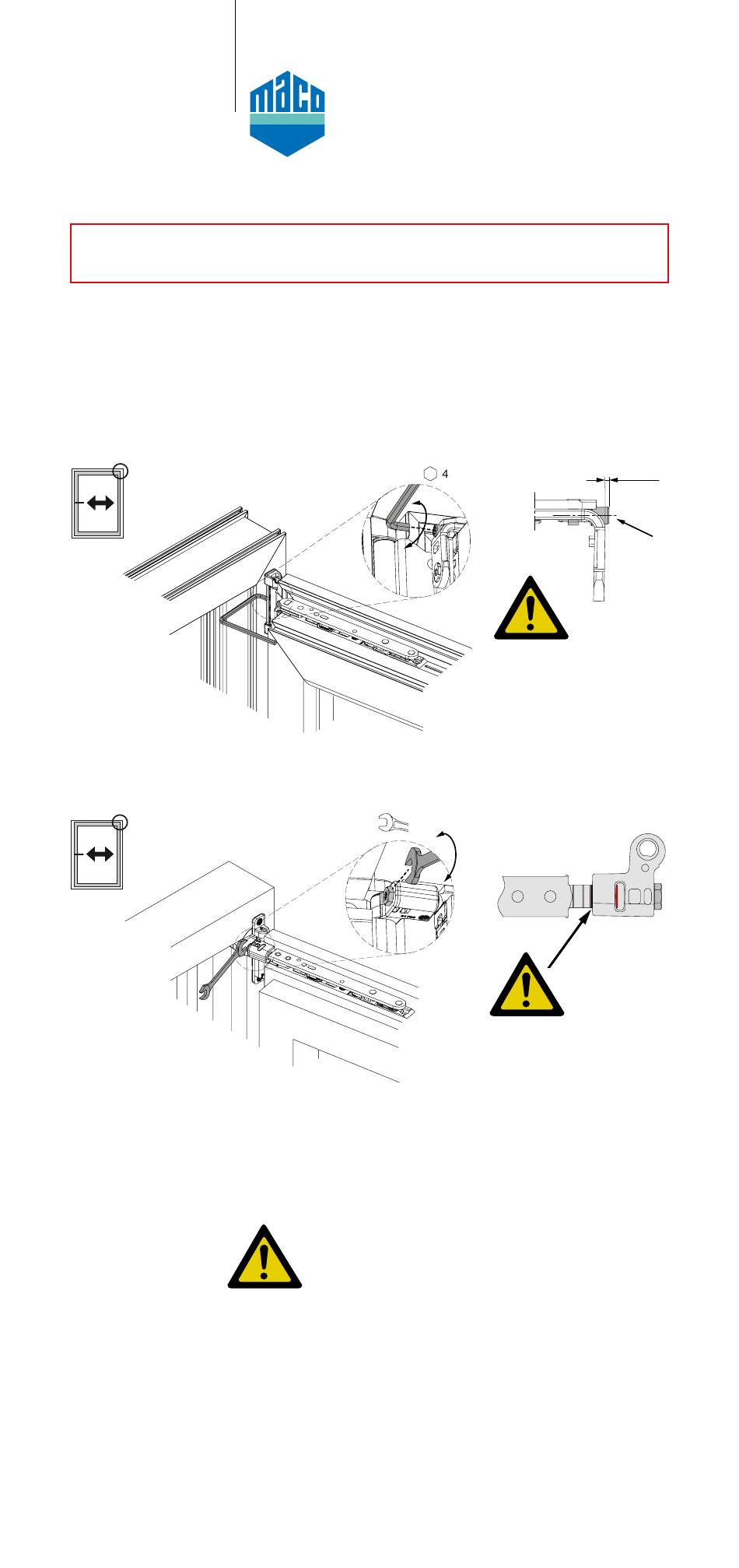

Setting scissor stay or turn-only hinge
1. Lift/lower
■ MULTI-MATIC / MULTI-TREND corner hinge version
+2,85 / -1,8
■ MULTI-MATIC / MULTI-TREND stay and hinge
-3 / +5
■ MULTI MAMMUT
9
The sash may only be
lowered to the third notch
and/or to the red mark,
otherwise the sash can fall
out!
The side adjustment of the scissor stays
up to version 2 requires the mandatory use
of feeler gauge item no. 468684 to ensure
that the minimum adjustment measure-
ment is not underrun!
- 6 -
max. 1
The adjusting screw
must not protrude
more than a
maximum of 1 mm!
1.
