Simu 5124491A Instruction page 11

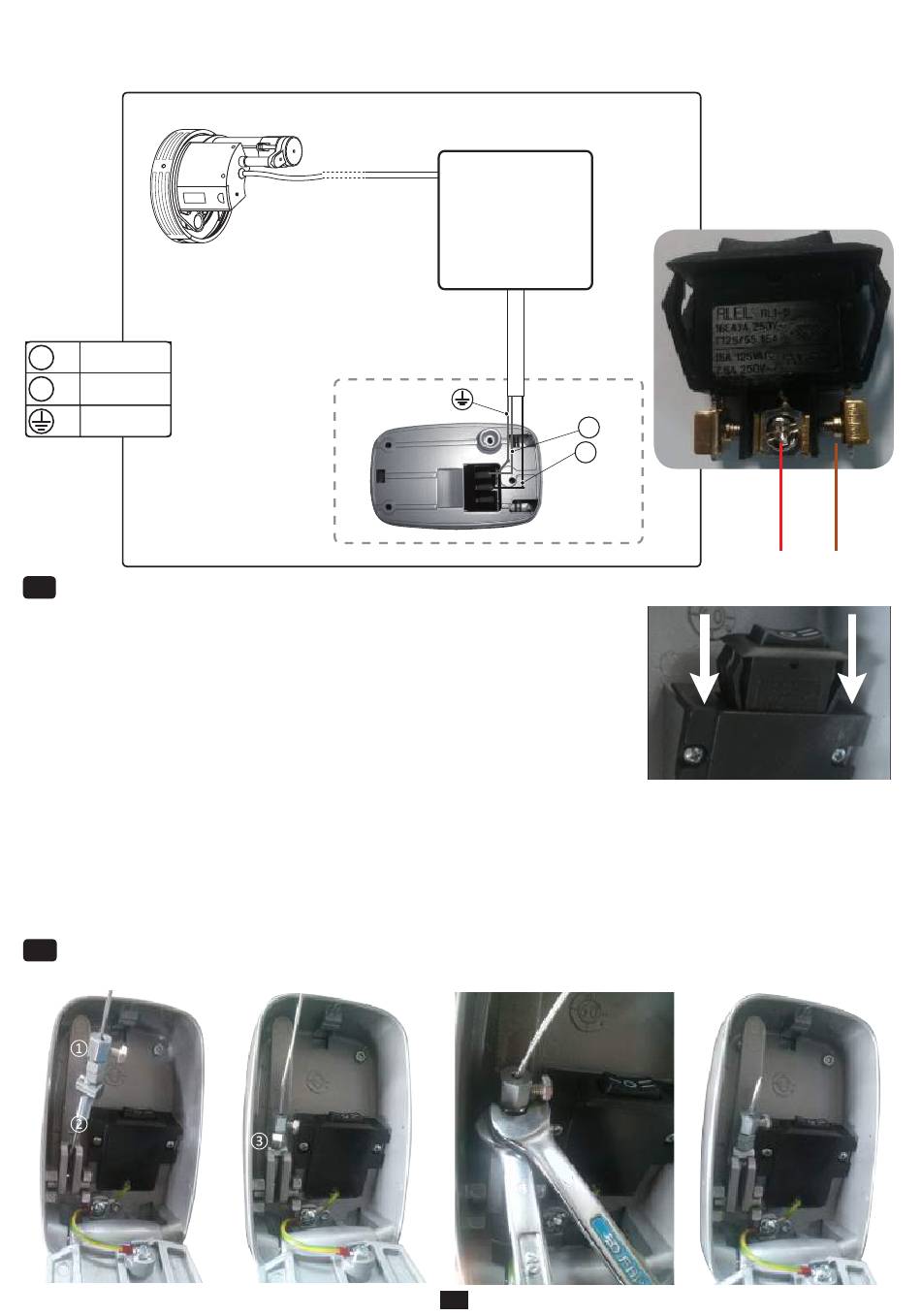

4.B - With control boxes
Connect the power cables on the switch
Central motor
2
Red
3
Braun
PE
Green/Yellow
i
Refer to the instruction sheet of the control box.
5 - Clip the switch on its bracket. CAUTION: Do not pinch or damage wires.
6 - Screw the bracket to the box with 2 screws provided for this purpose (⑦) to a torque of 2 Nm.
4.3 Mounting of the declutching
1 - Position the declutching lever
2 - Position the wire-strainer on the cable.
3 - Position the wire-strainer into the declutching lever
4 - Tighten the declutching cable by hand until resistance is felt without declutching the motor.
5 - Tighten the M4 screws from cable clamp to couple 3,2Nm
6 - Having achieved 3 declutching, take up the play created using the nuts of the wire-strainer, still without declutching the motor.
7 - Cut the declutching cable to 2cm of from the wire-strainer.
i
If necessary, it is possible to tighten the declutching cable reproducing step 6 above.
Automation box
⑥
⑤
5 /6
2
3
2 3
2 3
⑦
