Electrical Wiring - Simu 5124491A Instruction

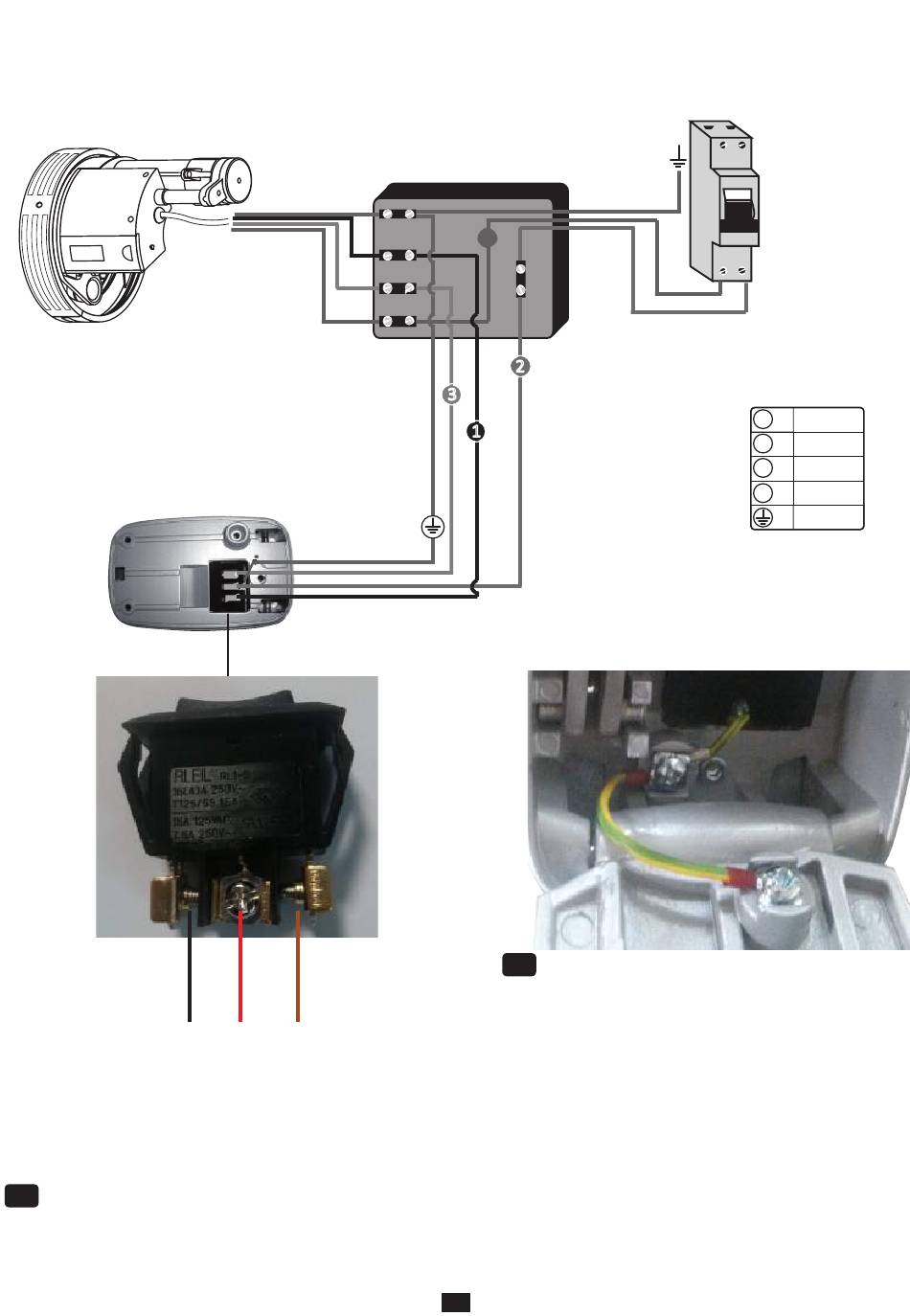

4- Electrical Wiring

4.A - With motor
5
Connect the power cables on the switch
i
If we want to reverse the up and down of the box, return to §4.A and reverse the wire of terminals 1 and 3 of the switch.
1 2 3
1 2 3
4
❷ 1
❸ 2
❶ 3
i
Do not fully loosen the ground screw to avoid losing
the connection.
4 /6
230 V 50Hz
220 V 60Hz
120 V 60Hz
1
Black
2
Red
3
Braun
4
Blue
PE
Green/Yellow
