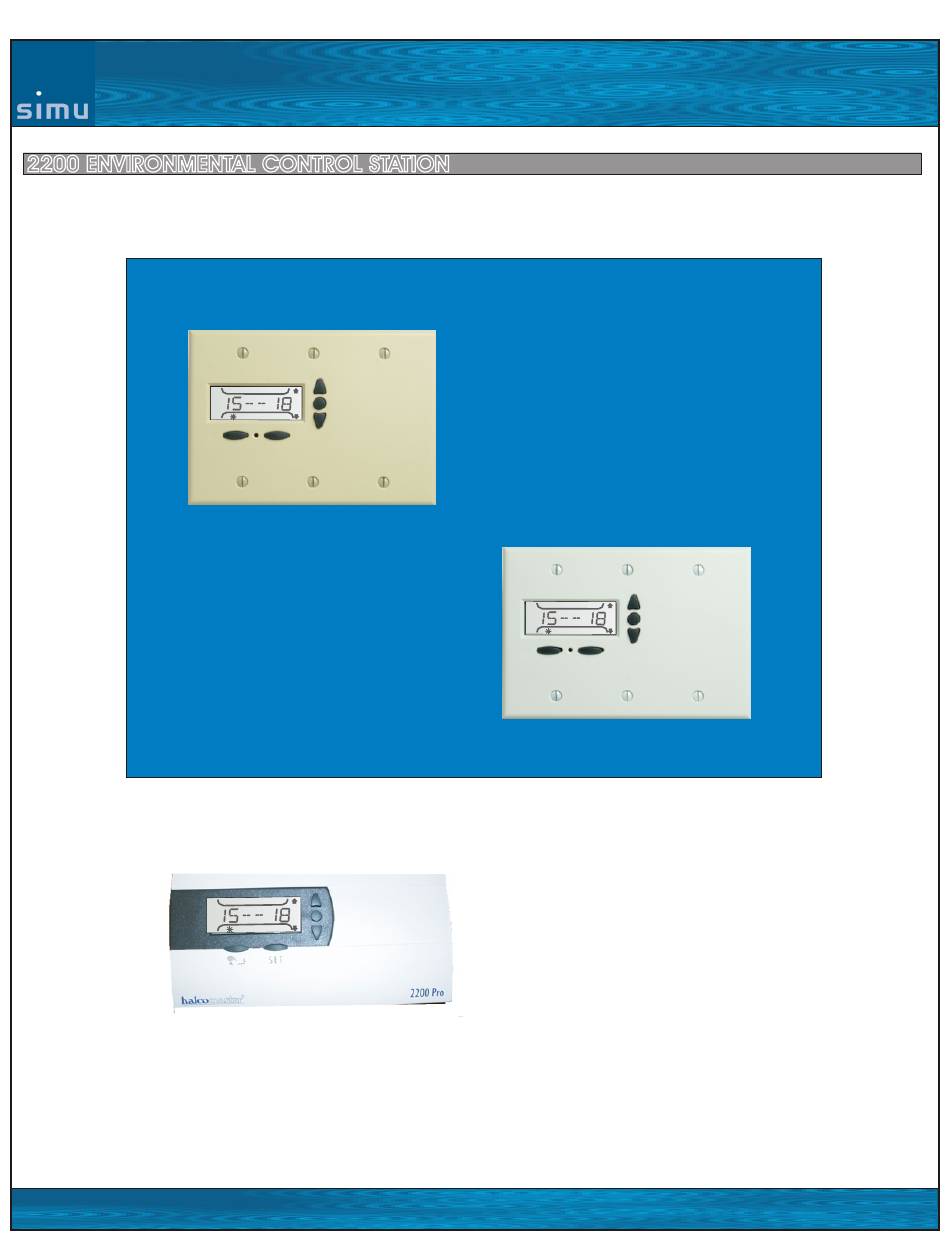

- Page 1 2200 PRO 2200 PRO lx klx k lx klx k klx klx...
-
Page 2: Table Of Contents
2200 PRO 2200 PRO 1. Introduction........................2. Definition of Terms......................3. Control Buttons........................ 4. LCD Display........................5. Normal Operation......................6. Programming........................6.1 Sun Function......................6.2 Temperature Function....................6.3 Wind Function......................6.4 Run Time........................6.5 Tilt Run Time......................7. Special Functions...................... - Page 3 2200 PRO 2200 PRO Welcome to the world of convenience and comfort. The 2200 line offers convenient built in push buttons and automatic control with a wide array of advanced sensors including sun, wind, rain, and temperature. The 2200 will automatically respond to changing light and temperature to maintain your desired comfort level and monitor wind and rain sensors to provide automatic protection for your window covering.
-
Page 4: Run Time
2200 PRO 2200 PRO 1. Delay Time Only used in automatic functions such as the sun. The time length a condition must be met before the control reacts. (Min. 1minute - Max. 60 minutes) 2. Run Time The length of time the 2200 will power the motor when it executes a command. - Page 5 2200 PRO 2200 PRO 1 = UP 2 = STOP 3 = DOWN 4 = SET 5 = RESET 6 = AUTOMATIC OPERATION/ MANUAL OPERATION SELECT The 2200 display normally shows actual measured weather conditions. Left* = Sun light in klx...
- Page 6 2200 PRO 2200 PRO The 2200 can be set in manual or automatic mode to activate the desired control options. The following table list which functions are active in automatic or manual mode and the level of priority. A command from a higher priority source will override a lower priority command.
- Page 7 2200 PRO 2200 PRO Sun - (automatic mode only) The sun function has the lowest priority. If the measured light level exceeds the programmed light threshold for longer than the sun down delay time and the 2200 thinks the window covering is up (solid up arrow) the 2200 will lower the window covering. The sun symbol will be displayed and the down arrow will blink, indicating an active down command.
-
Page 8: Sun Function
2200 PRO 2200 PRO 6.1 Sun Function - Enter the programming mode by pressing the set button (4) for 3 seconds. The screen (Fig. 2) to the right will appear. Use the up (1) or down (3) buttons to select the sun symbol (blinking) Fig. -
Page 9: Wind Function
2200 PRO 2200 PRO Press the set button (4) and the temperature threshold value will appear (Fig. 9). You can adjust this value bu pressing the up (1) or down (3) buttons. Fig. 9 Press the set button (4) to save the programmed temperature values and return to the programming screen (Fig. - Page 10 2200 PRO 2200 PRO 6.4 Run Time - Enter the programming mode by pressing the set button (4) for 3 seconds. The screen (Fig. 15) to the right will appear. Use the up (1) and down (3) buttons to select the run time symbol (blinking).
-
Page 11: Non-Programable Inputs
2200 PRO 2200 PRO 7.1 Non-Programable Inputs Input i1: For external control up via a continuous pressure, potential free input. Input i2: For external control down via a continuous pressure, potential free input. Both inputs are to allow control of the 2200 via external dry contacts from devices such as clocks, security systems, home automation systems, fire alarm systems, etc... -
Page 12: Test Mode
2200 PRO 2200 PRO 7.3 Test Mode - To enter test mode press and hold the stop button (2) and press the auto/manual button (6) then release both. The test screen (Fig. 20) will appear and after 2 seconds the unit will go into test mode (Fig. -
Page 13: Trouble Shooting
2200 PRO 2200 PRO 2200 PRO 2200 PRO 8.1 Wind - If no wind speed is indicated when the anemometer is turning (Fig. 24) or if the wind error screen (Fig. 25) appears when the anemometer is turning: Fig. 24 -Check the connection and wiring to the anemometer. - Page 14 2200 PRO 2200 PRO If unit was just in manual mode, confirm the 2200 does not believe the window coving is in the correct position (solid arrow in correct direction). Press the set button for less than one second and make note of the programmed threshold values that flash on the screen for 3 seconds.
-
Page 15: Wind
2200 PRO 2200 PRO Solar Threshold 15klx Delay Time Up 10 minutes Delay Time Down 2 minutes Wind Threshold 18 MPH Delay Time UP 2 seconds Delay Release Time 8 minutes Wind Test 0 (off) Temperature Threshold 68 F Function... -
Page 16: Sun
2200 PRO 2200 PRO Supply Voltage 120 VAC 60 Hz Fuse 4 Amp Slow Blow Relay Contacts 250 VAC 10 Amps Operating Temperature (control) +32 to +120 F (0 to +50 C) Power Consumption Max. 1.5 VA (Plus power of motor connected) Dimensions (recessed mount - H x W x D) 4.5”... - Page 17 2200 PRO 2200 PRO...
- Page 18 2200 PRO 2200 PRO Low Voltage Connections 120 VAC Connections 2200-WM 2200-LO WIND SENSOR SUN SENSOR Jumper 2400-RM RAIN SENSOR 120 VAC Connections Ground (Green) Hot Power L1 (Black) Common N (White) Motor Power to Ind. Switch Motor Direction (Red/Black)
- Page 19 2200 PRO 2200 PRO Low Voltage Connections 120 VAC Connections 2200-WM 2200-LO WIND SENSOR SUN SENSOR Jumper 2400-RM RAIN SENSOR 120 VAC Connections Ground (Green) Hot Power L1 (Black) Common N (White) Motor Power to Ind. Switch Motor Direction (Red/Black)
- Page 20 2200 PRO 2200 PRO 2400-RM...
