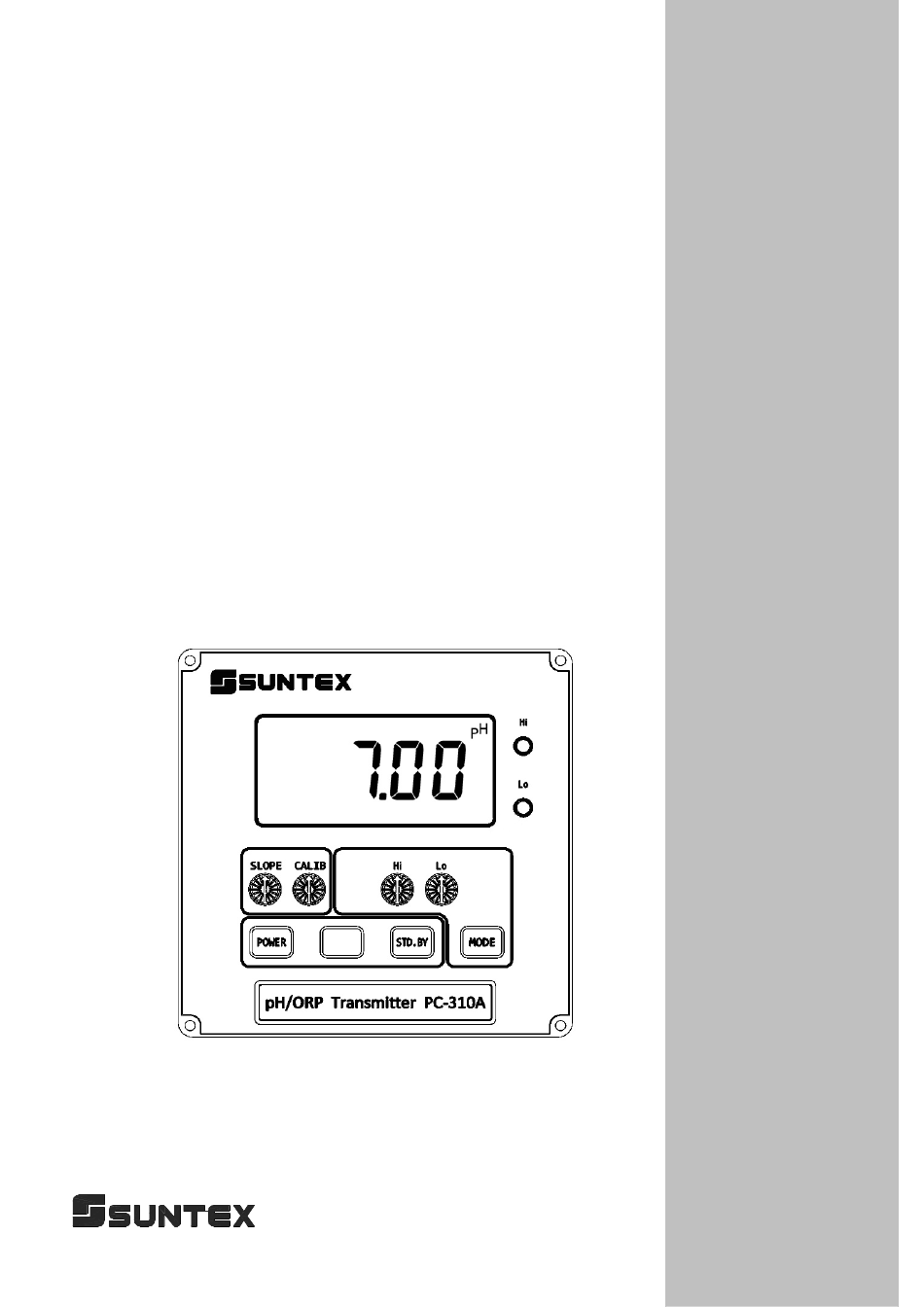

  • Page 1 PC-300A Operation Series Manual Microprocessor pH/ORP Transmitter...

  • Page 2: Table Of Contents

    CONTENTS Precautions for installation Specifications..........................1 Assembly and installation 2.1 Transmitter installation......................2 2.2 Illustration of panel mounting....................2 2.3 Assembly of electrode and housing..................3 2.3.1 Cable setup........................3 2.3.2 Assembly of immersive holder and junction box 8-09-5+PP-100A (Optional)...3 2.3.3 Illustration of PP protective holder and L-shaped holder support base......5 2.4 Illustration and description of the round junction box............6 2.5 Illustration and description of the square junction box............9 Wiring...

  • Page 3: Precautions For Installation

    Thank you for purchasing Suntex products. In order to improve and enhance the transmitter’s function, Suntex reserves the right to modify the contents and icon display of the product. The actual situation is subject to the instrument without notice. The operation manual is only provided for function and installation description, Suntex Instruments Co., Ltd.

  • Page 4: Specifications

    1. Specification PC-310A PC-320A PH-300T Model pH/ORP Measurement modes 0.00~14.00 pH -1999~1999 mV Ranges － TEMP 0.01pH Resolutions － TEMP ±0.01pH (±1 Digit) ±0.1% (±1 Digit) Accuracy － TEMP PT1K Auto Temp Comp Auto Temperature NTC30K Auto Temp Comp (optional) (optional) Compensation Temp Comp.

  • Page 5: Assembly And Installation

    2. Assembly and installation 2.1 Transmitter installation Prepare a square hole of 135mm x 135mm on the panel box, and then insert the transmitter directly into the panel box. Fit the transmitter with brackets and fasten them with screwdriver. 2.2 Illustration of panel mounting 135 mm 135 mm Front view...

  • Page 6: Assembly Of Electrode And Housing

    2.3 Assembly of electrode and housing 2.3.1 Cable set-up Set-up diagram of coaxial cable: Metal coaxial shield Follow the left set-up illustration. The black conductive rubber covering on the coaxial inner should be removed. Transparent coaxial inner (remove the conductive rubber) a.
  • Page 7 1. Insert the electrode (H) through PP Electrode Protective Housing (G) 2. Rinse the electrode (H) properly so that it can be easily passed through Rubber electrode holder (I), with about 5cm left below. 3. Install the prepared Rubber electrode holder (I) into PP Electrode Protective Holder (G) and fix PP pipe protective cover (J) tightly.

  • Page 8: Illustration Of Pp Protective Holder And L-Shaped Holder Support Base

    1. Fix the holder fixed plate (C) into the L-shaped support base (D) 2. Fix the U-shaped clamp (A) into immersive holder (B) 3. Combine abovementioned items together by screwing them up with plastic screws (E) 2.3.3 Illustration of PP protective holder and L-shaped holder support base 110mm 28mm 58.5mm...

  • Page 9: Illustration And Description Of The Round Junction Box

    2.4 Illustration and description of the round junction box 2-wire distributing system: Note: It is necessary to make REF and SG short-circuited as 2-wire distribution Transparent system is applied (with a built-in Shield jumper between them). Green w/o a temp. probe ...
  • Page 10 Note: 1. Extension cable; Order Number: 7202-F94009-BK or 7202-RG-58 (1) Select RG-58 if temperature probe is not used. (Order No.: 7202-RG-58) (2) Select F94009-BK if temperature probe is used. (Order No.: 7202-F94009-BK) 2. As temperature probe 8-26-3 (NTC30K) or 8-26-8 (PT1K) is used for two-wire distribution, the black wire should be forbidden.
  • Page 11 Three-wire distributing system Labels on round junction box Terminals on transmitter Terminal OUT terminals IN terminals (7202-F94009-BK) Coaxial inner from sensor Coaxial inner GLASS Green wire from temp. probe + black Coaxial shield wire from temp. probe (SG probe) Coaxial shield from sensor Green wire Red wire from temp.

  • Page 12: Illustration And Description Of The Square Junction Box

    2.5 Illustration and description of the square junction box 2-wire distributing system: Note: It is necessary to make REF and SG short-circuited as 2-wire distribution Transparent system is applied (with a built-in Shield jumper between them). Green Transparent Transparent Shield Shield Green Green...
  • Page 13 Note: 1. Extension cable; Order Number: 7202-F94009-BK or 7202-RG-58 (1) Select RG-58 if temperature probe is not used. (Order No.: 7202-RG-58) (2) Select F94009-BK if temperature probe is used. (Order No.: 7202-F94009-BK) 2. As temperature probe 8-26-3 (NTC30K) or 8-26-8 (PT1K) is used for two-wire distribution, the black wire should be forbidden.
  • Page 14 Three-wire distributing system Labels on round junction box OUT terminals Terminals on transmitter IN terminals Terminal No. (7202-F94009-BK) Coaxial inner from sensor GLASS (1) Coaxial inner GLASS Coaxial shield from sensor REF (2) Coaxial shield Green wire from temp. probe + black SG (3) Green wire wire from temp.

  • Page 15: Wiring

    3. Wiring 3.1 Illustration of rear panel Note 1: Unused cable glands should be plugged with rubber plugs. Note 2: Put the pH or ORP sticker once measurement mode is selected for convenience of recognition.

  • Page 16: Descriptions Of Terminal Function

    3.2 Descriptions of terminal function Connecting to the coaxial inner GLASS (transparent wire) of pH/ORP electrode signal wire Connecting to the coaxial shield (net wire) GLASS of pH/ORP electrode signal wire 1. SG and REF should be short circuited ＋12V with a jumper if two-wire system is 2 Wires used.

  • Page 17: Wiring Descriptions Of Transmitter

    3.3 Wiring descriptions of transmitter 3.3.1 Illustration of electrical connection 100~240VAC Transmitter Relay L1 Relay H1 Relay H2 Relay L2 100~240VAC Surge absorber Surge absorber External relay Surge absorber Dosing pump Surge absorber External relay Surge absorber Dosing pump Surge absorber External relay Surge absorber Dosing pump...

  • Page 18: Wiring Of Atc Probe And Fixed Temperature Compensation

    3.3.2 Wiring of ATC probe and fixed temperature compensation To ATC probe To solution ground With a jumper To ATC probe Temperature compensation Temperature compensation with resistance at 25°C (PC-310A/PC-320A) (PC-310A/PC-320A/PC-350A) MTC (PC-350A) R value for fixed temperature compensation (PC-310A/PC-320A) °...

  • Page 19: Illustration Of Accessorial Transmitter Ph-300T (Optional)

    3.4 Installation of accessorial transmitter PH-300T (Optional) Accessorial pH/ORP transmitter, PH-300T, is mainly installed on the electrode protective pipe, but it also can be applied to wall mounting or pipe mounting. For long distance transmission (100m), for example, if the distance between a transmitter and an electrode overweighs 30 meter long, it is recommended that accessorial transmitter PH-300T should be used to avoid the attenuation of electrode signal which also leads to convenience of onsite observation, measurement, and calibration.

  • Page 20: Connection Of Transmitter And Accessorial Transmitter Ph-300T

    3.5 Connection of transmitter and accessorial transmitter PH-300T A. Connect the GLASS point of transmitter PH-300T’s terminal to the electrode coaxial inner. (Note: Remove the black conductive rubber); connect the REF point of transmitter PH-300T’s terminal to the electrode coaxial shield. B.

  • Page 21: Wiring Description Of Ph-300T

    3.6 Wiring description of PH-300T 2-wire distribution system: 紅 Shield Green Green Shield Transparent Transparent Black (NC) Transparent Shield (Short-circuited) pH/ORP Temperature sensor probe 2-wire distribution system pH/ORP sensor & PH-300T PH-300T Coaxial 4-core wire Terminals on temp. probe terminals terminals (7202-F94009-BK) transmitter...
  • Page 22 3-wire distribution system: Shield Black Co axial 4-core wire: Transparent 7202-F94009-BK Shield Transparent Transparent Shield pH/ORP Temperature probe sensor 3-wire distribution system pH/ORP sensor & PH-300T PH-300T Coaxial 4-core wire Terminals on temp. probe terminals terminals (7202-F94009-BK) transmitter Coaxial inner GLASS Coaxial inner GLASS...

  • Page 23: Calibration Steps After Installation Of Ph-300T

    3.7 Calibration steps after installation of pH-300T Note: 1. Make sure that all wiring is connected to terminals correctly. 2. Make sure that a switch to pH mode or ORP mode is set properly. 3. It is necessary to connect a solution ground on SG terminal or make SG and REF short circuited while installation.

  • Page 24: Illustration Of Online Ph/Orp Measurement System (Optional)

    3.8 Illustration of Online pH/ORP measurement system (Optional) A Immersion system in open basin 7202-PP-100A Immersive Protection Housing Pipe B Measurement in very variable water 7202-PP-100A + 8-SF01 Sensor Float levels, or lakes with a float C Flow-through system 8-TF03 Sensor Flow-through Chamber D 1/2”...

  • Page 25: Configuration

    4. Configuration 4.1 Illustration of front panel of PC-310A : Power switch key. RELAY and analog output are not working under OFF status; while, RELAY and analog output are working under ON status. : Calibration key. After pressing it to enter calibration mode, RELAY function is not working even though the reading is fluctuating and also analog output signal will remain as what it was before HOLD status.
  • Page 26 SLOPE knob: pH electrode slope adjustment knob, usually at pH4.00 or pH10.00 (invalid for ORP measurement) Note: When STDBY sign or pH sign is twinkling, it is valid to turn SLOPE knob. It is invalid besides that in case that measuring values may be adjusted at random. : Under measurement mode, a short press is to select Hi/Lo set point control;...

  • Page 27: Illustration Of Front Panel Of Pc-320A

    4.2 Illustration of front panel of PC-320A : Add setup of H2 & L2. Descriptions for other functions are the same as PC-310A. How to press: pH/mV → H1 → L1 → H2 → L 2 → pH/mV H1,H2,L1,L2 knob: Hi/Lo set point control knob H1 is for upper point setup in high set-point.

  • Page 28: Block Diagram Of Pc-300A

    4.3 Block diagram of PC-300A M easurem ent m ode Turn O N /O FF D isplay C alibration m ode D isplay & D isplay & D isplay & D isplay & setup of H 1 setup of L1 setup of H 2 setup of L 2 PC-320A Only...

  • Page 29: Calibration

    5. Calibration: 5.1 Calibration of pH electrode: 1. Switch to pH measurement mode. 2. Press to enter calibration mode. It shows current measuring value and STDBY sign with pH sign twinkling on display. At the moment, relay is turned off, analog output will remain what it was prior to HOLD status and start calibration.

  • Page 30: Inspection Of Orp Electrode

    (2) If a sign “----“ on top of display and measuring value are shown in turn, it suggests that CALIB knob has reached a mechanical boundary; nevertheless, if a sign “----“ on bottom of display and measuring value are shown in turn, it suggests that SLOPE knob has reached a mechanical boundary.
  • Page 31 5. Press (Note 1) and wait until “STDBY” sign disappears and mV sign ceases twinkling, which means calibration is complete and calibration data is stored. It will go back to measurement mode automatically with relay & analog output on and ready for new measurement.

  • Page 32: Setting

    6. Setting 6.1 RELAY control setup: 1. Press to enter Hi set point control and it will show “H1” twinkling on display. At the moment, analog output will remain what it was prior to HOLD status, RELAY ceases working but Hi & Lo indicators remains working. 2.

  • Page 33: Analog Output Setting And Relay Test

    6.2 Analog output setting and RELAY test 1. Under measurement mode, an extended press to and release until it shows 4mA on display. It goes analog output of 4mA at the moment. 2. Press and it shows 20mA on display. It goes analog output of 20mA at the moment. 3.
  • Page 34 6. Press and it will show oFF & L1 signs on display. L1 RELAY ceases working and Lo indicator is being turned off at the moment. 7. Press to return measurement mode. 8. Regarding the setting of H2 & L2 for PC-320A, it is the same as above H1 & L1. Note: It will automatically go back to measurement mode in 20 minutes if no operation under this mode.

  • Page 35: Maintenance

    7. Maintenance Generally speaking, under normal operation, the transmitter needs no maintenance except regular cleaning and calibration of the electrode to ensure accurate and stable measurement and system operation. The cleaning cycle for the electrode depends on the pollution degree of the measurement sample. Normally, it is recommended to make weekly cleaning.
  • Page 36 SUNTEX INSTRUMENTS CO., L TD. 13F, No. 31, Lane 169, Kangning St., Xizhi Dist., New Taipei City, Taiwan (R.O.C.) Tel: 886-2-2695-9688 Fax: 886-2-2695-9693 www.suntex.com.tw/en e-mail: suntex@ms1.hinet.net 5040E PC-300A/Technical data subject to alternations/ Quality Systems ISO 9001/201812...
