PEUGEOT PAS TD
- MODEL : PG-PAS-161019
- DATE : 2020.09.04

Advertisement

loading
Need help?

Need help?

Do you have a question about the PEUGEOT PAS TD and is the answer not in the manual?

Questions and answers

Related Manuals for GU Electronic PEUGEOT PAS TD

Summary of Contents for GU Electronic PEUGEOT PAS TD

  • Page 1 PEUGEOT PAS TD - MODEL : PG-PAS-161019 - DATE : 2020.09.04...
  • Page 2 1. Main Spec 2. Block Diagram 3. Dimension 4. External Appearance 5. Connector Pin Assignment 6. Product Composition 7. DIP S/W Setting 8. Mode Change 9. Touch Control 10. OSD(On Screen Display) Control 11. Install Manual 12. Q & A GU Electronic...
  • Page 3 - Input Power : 8VDC ~ 24VDC - Consumption Power : 12Watt, Max 4. Switch Input mode - Possible to select CAR model while switching mode by DIP S/W - By button on the Commander in the car via CAN GU Electronic...

  • Page 4: Block Diagram

    2. Block Diagram INTERFACE COMMAND EEPROM SYSTEM RECEIVER LVDS LVDS LVDS LVDS RELAY NAVIGATION LVDS Scaler SYSTEM (PIP) CVBS1 CVBS2 COMPOSITE FRONT CAMERA COMPOSITE REAR CAMERA REAR CAMERA POWER TFT-LCD LVDS GU Electronic...
  • Page 5 3. Dimension 166mm * 83mm * 22mm 166mm 22mm 83mm * This can change under manufacturer’s circumstance GU Electronic...

  • Page 6: External Appearance

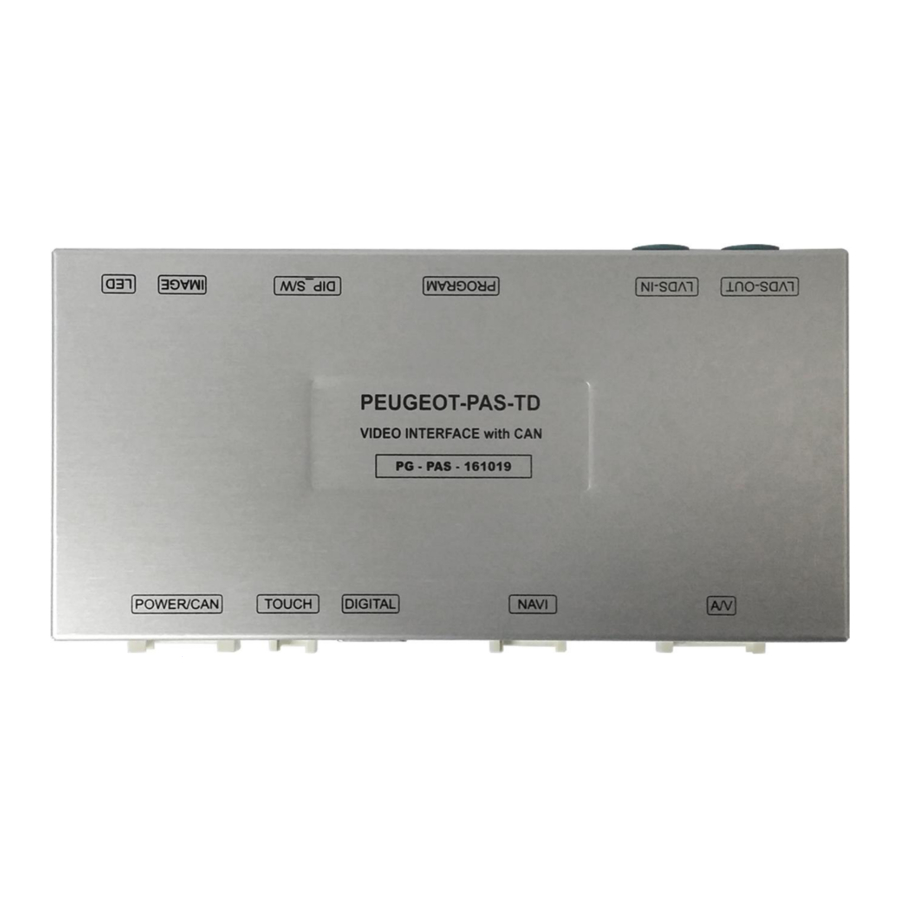

    4. External Appearance LVDS-IN LVDS-OUT IMAGE DIP S/W PROGRAM NAVI TOUCH Audio/Video POWER/CAN Digital GU Electronic...
  • Page 7 4. External Appearance LVDS-OUT LVDS-IN PROGRAM DIP S/W IMAGE NAVI TOUCH Audio/Video POWER/CAN Digital GU Electronic...

  • Page 8: Connector Pin Assignment

    13. Front-VCC (Red) 6. CAN1-H (Purple) ⑥ DVB-T-IR 14. Mode (Green) 7. CAN2-L (Blue) ⑦ DVD-IR 15. GND (Black) 8. CAN2-H (Red) 16. GND (Black) *Touch Connect ① ② ③ ④ ① Y- ② X- ③ Y+ ④ X+ GU Electronic...

  • Page 9: Product Composition

    6. Product Composition Interface 1 EA A/V Cable (24pin) 1 EA Power Cable 1 EA OSD Board 1 EA RGB NAVI Cable(7pin) 1 EA Touch convertor Cable(KD-900) 1 EA LVDS Cable 1 EA GU Electronic...
  • Page 10 6. Product Composition * CarPlay Set Sales(option) – KPLAY AUX Cable 1 EA Interface 1 EA Power Cable 1 EA HDMI Cable 1 EA Bluetooth / Wifi Antenna 2EA Microphone 1 EA ACC Board 1 EA GU Electronic...
  • Page 11 6. Product Composition * CarPlay(NV17) Set Sales(option) AUX Cable 1 EA CarPlay Main 1 EA Power Cable 1 EA HDMI Cable 1 EA ACC Board 1 EA Microphone 1 EA GU Electronic...

  • Page 12: Dip S/W Setting

    ON : Not Used NAVI Peugeot 208, 2008 OFF : Used ON : Not Used DVB-T(AV1) OFF : Used ON : Not Used DVD(AV2) OFF : Used Peugeot 308 Citroen C4 CACTUS Citroen C4 PICASSO CAR type SEL Right Picture GU Electronic...

  • Page 13: Mode Change

    8. Mode Change Mode Change StreeingWheel • To use the Streeing button. You must select the “ON" in the menu. • Select "OFF" when not in use. mode change(1 second) GU Electronic...
  • Page 14 8. Mode Change Mode Change OEM Button 208 model 308 model • To use the OEM button. You must select the “ON" in the menu. • Select "OFF" when not in use. mode change(1 second) GU Electronic...

  • Page 15: Touch Control

    Touch control - Calibration Press and hold for more than 11 seconds on NAVI, DVB-T, DVD screen. (Note that it only works the first time after switching screens) + Touch according to the shape coordinates. OSD menu -> Utility -> Calibration GU Electronic...
  • Page 16 9. Touch Control DVB-T/DVD Control DVB-T Press Icon GU Electronic...
  • Page 17 Press to display when there is no OSD screen. When OSD screen is on, press it to EXIT or OFF. Item Selection, Value Selection Item up Increase selected value DOWN Item down Decrease selected value Mode State First Menu Second Menu Third Menu GU Electronic...
  • Page 18 NAVI-RGB Setting the Connected NAVI Model ELT_DVBT20 DVB-T(DMB) Setting the Connected DVB-T Model ELT_980XU Slim Config Setting the Connected DVD Model AVM VIDEO RearCam Setting the Connected RearCam Model Reset Execute Reset to default value of Config menu GU Electronic...
  • Page 19 In the OEM, NAVI, AV2, FRONT, AV Out and REAR modes, the output of AV OUT is set to AV2. In the OEM, NAVI, FRONT, and USER REAR modes, output the output of AV OUT to the final screen. GU Electronic...
  • Page 20 UI DVB-T (DMB) Option Disable feature DVD device control UI output function UI DVD Disable feature Set up manufacturer of FINE woodworking device for UART NAVI COM Touch use Do not use features. Reset Execute Option Menu all Reset GU Electronic...
  • Page 21 10. OSD(On Screen Display) Control OSD Option -> FrontCam-RcvOpt Front Camera Auto Mode 0 second = FrontCam-RcvOpt menu OFF 1~30 second = FrontCam-RcvOpt menu ON & time control NAVI NAVI REAR FRONT AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) Select time of display 1~30 second GU Electronic...
  • Page 22 Adjust the value of contrast Saturation Adjust the value of Saturation Image Adjust the value of Hue Sharpness Adjust the value of Sharpness Reset Excute Option Menu all Reset << Brightness >> << Contrast >> << Saturation >> GU Electronic...
  • Page 23 Output screen horizontal Horizontal movement Output screen vertical Vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset GU Electronic...
  • Page 24 Show Parking Line Line Display Do not show Parking Line Warnings Lang Set warning text language Parking Moving a parking line Horizontal horizontally Vertical Moving a parking line vertically Transparency Parking line transparency Reset Parking menu all reset GU Electronic...
  • Page 25 10. OSD(On Screen Display) Control OSD Parking – OPS Display On / Off OPS ON Screen OPS OFF Screen OSD Parking – Guide line On / Off Parking Line ON Screen Parking Line OFF Screen GU Electronic...
  • Page 26 10. OSD(On Screen Display) Control OSD Parking – Change warning language GU Electronic...
  • Page 27 Keypad in Horizontal / Vertical menu ※ Pressing this Horizontal / Vertical menu, The OSD screen automatically disappears. Please adjust from the parking line Screen. MENU DOWN Press “UP” button Press “MENU” button Press “SEL” button Press “DOWN” button GU Electronic...
  • Page 28 Third Menu Description Horizontal value OSD Menu Horizontal Shift value Vertical OSD menu vertical Shift OSD Menu Display Time (in value Display Time seconds) value Transparency OSD menu transparency Language OSD menu display language Reset Execute Initialize OSD settings GU Electronic...
  • Page 29 3. Before using IR learning function, select All-Clear to delete existing stored data. 4. Press the remote control button to be used in each ICON once in New Code, press once again in Cfm Code to confirm it is the same and save it. GU Electronic...
  • Page 30 (Check for future upgrades) Last Source : FDSYOOKRX-180209 Software Version Software Month Software Year Special Version National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States Hardware Version PIP model : S3=Sync3, PP=PIP, LV=LVDS Motor model : FD=FORD, BM=BMW, BE=BENZ, MA=MASERATI, LX:LEXUS GU Electronic...
  • Page 31 8. CAN2-H (Red) 7. CAN2-L (Blue) 6. CAN1-H (Purple) 5. CAN1-L (White) 4. Front-Camera Detect (Blue) Roik, Qroi 3. Rear-Camera Detect (Brown) Battery (Yellow) 1. Battery (Yellow) • Select the navigation you want to use from the above items. GU Electronic...
  • Page 32 9. CAN3-L (Green) 8. CAN2-H (Red) 7. CAN2-L (Blue) 6. CAN1-H (Purple) 5. CAN1-L (White) 4. Front-Camera Detect (Blue) 3. Rear-Camera Detect (Brown) Battery (Yellow) 1. Battery (Yellow) • Select the DVB-T you want to use from the above items. GU Electronic...
  • Page 33 9. CAN3-L (Green) 8. CAN2-H (Red) 7. CAN2-L (Blue) 6. CAN1-H (Purple) 5. CAN1-L (White) 4. Front-Camera Detect (Blue) 3. Rear-Camera Detect (Brown) Battery (Yellow) 1. Battery (Yellow) • Select the DVD you want to use from the above items. GU Electronic...
  • Page 34 11. Install Manual 4. Installation External Front Camera Connection FRONT FRONT-POWER (Red) FRONT Power (Red) FRONT Detect (Blue) +12V ON / OFF GU Electronic...
  • Page 35 11. Install Manual 5. Installation External Reverse(Rear) Camera Connection REAR REAR-POWER (Red) REAR Power (Red) +12V FRONT Detect (Brown) GU Electronic...
  • Page 36 11. Install Manual 6. Installation CarPlay - KPLAY * When installing CarPlay, set it to OSD MENU-OPTION-NAV COM-KPLAY. Only iPhone Wireless connection Iphone Smartphone (Android / iphone) Cable connection Microphone 3.5pie aux cable Screen GU Electronic...
  • Page 37 11. Install Manual 7. Installation CarPlay – NV17 * When installing CarPlay, set it to OSD MENU-OPTION-NAV COM-NV17. 3.5pie aux cable Iphone Screen Screen Microphone Screen GU Electronic...
  • Page 38 11. Install Manual 8. Installation CarPlay – APPPLAY * When installing CarPlay, set it to OSD MENU-OPTION-NAV COM-APPPLAY. Iphone Screen Screen Screen GU Electronic...
  • Page 39 2. LVDS cable must be connected correctly according to the manual 3. Insulate the end of wire by using electrical tape 4. The installation should be done by expert 5. GU electronic does not take any responsibility for any problem caused by wrong installation GU Electronic...
