Mennekes AMAXX Installation And Operating Manual

General

Information about the
installation and oper-
ating manual

Intended use

Liability

Symbols in the manual

Installation
and operating
manual

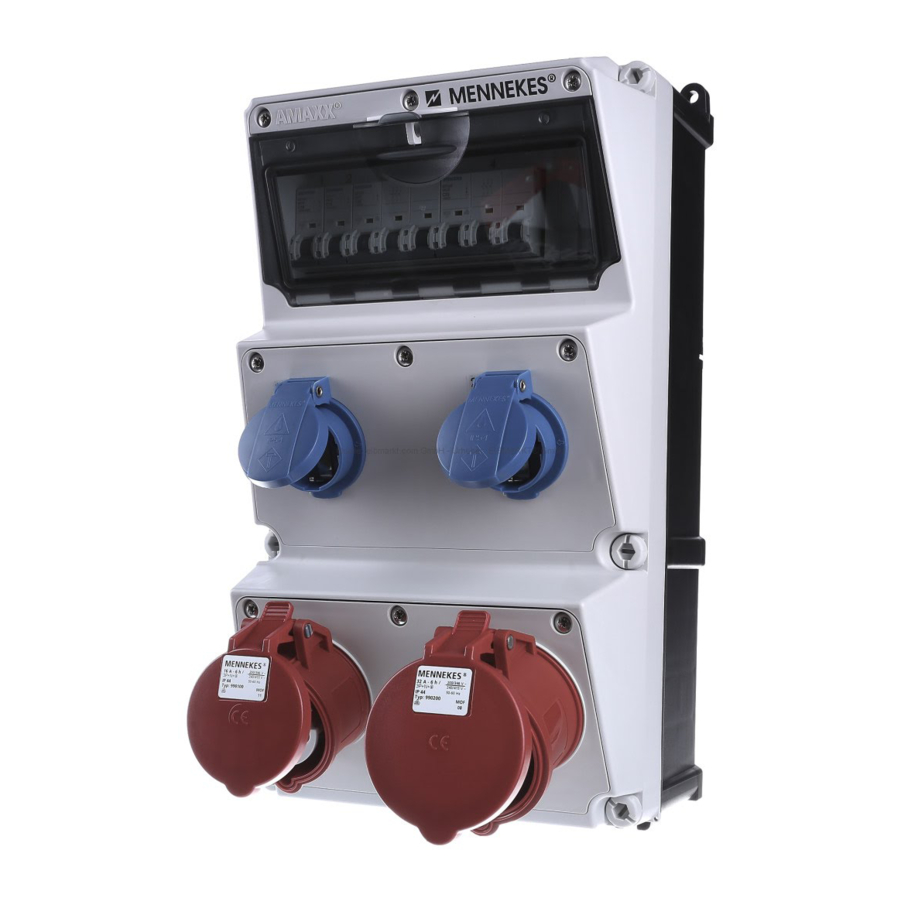

Receptacle combination unit
AMAXX
Read this manual carefully before installation and first use of the unit.
Non-compliance with this manual can lead to severe injuries or damage to the
receptacle combination.
Installation may only be carried out by trained electricians.
After installation, pass the manual on to the user.
The AMAXX receptacle combination can be used as a distribution board for
inside and outside. Depending on the design, the housing corresponds either to
the degree of protection IP44 or IP67.
Protection degree IP44 means protection against:
•
the penetration of particle-type foreign bodies (e.g. sand),
•
contact with tools, wires or similar with a diameter of more than 1 mm,
•
sprayed water from any direction.
The IP44 degree of protection presupposes that the receptacle combination is
mounted vertically to a wall.
We recommend you attach a weather protection shield on IP44 level protected
housing that is subjected to rain outside. You can find weather protection covers
in our catalogue.
Protection degree IP67 means protection against penetration by water with
temporary submersion and dust (total protection).
The receptacle combination is designed for commercial use.
All information and instructions are made while taking into consideration our
current experience and findings, to the best of our knowledge.
We assume no liability for damages caused by non-compliance with this
manual or by independent conversion of the unit.
WARNING!
Identifies safety instructions which, if not complied with, can lead to a risk
of injury or death.
1
GB
