Mennekes LockOUT-LET Wiring Instructions

MENNEKES LockOUT-LET
PIN & SLEEVE INTERLOCKED RECEPTACLE
INFORMATION
LockOUT-LET devices feature a pin &
sleeve receptacle prewired to a load
rated disconnect
receptacle is interlocked requiring the
switch to be in the OFF position to
insert or remove a like rated plug. The
enclosure is rated NEMA 4X;12 for
both indoor and outdoor use.
switch handle has a padlock provision
as a method of compliance to OSHA
Lockout/Tagout Regulations.
TO REMOVE OR REPLACE COVER
Fully loosen screws (do not remove) located in four corners of cover. Pull top of cover away
from bottom box and slide down. To replace cover, reverse above procedure. Slight wiggle of
cover and switch handle may be needed to position cover.
DO NOT FORCE. SWITCH MUST BE IN OFF POSITION TO REPLACE COVER.

MOUNTING

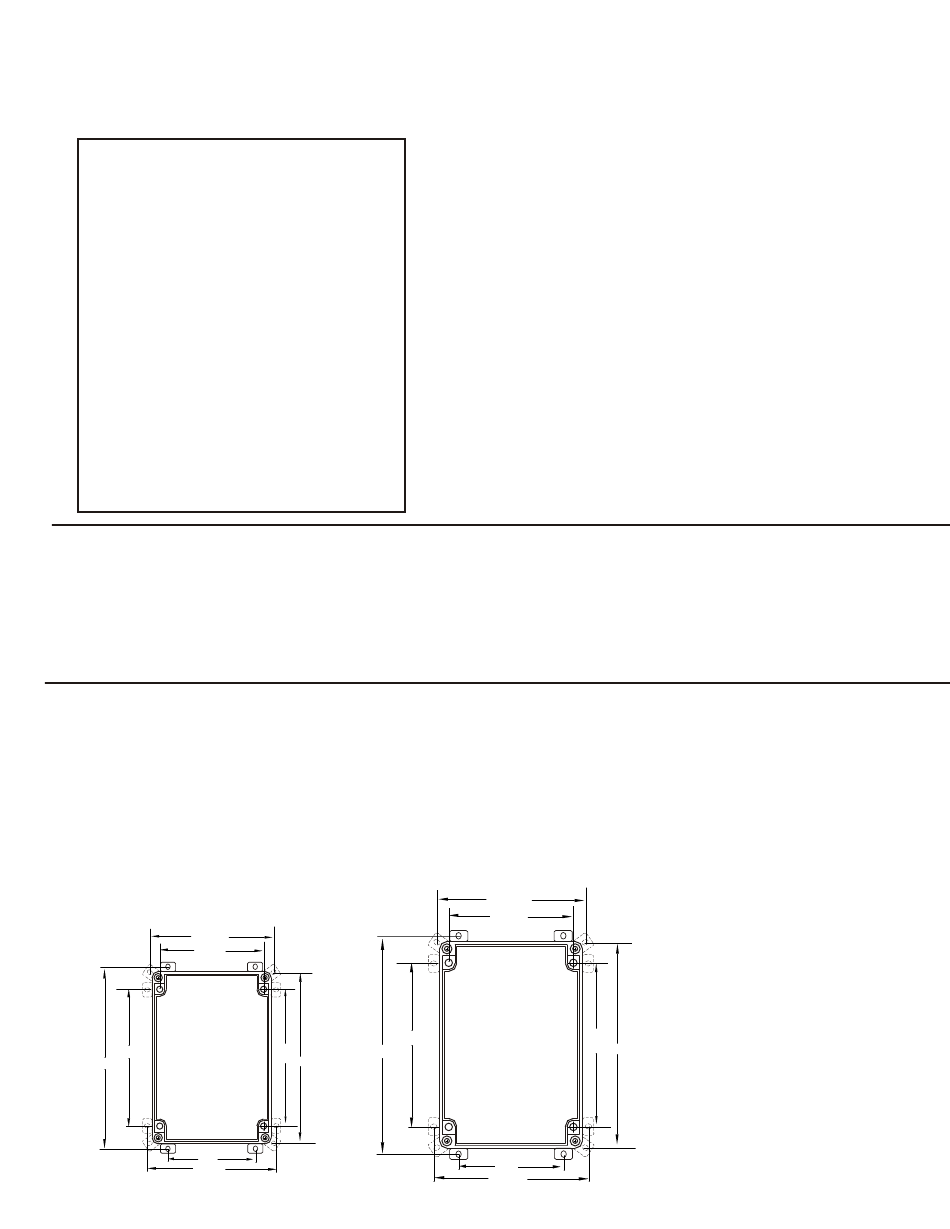

• SEE DIAGRAMS BELOW for mounting dimensions and installation of mounting feet.
• Enclosure can be mounted with either external mounting feet (attach using rear rivets) or
direct mounted through mounting tubes (located near cover rivets in corners).
• Screws recommended for direct mounting: #10.
• Mount unit on a secure flat vertical surface with the receptacle facing down.
• Tighten four cover screws 25 lb-in. DO NOT OVER TORQUE.
30A
7.016"
6.004"
TOP
8.535"
DO NOT MOUNT
11.654"
THROUGH REAR WALL
OF BOX
4.815"
7.593"
READ BEFORE INSTALLING ANY LockOUT-LET DEVICE
WARNING: TURN OFF ALL POWER SUPPLIES TO
NOTICE:
switch. The
NOTICE:
The
NOTICE:
CAUTION:
60A
11.173"
8.858"
14.291"
10.736"
RECEPTACLE BEFORE INSTALLING OR
SERVICING.
Suitable for use on a circuit capable of
delivering not more than 10,000 RMS
symmetrical amperes at the voltage rating of the
receptacle.
Separate overcurrent protection must be
provided.
USE COPPER CONDUCTORS ONLY with a
75° min. insulation rating. Size conductors for
75° ampacity.
UNIT IS NOT GROUNDED. Hubs entering the
enclosure must be electrically connected to a
grounding terminal block.
7.350"
6.339"
TOP
11.496"
13.374"
DO NOT MOUNT
THROUGH REAR WALL
OF BOX
5.150"
8.268"
SEE SEPARATE CONDUIT
CONNECTION AND GROUNDING
INSTRUCTIONS IN GROUND/HUB
KIT.
