Summary of Contents for UNI-T UT377C

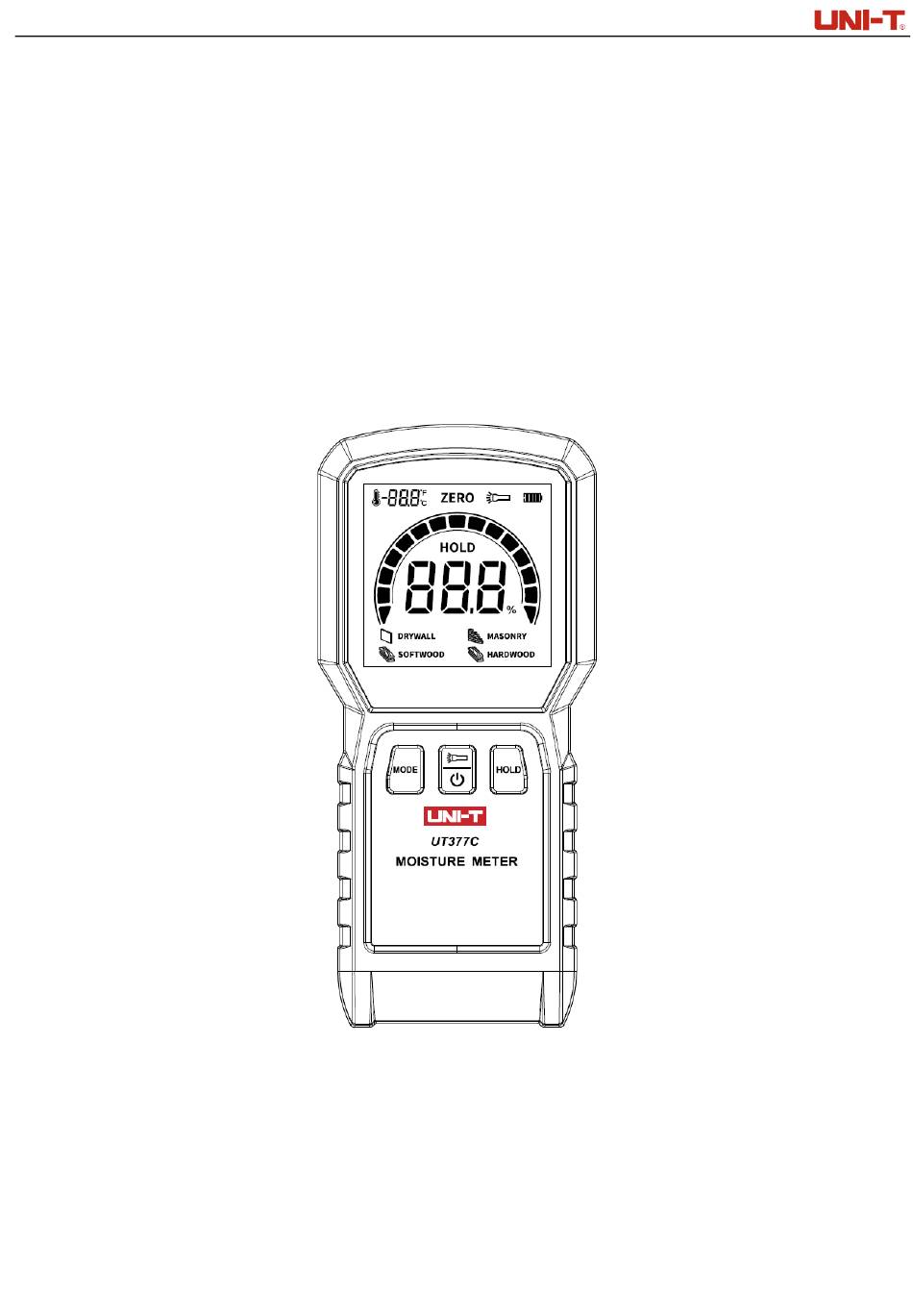

- Page 1 UT377C User Manual UT377C Pinless Moisture Meter User Manual 1 / 11...
- Page 2 UT377C User Manual PREFACE Thank you for purchasing the new UT377C pinless moisture meter . In order to use this product safely and correctly, please read this manual thoroughly, especially the Safety Instructions part. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.
-
Page 3: Table Of Contents
UT377C User Manual Content Introduction ....................... 4 Configurations ....................4 Safety ....................... 5 Functions ......................5 Operations ......................7 Specifications ....................9 3 / 11... -
Page 4: Introduction
UT377C User Manual 1. Introduction UT377C is a Moisture Meter measured in contact or induction way, testing the moisture content without damaging the wood and building materials, with features of high accuracy, reliable performance, undamaged measurement, and etc. It is widely used in the industries of manufacturing, wood processing, architectural decoration, scientific research, quality control, and etc. -
Page 5: Safety
UT377C User Manual 3. Safety Please read the Safety carefully and follow these steps. 1) Avoid any metals existing below the probe during the measurement. 2) Do not press the meter hard or drag it to avoid the sensor surface wear. - Page 6 UT377C User Manual 5. LED Light 6. Sensor 7. Battery Holder 4.2. Display Temperature Display Temperature Value Fahrenheit (℉ ) Centigrade (℃ ) Moisture Content Zero LED Light Battery Status HOLD Indication Simulation Bar 10) Moisture Content Value 11) DRYWALL Indication 12) SOFTWOOD Indication 13) Moisture Content Unit (％)
-
Page 7: Operations
UT377C User Manual 4.3. Buttons Buttons Short Press Long Press Mode Switch Zero Reset MODE Flashlight ON/OFF Power On/Off POWER Data Hold Temperature Unit Switch HOLD 5. Operations 5.1. Power On/Off 1) Power On: Long press POWER button until the screen on. - Page 8 UT377C User Manual Make sure the surface of measured target is free of dust and dirt during the measurement. Repeatedly measure the target to get the average value of moisture content due to its uneven moisture distribution. Avoid nails or others sharp during the measurement of when the device is slid on the surface of measured target checking the moisture content quickly.
-
Page 9: Specifications
UT377C User Manual 5.4. Simulation Bar & Audible Alarm 1) Simulation Bar Color Modes Green Yellow Drywall 0~20% 20~60% >60% Masonry 0~16% 16~52% >52% Softwood 4~14% 14~24% >24% Hardwood 4~12% 12~20% >20% Notes: For furniture, the moisture content is 5%~6% in the low relative moisture area, 10%~11% is acceptable in the high relative moisture area. - Page 10 UT377C User Manual Temperature ℃/℉ -20~70℃ 0.1℃ Unspecified Measurement Sensor Size 50*50mm Minimum 50*50mm Target Size Target Thickness 6~30mm Range Screen EBTN Color Screen Display Simulation Bar √ Green, Yellow, Red Indication Audible Alarm √ Indication √ Flashlight Auto Power √...
- Page 11 6.3. Battery Installation & Replacement Replace the battery as per the following showed: * The contents of this manual are subject to change without prior notice. * Please go to the official Uni-T website https://www.uni-trend.com to get more details, thanks！...
