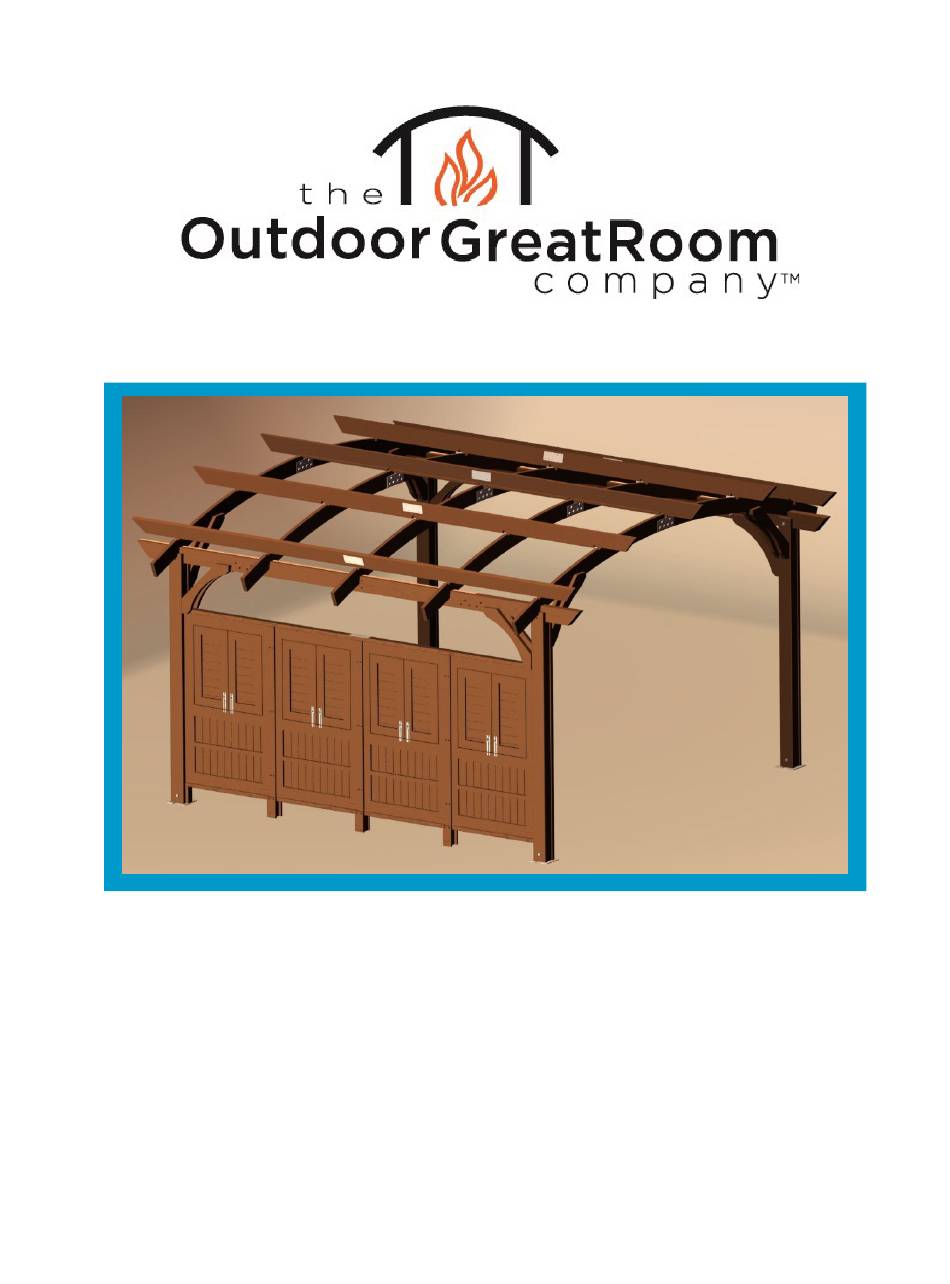

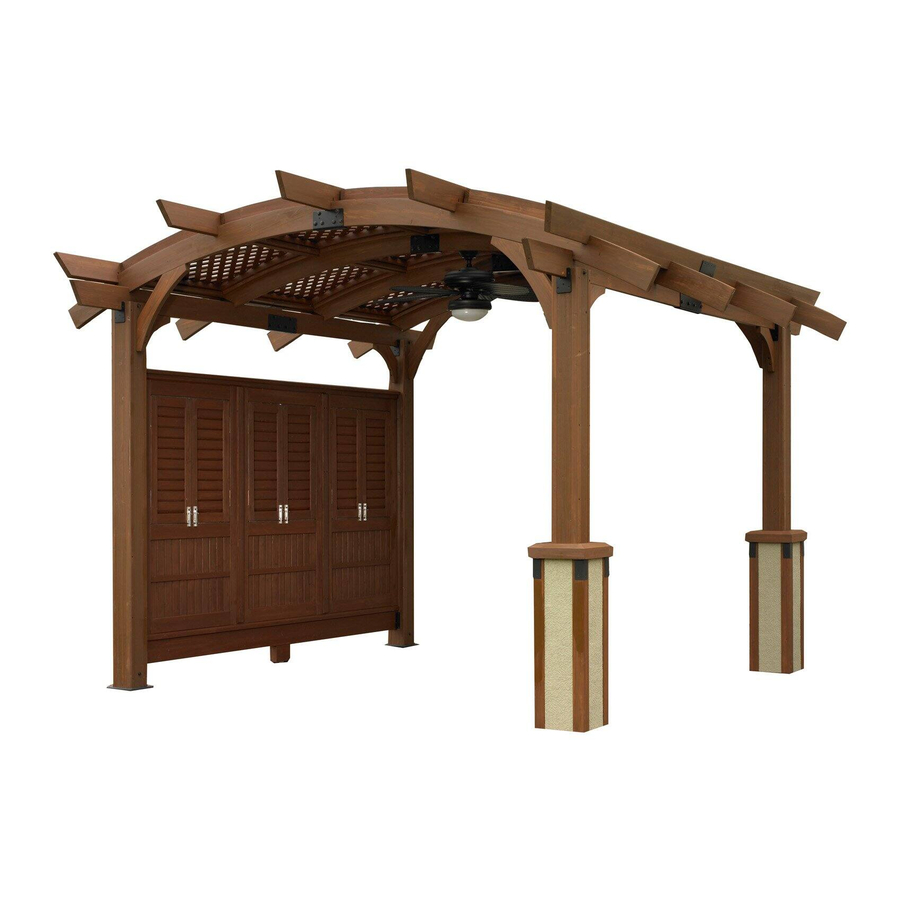

- Page 1 Sonoma Privacy Wall Instructions for Sonoma 12, 16, and 1216 Privacy Walls...
- Page 2 Measuring tape for verifying inside-to-inside post dimension of pergola Pencil Leveling device for checking for square Rubber mallet Disclaimer—The Outdoor GreatRoom Company ® is NOT liable for damage caused by weather or misuse 42006 Sonoma Pergola Privacy wall. REV C 8/29/2016...
- Page 3 IMPORTANT: Before beginning installation verify that pergola columns are square with the ground and that the inside-to-inside distance between them is 108-1/8” for the Sonoma 12, and 145-5/8” for the Sonoma 16 and Sonoma 1216. Also verify the height from the bottom of the column to the underside of the corbels is 67”...
- Page 4 4.Align as shown and insert 1.5” SCREWS into the pre- drilled holes at locations shown by arrows below. Holes are located on both sides of the blocks. 5. Place the WALL PANELS into the bottom channel facing the direction of your choosing, starting from the outside working inward.
- Page 5 6. Set TOP RAILS into place so that the ends butt together at the center . Set the MENDING PLATE into place and fasten with 6 1.25” SCREWS 7. Fasten the TOP RAILS with 1.5” SCREWS as shown.
- Page 6 8.From the outside of each corbel, measure 1.5” up and 2” from the edge touching the column and pre-drill a hole with a 1/8” drill bit. Insert a 2.5” Screw to fasten the wall to the corbel. (Only one screw per end is required) 2”...
- Page 7 Maintenance: All finished pieces have been stained with an oil-based stain (It is recommended that the pergola receive a clear, oil-based stain yearly to maintain the color, minimize warping and prevent rotting.) Every few years a colored oil based stain should be used to keep the original color.
-
Page 8: Limited One Year Warranty
The maximum amount recoverable under this warranty is limited to the pur-chase price of the Product and, if The Outdoor GreatRoom Company is unable to provide replacement or repair in an expedient and cost-effective manner, The Outdoor GreatRoom Company may discharge all obligations under this warranty by refunding the purchase price of the Product.
