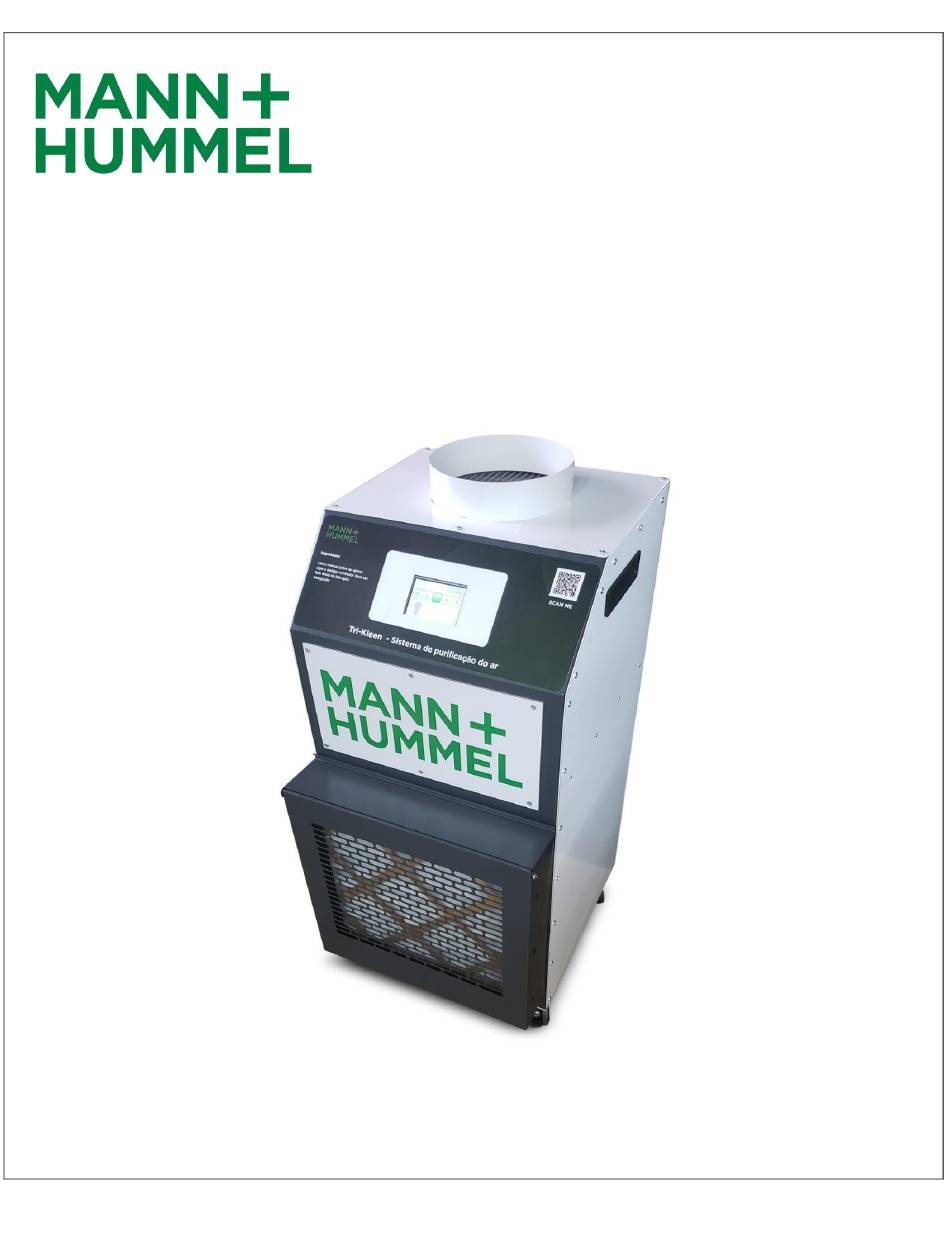

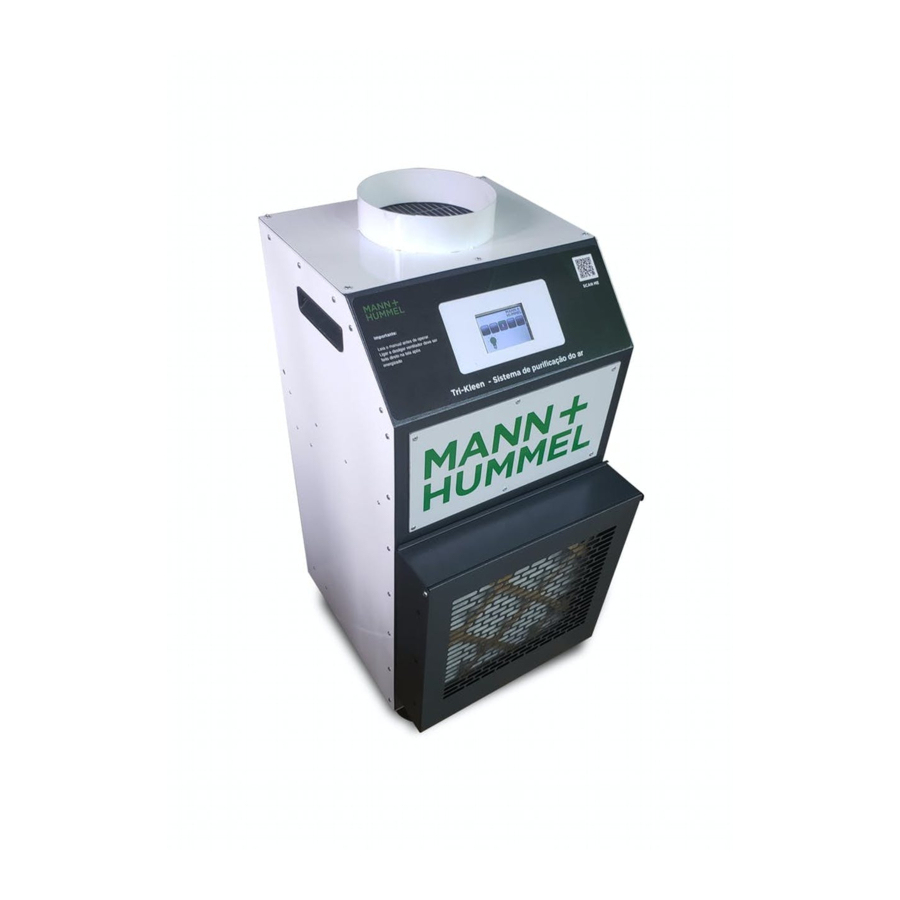

  • Page 1 TRI-KLEEN 500 UV BR PORTABLE AIR FILTRATION UNITS...
  • Page 2 INSTRUCTION MANUAL...
  • Page 3 These instructions must be carefully followed in order to operate the units safely and correctly. If you have any questions regarding the use or care of this equipment, please contact Mann+Hummel by means of the SAC (Customer Attendance Service) by phone 0-800-701-6266.

  • Page 4: Table Of Contents

    Contents SAFETY INSTRUCTIONS ................................1 REQUIREMENTS FOR SAFE OPERATION ..........................1 IMPORTANT SAFETY INSTRUCTIONS ............................1 GENERAL INFORMATION ................................ 2 HOW TO DETERMINE THE REQUIRED NUMBER OF AIR FILTRATION DEVICES (AFD) ............. 3 ELECTRICAL REQUIREMENTS ..............................4 KEY COMPONENTS ................................. 4 KEY COMPONENT DESCRIPTIONS ............................

  • Page 5: Safety Instructions

    Warning: To reduce the risk of fire, electric shock, or injury to person observe the following: Use this unit only in the manner intended by Mann+Hummel. If you have questions, please contact Mann+Hummel by means of the SAC (Customer Attendance Service) by phone 0-800-701-6266.

  • Page 6: General Information

    atmospheres may require the use of intrinsically safe equipment, specific engineering controls, and personal protective equipment (PPEs) in accordance with Occupational Safety and Health Administration (OSHA), Environmental Protection Agency (EPA), and other federal, state, provincial and local regulations. GENERAL INFORMATION The TRI-KLEEN portable air filtration units incorporate the HEPA (High Efficiency Particulate Air) filtration which provides the most effective available mechanical filtration method.

  • Page 7: How To Determine The Required Number Of Air Filtration Devices (Afd)

    STANDARD AIR FILTER STAGES (SUPPLIED WITH THE UNIT) TRI-KLEEN units come equipped with one pre-filter mounted in the pre-filter compartment and a final stage HEPA filter, located inside the cabinet: • 2" deep, pleated pre-filter treated with an EPA registered antimicrobial agent.

  • Page 8: Electrical Requirements

    3. Quantity of AFD required = (75 m³ x 12) / (800 m /h) = 900/800 = 1.2 units 4. 1.2 units → 2 units required. ELECTRICAL REQUIREMENTS 1. The units require a minimum of 110 or 220 volts AC, 60 Hz to operate properly; however, maximum air flow performance requires 110 or 220 volts AC, 60 Hz.

  • Page 9: Key Component Descriptions

    KEY COMPONENT DESCRIPTIONS • Pre-filter. A pleated particulate filter that protects and extends the life of the more expensive HEPA filter. The pre-filter for this unit has an ASHRAE MERV 8 rating. • Alternative pre-filter (must be purchased separately). Carbon pre-filter for capturing low concentrations of odors, vapors, gases and volatile organic compounds, collectively known as OVG, is also available.

  • Page 10: Operating The Unit

    OPERATING THE UNIT BEFORE OPERATING THE UNIT Inspect and tighten any HEPA filter retaining nuts that may have loosened during transportation. Inspect the filters for any material or structural damage prior to use and replace any damaged filters before operating the unit. When removing any filters prior to operation, always put them back in place with the airflow indicator on the filter housing oriented in the proper direction (if applicable).

  • Page 11: Control Panel Operation

    If the unit has power and the screen is not illuminated, simply touch the LCD screen to bring up the MAIN SCREEN. Note that if no buttons have been pushed for 15 seconds, the LCD screen will go to the Mann+Hummel logo again.
  • Page 12 TOUCH ON THE SCREEN TO OPERATE THE EQUIPMENT By touching on the equipment's LCD screen, we will go to the screen below with information about the filter status divided in 3 categories: New (cleaned filter, without accumulation of impurities), Saturated (the change of filter was made for some time and with considerable level of impurities retained, therefore it is a warning that the filter should be changed in order to avoid future damages to the equipment and ensure a good functioning) and Critical (when the allowed level of retained impurities is already exceeded and the filter has to be changed urgently), status of lamps which...
  • Page 13 Press the UV icon, in order to TURN the UV lamps ON. Press the UV icon, in order to TURN the UV lamps OFF. Lock the screen: Press the icon to lock the screen and return to the position stand-by. Settings: Connectivity and element's change.
  • Page 14 FILTER STATUS: 0 HOURS OF OPERATION ---------------------------------- LAMPS STATUS In order to turn the equipment's fan off, it is enough t reduce the speed until the first indicator (at the bottom), and following touch again the button Reduce, the fan will be turned off and it is signaled by the red color as shown below. FILTER STATUS: 0 HOURS OF OPERATION ----------------------------------...
  • Page 15 The equipment Tri-Kleen has available 2 different connectivity modes, via Bluetooth and via Wi-Fi. The connection via Bluetooth may be done at any moment during the functioning of the Tri-Kleen, it is necessary that the user downloads the TRI-KLEEN application of MANN+HUMMEL, which is already in development in the Android and IOS versions.
  • Page 16 OPERATING VIA BLUETOOTH The connection via Wi-Fi should be started by the icon available in Settings. Note: For more information, please contact Mann+Hummel by means of the SAC (Customer Attendance Service) by phone 0-800-701-6266. WAITING FOR WI-FI SETTING After the user has paired via Wi-Fi, on the equipment's screen will be available only the function Stop Wi-Fi (according to...

  • Page 17: User Servicing Instructions

    Do not use harsh chemicals, solvents or detergents to clean the unit. Note: Mann+Hummel recommends that the HEPA filter be changed after 12 months, regardless of how little the unit may have been used, as a precautionary measure as some materials in the filter's construction can be affected over time.

  • Page 18: Filter Replacement Procedure

    Caution: Room air filtration units are designed to meet or exceed standards for high efficiency air filtration equipment. Use only Mann+Hummel parts, including replacement filters. Use of non Mann+Hummel parts and filters voids the product warranty and all performance claims.

  • Page 19: Component Replacement And Care Of The Unit

    Caution: TRI-KLEEN portable air filtration units are designed to meet or exceed standards for high efficiency air filtration equipment. Use only Mann+Hummel parts, including replacement filters. Use of non-original parts and filters voids the product warranty and all performance claims and jeopardize worker and environmental safety.

  • Page 20: Troubleshooting Guide

    Power supply requirements 220 volts AC, 60 Hz, circuit of 15 amp. 110 volts AC, 60 Hz, 15 amp. (Optional) Max current draw 2.5 amps Automatic restart The unit will automatically restart itself after temporary power interruption. Control panel LCD touch screen controls. Fuse Integrated fuse of 5 amp.

  • Page 21: Limited Warranty

    1 year, except such as are commercially acceptable. This warranty does not include useful filter life. The warranty period for the lamps and ballasts is 1 year from the date of purchase. Mann+Hummel does not warrant that the goods sold are merchantable or fit for any particular purpose.
  • Page 22 U.S. Military Standard 282 (DOP Test) 100% Efficiency Tested Mann+Hummel HEPA filters are individually tested and certified to ensure that the completed filter provides an overall minimum efficiency of 99.97% when challenged by a thermally generated test aerosol, 0.3-microns in size...

  • Page 23: Tri Kleen 500Uv Series Parts List

    TRI KLEEN 500UV SERIES PARTS LIST ITEM CODE DESCRIPTION QUANTITY 14 379 78 S01 HEPA FILTER ELEMENT 14 381 79 S01 PRE-FILTER 14 380 42 S01 PLASTIC HANDLE 14 379 76 S01 METALLIC STRUCTURAL BODY 14 379 77 S01 MOTORIZED FAN / EXHAUSTER 14 381 12 S01 UV LAMP 14 380 41 S01...
