Logitech NuLOOQ navigator Quick Start Quide

Getting Familiar with your NuLOOQ navigator

NuLOOQ navigator™: tips
Getting Familiar with your NuLOOQ navigator
tooltuner dial™

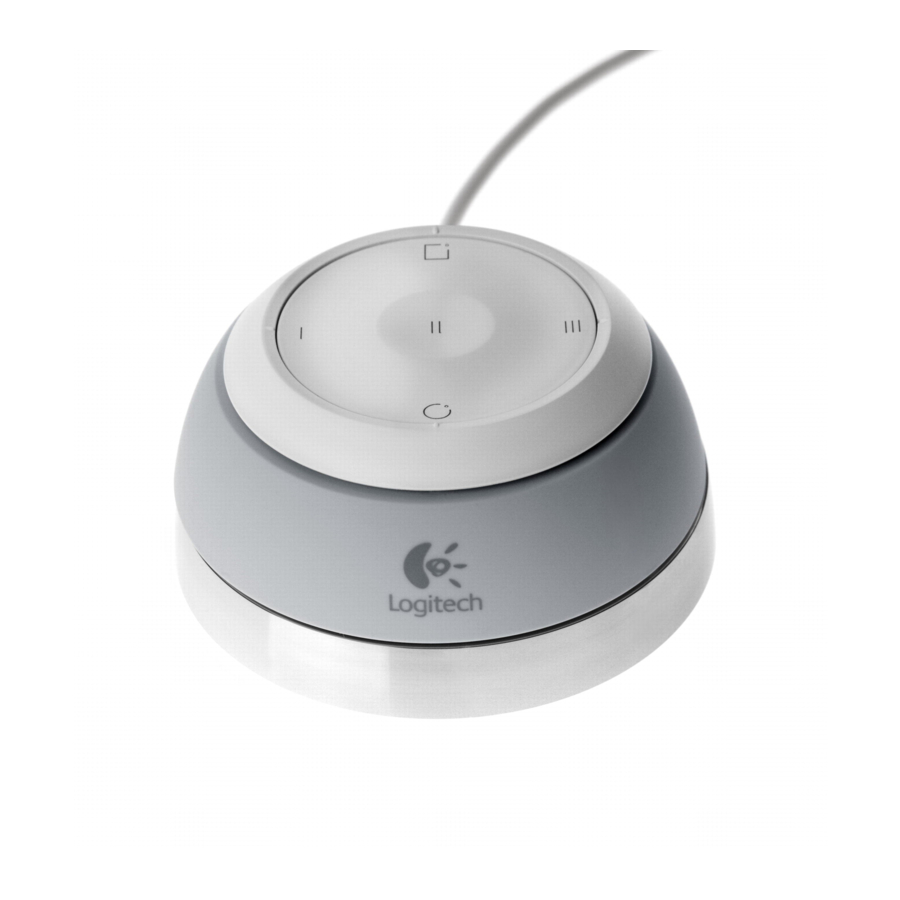

The NuLOOQ navigator input device is composed of the following components:
•
The navring™ is the gray mobile ring encircling the body of the controller.
•
The tooltuner dial™ (or tooltuner) is the flat circular disk on the top surface of the
controller.
•
Three programmable triggerpoints™, numbered I, II, and III, across the center-line of the
tooltuner dial´s surface. (Note, button II doesn't require to be pushed down. Just
resting your finger on button II activates the button.)
•
The Static Value Control triggerpoint, located at the twelve o´clock position on the
tooltuner dial.
Using the nav ing r
The navring gives you two basic navigation functions: Scroll and Zoom. You can Scroll an image
or document by nudging the navring left, right, up or down. The navring moves only a small
amount, yet a small nudge can quickly move an image or document. The following default
Scroll and Zoom configurations are applicable to Adobe® Creative Suite® 2 applications.
Copyright © 2006 Logitech. All rights reserved. Logitech, the Logitech logo, and other
Logitech marks are owned by Logitech and its affiliates. All other trademarks are the
and
navring™
property of their respective owners.
tricks
programmable
triggerpoints™
static value control
