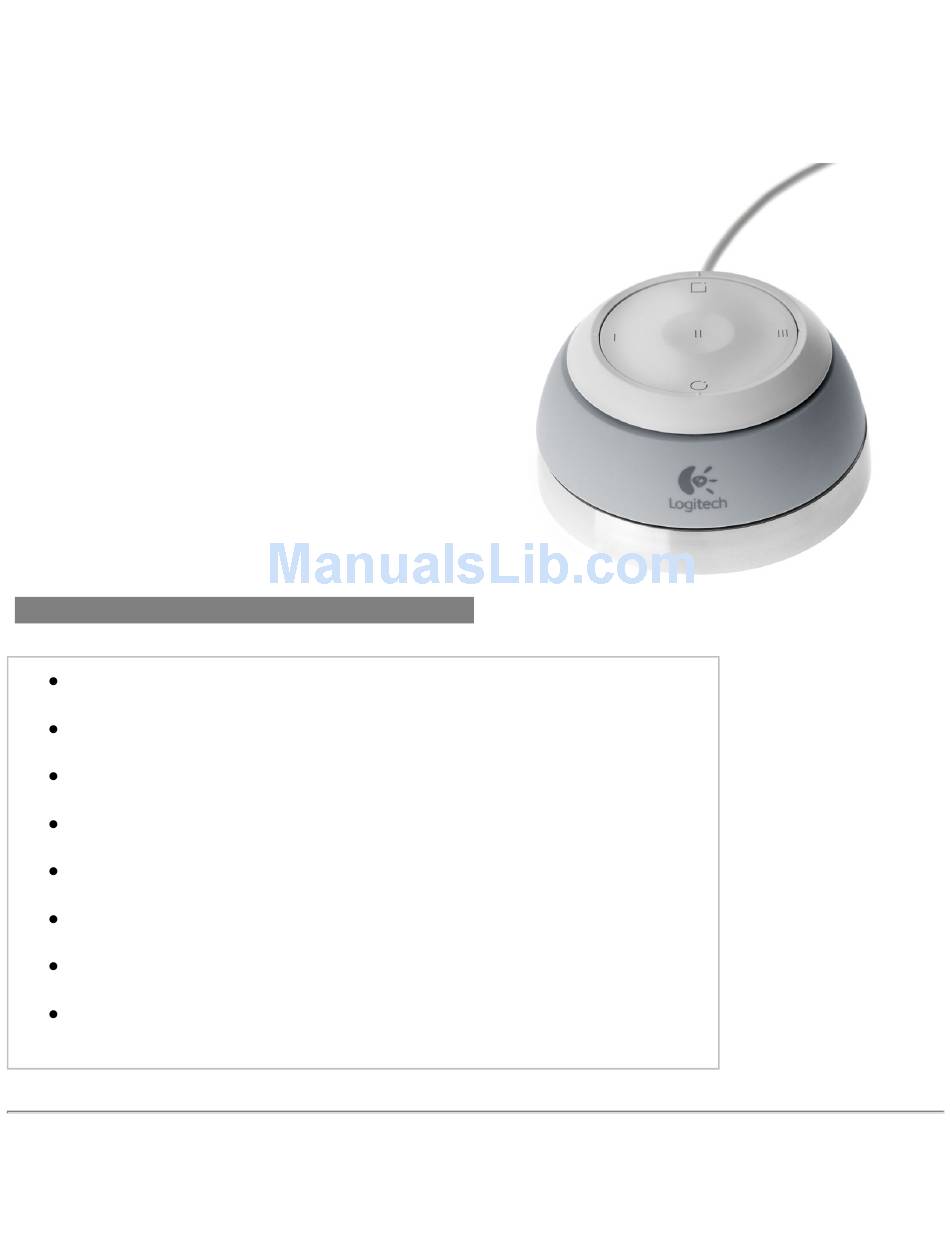

Welcome to Logitech NuLOOQ navigator
Congratulations on acquiring your new Logitech NuLOOQ navigator control device. This innovative
new device is truly your mouse's best friend. Off
load navigation and many other actions from the
mouse onto the NuLOOQ navigator. To get the
most from your device, you can use this help
system. It offers ideas on how you can use your
device's features when you are working, playing,
and communicating. It provides details on
customizing your device to suit you. And it gives
instructions on how to carry out your daily tasks
with your device.
Use this help system to work smarter, play more,
and communicate better with your Logitech
NuLOOQ navigator.
Select a task... (Click on link below)
Configuring Adobe Photoshop CS2 for 1st Time Use
Quickly Getting Started using your NuLOOQ navigator
Installing / Uninstalling NuLOOQ navigator
Using NuLOOQ navigator with Adobe Photoshop CS2
Using NuLOOQ navigator with Adobe Photoshop Elements 4
Other Applications
Configuring NuLOOQ navigator for other apps
Support
© 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered.
All other trademarks are the property of their respective owners.

Advertisement

loading

Related Manuals for Logitech NuLOOQ navigator

Summary of Contents for Logitech NuLOOQ navigator

  • Page 1 Other Applications Configuring NuLOOQ navigator for other apps Support © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 2 Configuring Adobe Photoshop CS2 for 1st Time Use Before NuLOOQ navigator can be used with Adobe Photoshop CS2, you must first configure Adobe Photoshop CS2 and then restart CS2 for proper operation. To get started, first ensure that the NuLOOQ navigator driver has been installed on your system and your system has been restarted, if required.
  • Page 3 A dialog box appears with options on configuring shortcut keys for virtually any command in Photoshop. Click on "File" menu command. This will expand all the "File" menu commands. Scroll down the list till you fine "NuLOOQ Plug-in...". Click under shortcut column next to "NuLOOQ Plug-in..." row and enter a shortcut command. Note, this shortcut command can be anything, you'll not be typing this shortcut key at anytime, so make it as complicated as possible.
  • Page 4 If you change your workspace or load a different workspace, you may need to reconfigure the shortcut key for NuLOOQ Plug-in. © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their...

  • Page 5: Getting Started

    Getting Started Logitech NuLOOQ navigator is a powerful device with a great deal of functionality and flexibility. Click on links below to quickly get to a different section. NuLOOQ navigator components Placing the device on the desk Properly holding your NuLOOQ navigator...
  • Page 6 click triggerpoints: The 4 triggerpoints within the tooltuner dial groove. Triggerpoints labeled I, III and the circle and square buttons are click triggerpoints. touch triggerpoint: The single button located in the center labeled triggerpoint II. Back to top > Placing the device on the desk The NuLOOQ navigator is not a mouse, but rather works with your mouse, trackball or tablet and keyboard.
  • Page 7 limits your access to the tooltuner dial and the built-in triggerpoints. Back to top > Using the navring The navring is a gentle moveable gray ring encircling the device. This ring can be moved in all horizontal directions and twisted, as shown in animated image below. Keep in mind that the device is not intended to move. Only the navring slides, while the device is stationary.
  • Page 8 In most applications, the navring is used to pan and zoom around documents and images. However in timeline based apps, such as video editing or audio applications, the navring can be configured to navigate the timeline, such as moving forward or backwards or adjusting resolution.
  • Page 9 Using the triggerpoints The surface of the tooltuner dial also contains five triggerpoints; 4 triggerpoints require a click to activate, while one is touch sensitive. All 5 triggerpoints are fully programmable and configurable. Triggerpoint II is touch sensitive and doesn't require a click to activate.
  • Page 10 Back to top > © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 11 Installing / Uninstalling Logitech NuLOOQ navigator In the Package The package containing NuLOOQ navigator contains the control device, an installation CD and other marketing collateral. The CD contained in the package is the latest version of software available at that time.
  • Page 12 The first screen above asks you to confirm the license agreement. Check next to "Yes" if you agree with the agreement and then click on "Next>" to proceed to next screen.
  • Page 13 The second screen above allows you to confirm location of driver. We recommend selecting the default location. If you desire the driver to be installed at another location, type in the new location in the text box or select browse to bring up the "Select Folder" window to select the folder. Once complete, click on "Next>"...
  • Page 14 The last screen confirms your installation configuration. Once you click on "Next>" the installation for NuLOOQ navigator will begin.
  • Page 15 The installation will take between 10-30 seconds depending on your processor speed. Once complete you'll be ready to use NuLOOQ navigator. No reboot is required after installation of Logitech driver. To confirm that your NuLOOQ navigator is installed the button lights on top of your device will be glowing blue and a NuLOOQ navigator icon should appear in the system tray.
  • Page 16 The above screen offers two options, one to uninstall and the other to repair. Select Uninstall and then "Next>" to continue the uninstall process...
  • Page 17 The above confirmation screen asks you to reconfirm uninstall of NuLOOQ navigator. Note when you uninstall NuLOOQ navigator, only driver and plug-in files will be deleted. All user configuration files will NOT be deleted from your system. After you click on "Next>", the uninstall process will start and be completed in a few seconds.
  • Page 18 Select Repair NuLOOQ navigator from screen above to start repair process. And then click on "Next>" to continue to next screen.
  • Page 19 NuLOOQ navigator will be fully functional upon completion of the process. © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 20 Quick Shortcut Command / Modifier key access using triggerpoints © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 21 Pan and Zoom Navigation in Adobe Photoshop CS2 using navring The gray ring encircling the device, called the navring is used to smoothly navigate around your current Photoshop image. Gently nudge the ring in all directions to navigate the image. Note, the device stays stationary.
  • Page 22 Gently move the navring to the left to scroll the image to the right till the end is reached. If the window size is at or larger than the image size, than you may not be able to scroll to the right.

  • Page 23: Usage Recommendations

    Gently twist the navring clockwise to zoom into the image. Place the cursor anywhere on the image and the image will continue to zoom in towards the cursor. The image will continue to zoom in, in fine increments until you get to 1600%. Note, if you want to modify zoom to zoom in, at set increments, i.e.
  • Page 24 © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 25 Changing Pan and Zoom Orientation If while moving the navring, the image movement doesn't feel comfortable or correct, you may want to reorient how the navring interacts with the image. You may want to swap how the navring interacts with the image. Follow these simple steps to adjust this orientation.
  • Page 26 © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 27 Changing Zoom in and Zoom out Settings to Fixed Resolutions (33%, 50%, etc.) By default, zooming in and zooming out using NuLOOQ navigator is set to provide you with the smoothest experience. This will result in zooming in and out at zoom resolutions that provide the smoothest feel.
  • Page 28 Under Assignment, select Type Keystroke. Click here to learn more about Assignment types. Click in the keystroke field and press and hold CTRL key, followed by "=" key. This will display an "=" sign in keystroke and "Control" check box to the right will be checked.
  • Page 29 Click on Apply to make changes effective immediately. © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 30 NuLOOQ navigator Global Settings ("All applications") The "All Applications" configuration in NuLOOQ navigator is a unique configuration setting that applies to all unconfigured applications. To see which applications have unique configurations, first open the NuLOOQ navigator control panel and click on pull-down next to Configure. In the example to the right, the "All Applications"...
  • Page 31 Sends mouse wheel up commands; would typically move the scroll bar up in many apps. Navring – Push Up Sends mouse wheel down commands; would typically move the scroll bar down in many apps. Navring – Push Down Not Assigned Navring –...
  • Page 32 Not Assigned Navring – Twist Counterclockwise Increase Volume Tooltuner – Tune Clockwise Decrease Volume Tooltuner – Tune Counterclockwise Not Assigned Triggerpoint I Not Assigned Triggerpoint II...
  • Page 33 Not Assigned Triggerpoint [] Not Assigned Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 34 Adjusting Brush Size and other Options in Adobe Photoshop CS2 using tooltuner dial The circular disk (tooltuner dial or tooltuner) located at the top of NuLOOQ navigator is used to make fine adjustments to brush size and other option values in increments of 1 pixel in any brush based tool within Adobe Photoshop CS2.
  • Page 35 Gently gliding your finger clockwise on the tooltuner dial will increase the current option value in increments of one. The faster you glide you finger on the tooltuner dial, the faster the value will change. For example, if you are adjusting the brush size, place your brush directly on the object for proper sizing.
  • Page 36 © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 37 Quick Shortcut and Command Execution in Adobe Photoshop CS2 using triggerpoints Any of the 5 triggerpoints on the NuLOOQ navigator device can be configured to execute a shortcut command or even modifier keys. Note, by default, the square button (the one at 12o'clock) is configured to enter static value adjustment mode to adjust brush size and other option values.
  • Page 38 Triggerpoint III is set to Step Forward (SHIFT +CTRL+Z). Triggerpoint "Square" at 12 o'clock position is set to enable static value adjustment mode to make adjustments to brush size. Triggerpoint "Circle" at 6 o'clock position is set to CTRL key. Press the key to emulate CTRL key.
  • Page 39 © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 40 Configuring triggerpoints The triggerpoints can be configured to execute virtually any keyboard shortcut command or modifier key. Note, as of this time, only a single keystroke or modifier key(s) + keystroke can be executed. To configure any of the triggerpoints, just follow these steps: NuLOOQ navigator Control Panel Description Open...
  • Page 41 Click on apply for changes to be effective. © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 42 Pan and Zoom Navigation in Adobe Photoshop Elements 4 using navring The gray ring encircling the device, called the navring is used to smoothly navigate around your current Photoshop image. Gently nudge the ring in all directions to navigate the image. Note, the device stays stationary, only the navring moves.
  • Page 43 you can reconfigure NuLOOQ navigator. Gently move the navring to the left to scroll the image to the right till the end is reached. If the window size is at or larger than the image size, than you may not be able to scroll to the right.
  • Page 44 Gently twist the navring clockwise to zoom into the image. Place the cursor anywhere on the image and the image will continue to zoom in towards the cursor. The image will continue to zoom in, in fine increments until you get to 1600%. Note, if you want to modify zoom to zoom in, at set increments, i.e.
  • Page 45 © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.

  • Page 46: Other Applications

    New configurations can be created for other applications. Click here to learn how to configure NuLOOQ navigator for other applications. © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 47 Using NuLOOQ navigator in Adobe Flash Professional NuLOOQ navigator Action Application Reaction Scroll to the top of the Stage Navring – Push Up Scroll to the bottom of the Stage Navring – Push Down Not Assigned Navring – Push Right Not Assigned Navring –...
  • Page 48 Zoom into the Stage Navring – Twist Clockwise Zoom out of the Stage Navring – Twist Counterclockwise Scrub timeline forward Tooltuner – Tune Clockwise Scrub timeline backward Tooltuner – Tune Counterclockwise Text Tool Triggerpoint I...
  • Page 49 Lasso Tool Triggerpoint [] Not Assigned Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 50 Using NuLOOQ navigator in Adobe After Effects 7.0 Professional Unlike other document, spreadsheet or image based apps, in which NuLOOQ navigator is used to move around images, Adobe After Effects is an example of how NuLOOQ navigator can be configured to navigate timelines, rather than images.
  • Page 51 NuLOOQ navigator Action Application Reaction Frame to Full Screen on currently selected tab Navring – Push Up Save Navring – Push Down Next Keyframe Navring – Push Right Previous Keyframe Navring – Push Left Zoom in timeline Navring – Twist Clockwise...
  • Page 52 Zoom out timeline Navring – Twist Counterclockwise Scrub timeline forward Tooltuner – Tune Clockwise Scrub timeline reverse Tooltuner – Tune Counterclockwise Control Triggerpoint I Shift Triggerpoint II...
  • Page 53 Triggerpoint III RAM Preview Triggerpoint [] Pre-Compose Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 54 Using NuLOOQ navigator with Adobe Illustrator NuLOOQ navigator Action Application Reaction Scroll Up Navring – Push Up Scroll Down Navring – Push Down Scroll Right Navring – Push Right Scroll Left Navring – Push Left...
  • Page 55 Zoom In Navring – Twist Clockwise Zoom Out Navring – Twist Counterclockwise Use Global Settings Tooltuner – Tune Clockwise Use Global Settings Tooltuner – Tune Counterclockwise Not Assigned Triggerpoint I...
  • Page 56 Not Assigned Triggerpoint [] Not Assigned Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 57 Using NuLOOQ navigator in Adobe Premiere Pro NuLOOQ navigator Action Application Reaction Go to next edit point Navring – Push Up Go to previous edit point Navring – Push Down Move timeline forward Navring – Push Right Move timeline backward Navring –...
  • Page 58 Zoom into timeline Navring – Twist Clockwise Zoom out of timeline Navring – Twist Counterclockwise Scrub frame forward Tooltuner – Tune Clockwise Scrub frame backward Tooltuner – Tune Counterclockwise Selection Tool Triggerpoint I...
  • Page 59 Not Assigned Triggerpoint [] Not Assigned Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 60 Using NuLOOQ navigator in Microsoft Word NuLOOQ navigator Action Application Reaction Move scroll bar up; document scrolls down Navring – Push Up Move scroll bar down; document scrolls up Navring – Push Down Not Assigned Navring – Push Right Not Assigned Navring –...
  • Page 61 Zoom into the document Navring – Twist Clockwise Zoom out of the document Navring – Twist Counterclockwise Increase font size Tooltuner – Tune Clockwise Decrease font size Tooltuner – Tune Counterclockwise Use Global Settings Triggerpoint I...
  • Page 62 Not Assigned Triggerpoint [] Not Assigned Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 63 Using NuLOOQ navigator in Microsoft Excel NuLOOQ navigator Action Application Reaction Moves scroll bar up; spreadsheet scrolls down Navring – Push Up Moves scroll bar down; spreadsheet scrolls up Navring – Push Down Not Assigned Navring – Push Right Not Assigned Navring –...
  • Page 64 Zoom into the spreadsheet Navring – Twist Clockwise Zoom out of the spreadsheet Navring – Twist Counterclockwise Use Global Settings Tooltuner – Tune Clockwise Use Global Settings Tooltuner – Tune Counterclockwise Use Global Settings Triggerpoint I...
  • Page 65 Not Assigned Triggerpoint [] Not Assigned Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 66 Using NuLOOQ navigator in Firefox NuLOOQ navigator Action Application Reaction Scroll up Navring – Push Up Scroll down Navring – Push Down Go to next page (if one exists) Navring – Push Right Go to previous page Navring – Push Left...
  • Page 67 Go to next tab (if multiple tabs exist) Navring – Twist Clockwise Go to previous tab (if multiple tabs exist) Navring – Twist Counterclockwise Use Global Settings Tooltuner – Tune Clockwise Use Global Settings Tooltuner – Tune Counterclockwise Use Global Settings Triggerpoint I...
  • Page 68 Not Assigned Triggerpoint [] Not Assigned Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 69 Using NuLOOQ navigator in Google Earth NuLOOQ navigator navigation in Google Earth is dependent on where your mouse is located and where your input focus is set within Google Earth window. The image below is a sample of a Google Earth window. To navigate around the world in Google Earth, ensure that your input focus is set on the graphical image.
  • Page 70 Moves the view up Navring – Push Up Moves the view down Navring – Push Down Moves the view to the right Navring – Push Right Moves the view to the left Navring – Push Left Rotates the view counter clockwise Navring –...
  • Page 71 Rotates the view clockwise Navring – Twist Counterclockwise Fine zoom into view Tooltuner – Tune Clockwise Fine zoom into view Tooltuner – Tune Counterclockwise Quick Zoom out of view Triggerpoint I Not Assigned Triggerpoint II...
  • Page 72 Tilt up Triggerpoint [] Tilt down Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 73 Building Application Configurations Creating new application configurations is an easy process. Virtually any application located and installed on the system can be configured for use with NuLOOQ navigator. Use the help file and documentation as part of the application to identify the shortcut keys and mouse wheel events that can be used to create navigation action or other activities of interest to you.
  • Page 74 Step 3: Set an assignment to the control. The assignment menu for all controls are identical. Assignment Definition Unassigned No action will take place when that control surface is moved. Use Global Settings Use settings associated with "All Application" for that control surface movement. Application Specific Settings Only applicable for software with associated plug-ins.
  • Page 75 Type Special Key System commands, such as Mute, volume up, browser forward, back, etc. can be mapped. Mouse Wheel Up Send mouse wheel up commands when NuLOOQ navigator control surface is moved. Mouse Wheel Down Send mouse wheel down commands when NuLOOQ navigator control surface is moved. Open Special Item Open the most popular applications, such as mail client, browser, etc.
  • Page 76 See an example of how Internet Explorer configuration can be added. Click here to see example. © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 77 NuLOOQ navigator Application Configuration Chart Application Name: Platform: Application Version #: NuLOOQ navigator Action Application Reaction Shortcut or Scroll Wheel Navring – Push Up Navring – Push Down Navring – Push Right Navring – Push Left...
  • Page 78 Navring – Twist Clockwise Navring – Twist Counterclockwise Tooltuner – Tune Clockwise Tooltuner – Tune Counterclockwise Triggerpoint I...
  • Page 79 Triggerpoint II Triggerpoint III Triggerpoint [] Triggerpoint O © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 80 Configuring NuLOOQ navigator for Internet Explorer The filled out chart below shows how we may want to configure NuLOOQ navigator to interact with Internet Explorer. NuLOOQ navigator Action Application Reaction Shortcut or Scroll Wheel Scroll Up Mouse wheel up Navring – Push Up Scroll Down Mouse wheel down Navring –...
  • Page 81 Decrease font size CONTRL+Mouse wheel up Navring – Twist Counterclockwise Use Global Settings Use Global Settings Tooltuner – Tune Clockwise Use Global Settings Use Global Settings Tooltuner – Tune Counterclockwise Not configured Triggerpoint I Not configured Triggerpoint II...
  • Page 82 Not configured Triggerpoint III Not configured Triggerpoint [] Not configured Triggerpoint O Using the desired configuration above, the following steps outline how you may configure NuLOOQ navigator to control Internet Explorer. NuLOOQ navigator Control Panel Description Open NuLOOQ navigator panel and from the gear menu on the right, select...
  • Page 83 Find the application you'd like to add. Note, we recommend finding the .exe file to add, rather than a link to the executable. For this demo, we'll be selecting Internet Explorer. Internet Explorer will now appear next to Configure. Ensure your app appears in this box for proper configuration.
  • Page 84 Now under Assignment, select "Mouse Wheel Up". The Auto repeat pull-down will appear. The auto-repeat pull- down will let you control how fast you'd like to send the mouse wheel up event or even a keystroke event. This will allow you to configure the rate that best meets your...
  • Page 85 Now we'll set the twist clockwise and twist counterclockwise control to increase and decrease font size in Internet Explorer. Select "Twist clockwise" from Control. CTRL+MOUSE WHEEL DOWN increases font size in Internet Explorer. This assignment needs to be set for twist clockwise.
  • Page 86 For tooltuner we want to use our "All Applications" settings. To use All Applications, just set assignment to "Use Global Settings" Note, "All Applications" configuration is a special configuration that is setup for all applications for which a configuration doesn't exist. So when "Use Global Settings"...
  • Page 87 © 2006 Logitech. All rights reserved. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners.
  • Page 88 NuLOOQ navigator Support Contact Us You may obtain support for your NuLOOQ navigator in one of the following ways: Within US: Call 702-269-3457 Mon-Fri, 6am - 6pm PT or visit http://www.logitech.com Outside US: Visit the website for your country's contact information. http://www.logitech.com...
