INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLATION AND OPERATION INSTRUCTIONS FOR

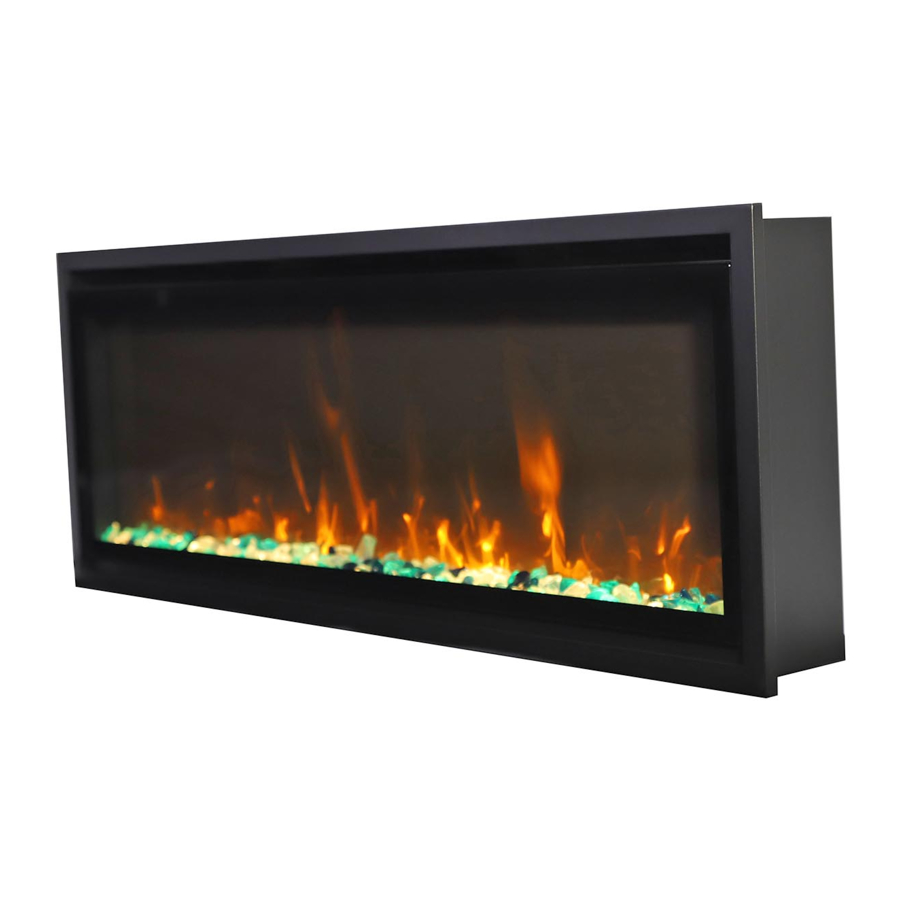

WM-45-XS
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM-45-XS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Remii WM-45-XS

Summary of Contents for Remii WM-45-XS

  • Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR INSTALLATION AND OPERATION INSTRUCTIONS FOR INSTALLATION AND OPERATION INSTRUCTIONS FOR WM-45-XS INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    IMPORTANT INSTRUCTIONS ............................UNPACKING AND TESTING APPLIANCE ........................GROUNDING APPLIANCE ............................... LOCATING THE FIREPLACE ............................WM-45-XS ..................................... INSTALLATION-WALL MOUNT ............................ INSTALLATION- BUILT-IN ............................. HARDWIRE INSTALLATION ............................MEDIA OPTIONS ................................

  • Page 3: Important Instructions

    IMPORTANT INSTRUCTIONS 1. Read all instructions before installing or using this heater. 2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater. 3. Always unplug heater when not in use. 4.
  • Page 4 knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Page 5 Cautions Always install the heater in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. Always disconnect the heater from the electrical supply before moving it, or Do’s carrying out cleaning, maintenance.

  • Page 6: Unpacking And Testing Appliance

    UNPACKING AND TESTING APPLIANCE UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging he appliance, test to make sure the appliance operates properly by plugging he appliance, test to make sure the appliance operates properly by plugging the power supply cord into a 120 Volt grounded outlet.

  • Page 7: Wm-45-Xs

    WM-45-XS Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1500W Max States and Canada. If you need assistance...

  • Page 8: Installation-Wall Mount

    INSTALLATION-WALL MOUNT WALL MOUNT NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. 1. Select a location that is not prone to moisture and is located at least 0.91 m or 3 feet away from combustible materials such as curtains or drapes, furniture, bedding, paper, etc.

  • Page 9: Installation- Built-In

    120 Volt grounded outlet. The rough wall opening size of the fireplace: The rough wall opening size of the fireplace: W(“) D(“) H(“) WM-45-XS 42 1/2 42 1/2 4 3/8 15 2/8 INSTALLATION 1.
  • Page 10 2. Unscrew the 2 screws located on each side and take off the inner Unscrew the 2 screws located on each side and take off the inner side steel panels. side steel panels. screws inner side steel panels screws 3. Put the fireplace into the wall op Put the fireplace into the wall opening and fix it to be the wall.
  • Page 11 4. Screw back the inner side steel panel. Screw back the inner side steel panel. Screw back the inner side panel that you removed at STEP 2. 5. Put back the front glass panel after you finish the media back the front glass panel after you finish the media decoration.

  • Page 12: Hardwire Installation

    HARDWIRE INSTALLATION WIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. If it is necessary to hard-wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring.
  • Page 13 3. Connect the uncovered wiring with 14 A WG wiring (not provided with the appliance) by a wiring connecting cap which you can find in the manual bag. Please make sure the live wire goes into the “L”, the neutral wire into “N” and the ground wire into “G”. 4.

  • Page 14: Media Options

    MEDIA OPTIONS The media that come with this appliance are ‘Suntea’, Canyon brown and Ocean blue. Consumers may purchase optional decorative media if they choose. See dealer for more details. Suntea Ocean blue Canyon brown DECORATIVE MEDIA INSTALLATION Unscrew 1 screw on each left and right side Unscrew 1 screw on each left and right side and push the front glass panel the front glass panel upward a bit to take it off.

  • Page 15: Operation

    OPERATION The fireplace can be operated either by the touch panel located on the left front top side of The fireplace can be operated either by the touch panel located on the left front top side of The fireplace can be operated either by the touch panel located on the left front top side of the fireplace, or by supplied remote control.

  • Page 16: Remote Control Operation

    REMOTE CONTROL OPERATION DISPLAY ON/OFF YELLOW ORANGE TRAY ON/OFF ADJUST FLASH HEATER ON/OFF HIGH TEMP. For remote to function make sure the heater is plugged in and main power switch located on the bottom left hand side is at position I. When operating the remote make sure you point the remote to the centre of the fireplace and make sure each time you press the button the buzzer inside the unit will beep once.
  • Page 17 7. Press “ADJUST”, rotates through , rotates through the 13 colors of tray lighting. 8. Press “FLASH”, the tray light cycles through all 13 colors. the tray light cycles through all 13 colors. 9. Press “HEATER ON/OFF ON/OFF” once to turn on the heater, in H2 setting, 1500W, indicating heater, in H2 setting, 1500W, indicating “H2”...

  • Page 18: Installing Wall Thermostat

    INSTALLING WALL THERMOSTAT INSTALLING WALL THERMOSTAT WALL THERMOSTAT WIRING DIAGRAMS WALL THERMOSTAT WIRING DIAGRAMS TEMP. setting. TEMP. setting. NOTE: The wall thermostat will be functioning when the heater is on the stat will be functioning when the heater is on the stat will be functioning when the heater is on the TEMP.

  • Page 19: Replacement Parts

    REPLACEMENT PARTS PART NUMBER DESCRIPTION WM-45-XS 3236503 TRIM FRONT GLASS 3236507 ASSEMBLY 107022362 TRAY GLASS 107022361 BACK GLASS 601144 FLAME LED STRIP 10101225 FLAME MOTOR 3236505 FLICKER ASSEMBLY 601105F CIRCUIT BOARD RIGHT OUT SIDE 3236010 COVER TEMPERATURE 10114001B SENCOR 601300M-2...

  • Page 20: Exploded View

    EXPLODED VIEW...

  • Page 21: Trouble Shooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary Back black cloth is falling off Change a new flicker and back and roll the flicker black cloth Ember bed is not Ember LED’s are burnt out Inspect the ember bed LED’s and...

  • Page 22: Service History

    SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service Technician Service Performed Special Concerns Name Name NOTES:...
