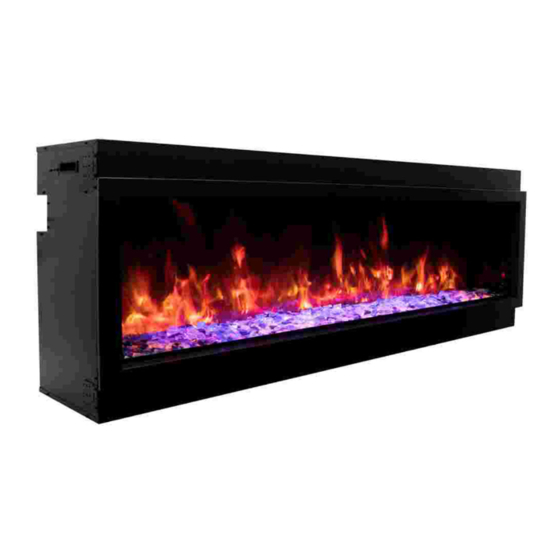

INSTALLATION AND OPERATION INSTRUCTIONS FOR
102745-XT
102755-XT
102765-XT
SAFETY INFORM ATION
WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or ot her flammable vapors
and liquids in t he vicinit y of t his or any ot her appliance.
INSTALLER: LEAVE THIS M ANUAL W ITH THE APPLIANCE.
CONSUM ER: RETAIN THIS M ANUAL FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Related Manuals for Remii 102755-XT
Summary of Contents for Remii 102755-XT
- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR 102745-XT 102755-XT 102765-XT SAFETY INFORM ATION WARNING If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Do not store or use gasoline or ot her flammable vapors and liquids in t he vicinit y of t his or any ot her appliance.
-
Page 2: Table Of Contents
The inst ruct ions included here will assure t hat you have many years of dependable and enjoyable service from your Remii product . -
Page 3: Important Instructions
IM PORTANT INSTRUCTIONS Read all inst ruct ions before inst alling or using t his heat er. Keep combust ible mat erials, such as furnit ure, pillows, bedding, papers, clot hes and curt ains at least 3 feet from t he front of t he heat er; keep t hem away from sides and rear as well. ’... -
Page 4: Unpacking And Testing Appliance
UNPACKING AND TESTING APPLIANCE Carefully remove t he appliance from t he box. Prior to inst alling t he appliance, t est t o make sure t he appliance operat es properly by plugging t he power supply cord int o a convenient ly located 120 Volt grounded out let . -
Page 5: 102745-Xt
102745-XT This appliance has been t est ed Descript ion Built-in Appliance accordance wit h t he UL St andard 2021 Voltage 120V AC 60Hz for fixed and locat ion dedicated elect ric Watt s 1500W M ax room appliances in t he United St at es and NO HEATER Canada. -
Page 6: 102755-Xt
102755-XT This appliance has been t est ed M odel Number Built -in Appliance accordance wit h t he UL St andard 2021 Voltage 120V AC 60Hz for fixed and locat ion dedicated elect ric Watt s 1500W M ax... -
Page 7: 102765-Xt
102765-XT Descript ion Built-in Appliance This appliance has been t est ed accordance wit h t he UL St andard 2021 Voltage 120V AC 60Hz for fixed and locat ion dedicated elect ric Watt s 1500W M ax room appliances in t he United St at es and NO HEATER Canada. -
Page 8: Safety Drill Screw Area
SAFETY DRILL SCREW AREA There is a safet y drill screw area as show below. Please make sure t hat t he fix screws are in t his area. Sa fe ty d rill s cre w a re a (Da rk a re a ) T h e m a n u a l c o n tro l p a d p o s itio n HARD- W IRE INSTALLATION... -
Page 9: For Bathroom Use
“ ” At t ach t he wiring t o t he junct ion block. Please make sure t he live wire goes int o t he , t he “ ” “ ” neut ral wire int o and t he ground wire int o Put t he plate back and screw back. -
Page 10: Outdoor Installations
OUTDOOR INSTALLATIONS The 102745-XT, 102755-XT and 102765-XT electric fireplaces are suitable for installation in outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance. -
Page 11: Installation
INSTALLATION The 102745-XT, 102755-XT and 102765-XT models are designed to be built-in. These units allow for the finishing material (drywall, stone, tile, etc) to be built right down to the glass edge. However, that application is not always desirable or available so the surround could be used as an alternate finish option. - Page 12 2. Remove the framing plates from the unit framing plat e 3. Re-fix the framing plates to the unit as the picture shows framing plat e...
- Page 13 4. Bend up the framing plates. 5. Put the unit into the opening.
- Page 14 6. Drive the mounting screws into the framing plates on the unit and the wall studs. framing plat e 7. After checking that the fireplace operates properly, cover the glass panel with protective plastic bag and install plywood or drywall. IMPORTANT NOTE: IF YOU WANT TO USE THE SUPPLIED SURROUND the thickness of the wall finish can only be 1”.
- Page 15 8. Decorate the plywood or drywall with glazed tile, wallpaper, etc. Fireplace 9. Put back the trim that you’ve removed from the unit at STEP 1. t rim...
-
Page 16: Media Options
Media Options The 102745-XT, 102755-XT and 102765-XT are shipped with two mixture media shows below: the Canyon brown and Ocean blue. Consumers may purchase optional decorative media if they choose. See dealer for more details. Canyon brown Ocean blue FIRE GLASS M EDIA-LOG INSTALLATION 1. - Page 17 2. Install the fire glass media. Pour the fire glass media into the try. Feel free to use any combination of fire glass media that you find most appealing. 3. Put back the front glass after you finish the fire glass decoration.
-
Page 18: Operation
OPERATION The fireplace can be operat ed eit her by t he swit ches located on t he left bot t om of t he fireplace unit or by supplied remot e cont rol. Plug t he fireplace int o a 15 Amp wall socket . M ANUAL OPERATION The main power ON/ OFF swit ch in posit ion O, t he fireplace is OFF. - Page 19 REM OTE CONTROL OPERATION For remot e t o funct ion make sure t he heat er is plugged in and main power swit ch located on t he bott om left hand side is at posit ion I. When operat ing t he remot e make sure you point t he remote t o t he cent re of t he fireplace and make sure each t ime you press t he butt on t he buzzer inside t he unit will beep once.
-
Page 20: Installing Wall Thermostat
INSTALLING WALL THERM OSTAT WALL THERM OSTAT W IRING DIAGRAM S W ire the wall thermostat prior to installing the fireplace. WALL THERM OSTAT W IRING(24 VAC) Install Wall Thermostat per instructions provided with kit and per the follow ing information: Turn off circuit breaker. -
Page 21: Replacement Parts
REPLACEM ENT PARTS This list cont ains replacement part s QTY. DESCRIPTION 102745-XT 102755-XT 102765-XT 602030C 602030C 602030C BLOWER AND HEATER ASSEMBLY FIREPLACE BOX 10104010 SWITCH 601036 CONTROL PANEL 601092C CIRCUIT BOARD 10101225 FLAME MOTOR 3134504 3136504 3138504 FLICKER ASSEMBLY... -
Page 22: Exploded View
EXPLODED VIEW... -
Page 23: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION ’ ’ Dim or no flame Flame LED s are burnt out Inspect t he LED s and replace t hem if necessary. ’ ’ Ember Ember LED s are burnt out Inspect t he ember bed LED s and glowing or dimming replace t hem if necessary. -
Page 24: Service History
SERVICE HISTORY This heat er must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:...
