CLASSIC SLIM – Repair Guide
09.26.21

Advertisement

loading
Need help?

Need help?

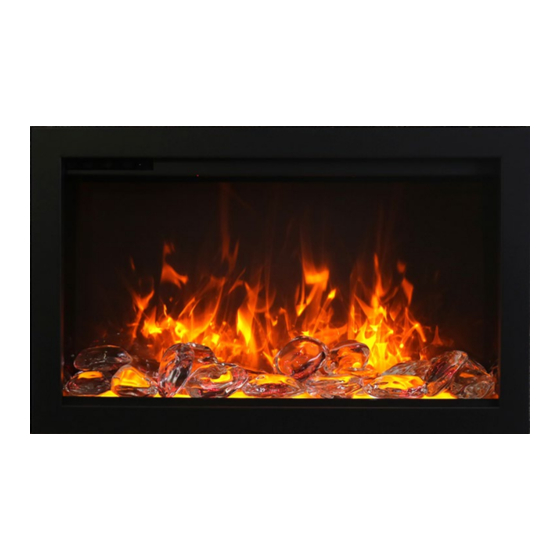

Do you have a question about the Amantii CLASSIC SLIM 33 and is the answer not in the manual?

Questions and answers

Summary of Contents for Remii Amantii CLASSIC SLIM 33

  • Page 1 CLASSIC SLIM – Repair Guide 09.26.21...
  • Page 2: Table Of Contents

    Content • Replacing the LED light(flame and tray light) • Replacing the flicker motor • Replacing the circuit board • Replacing the heating element • Replacing the touch panel • Replacing the signal receiver and WiFi card...
  • Page 3: Replacing The Led Light(Flame And Tray Light)

    Replacing the LED light FLAME LIGHT The horizontal hardware trim is situated here STEP 1 Remove the magnetic stone to remove the horizontal hardware trim Remove the horizontal hardware trim . The horizontal hardware trim Screws are visible after the trim has been removed Screws are situated here...
  • Page 4 STEP 2 The screw Remove the two (2) screws to remove The screw The steel bar the front glass steel bar and the front glass panel...
  • Page 5 STEP 3 Remove the four (4) screws to remove the back glass fixing steel bars and remove the back and tray glass...
  • Page 6 It should now look like this once the back and tray glass are removed.
  • Page 7 STEP 4 Remove the four (4) screws to disconnect the flame stencil from the fireplace.
  • Page 8 STEP 5 Unplug the LED strip from the fireplace to remove the flame stencil and flame LED light assembly from the fireplace.
  • Page 9 You can replace the flame display LED strip.
  • Page 10 STEP 6 Replacing the tray light Please follow steps 1 through 5 from replacing the flame light. Remove two (2) screws to disconnect the tray light assembly from the fireplace.
  • Page 11 STEP 7 Unplug the tray light from the fireplace and detach the wiring from the slot to take off the tray light assembly. Slot Wiring...
  • Page 12 STEP 8 Adjustable foot If you cannot remove the wiring out from the slot, loosen the adjustable foot slightly to remove the wiring out from the slot and take the tray light assembly off.
  • Page 13: Replacing The Flicker Motor

    Replacing the flicker motor for the flame Please follow steps 1 through 5 from replacing the flame light. STEP 9 Remove two (2) Unscrew the screw Disconnect the flick screws to disconnect rod from the motor the motor from the fireplace...
  • Page 14 STEP 10 Remove the two (2) screws to take off Unplug and replace a new motor the circuit board protective panel...
  • Page 15: Replacing The Circuit Board

    Replacing the Circuit Board Please follow steps 1 thru 3 in replacing the flame light. STEP 11 Remove the two (2) screws to take off Remove the four (4) screws and the circuit board protective panel unplug to insert a new circuit board...
  • Page 16: Replacing The Heating Element

    Replacing the Heating Element Please follow steps 1 through 3 from replacing the flame light. STEP 12 Unscrew the four (4) large silver colored screws and two (2) black screws to disconnect the heat assembly from the fireplace.
  • Page 17 STEP 13 Remove four(4) screws and unplug to replace a new heater.
  • Page 18: Replacing The Touch Panel

    Replacing the Touch Panel Please follow steps 1 to 3 in replacing the flame light. STEP 14 Unscrew two (2) screws to disconnect the touch panel assembly from the fireplace.
  • Page 19 STEP 15 Unplug Remove two (2 ) screws and unplug to replace a new touch panel...
  • Page 20: Replacing The Signal Receiver And Wifi Card

    Replacing the Signal Receiver and WiFi Card Please follow steps 1 through 5 in replacing the flame light. WiFi Card Signal receiver...
  • Page 21 STEP 16 Remove the two (2) screws to take off the circuit board protective panel...
  • Page 22 Replacing the Signal Receiver STEP 17 Remove the two (2) screws to take off signal receiver and unplug it from the circuit board to replace it with a new one.
  • Page 23 Replacing the WiFi Card STEP 18 Remove the two (2) screws to take off the WiFi card and unplug it from the circuit board to replace it with a new one.

This manual is also suitable for:

Amantii classic slim 26
