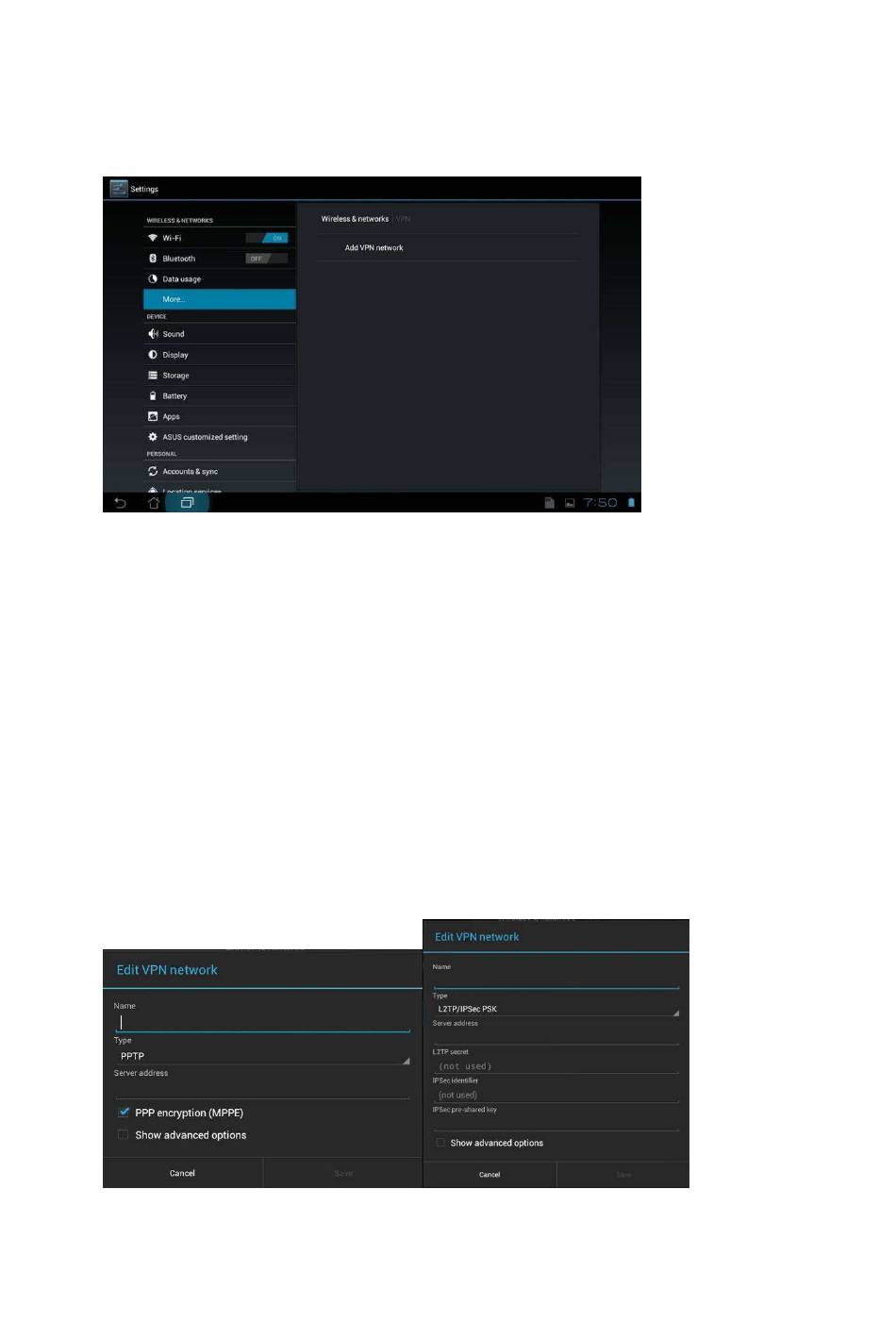

2. Click on Add VPN Network.
3.
Select the VPN Type that corresponds to the VPN Type you have
configured in the WLR-5001.
Complete the following fields:
Description
Server
Account
Password
Secret(L2TP only) If the VPN Type of the VPN tunnel you have set up in the
Enter a name for your VPN connection, this name is for
reference purposes only.
Enter the WLR-5001 WAN IP address
Enter the name used to log onto the VPN tunnel (this must
be one of the users you have set in the VPN user table of
the WLR-5001)
Enter the Password used to log onto the VPN tunnel.
WLR-5001 is L2TP over IPSec You have also entered a
Shared key in the WLR-5001(see step 7 of chapter Using
the Wizard to Configure the WLR-5001 for L2TP over
IPSec for reference) Enter the same key in this field.
