Sitecom N600 X5 User Manual page 62

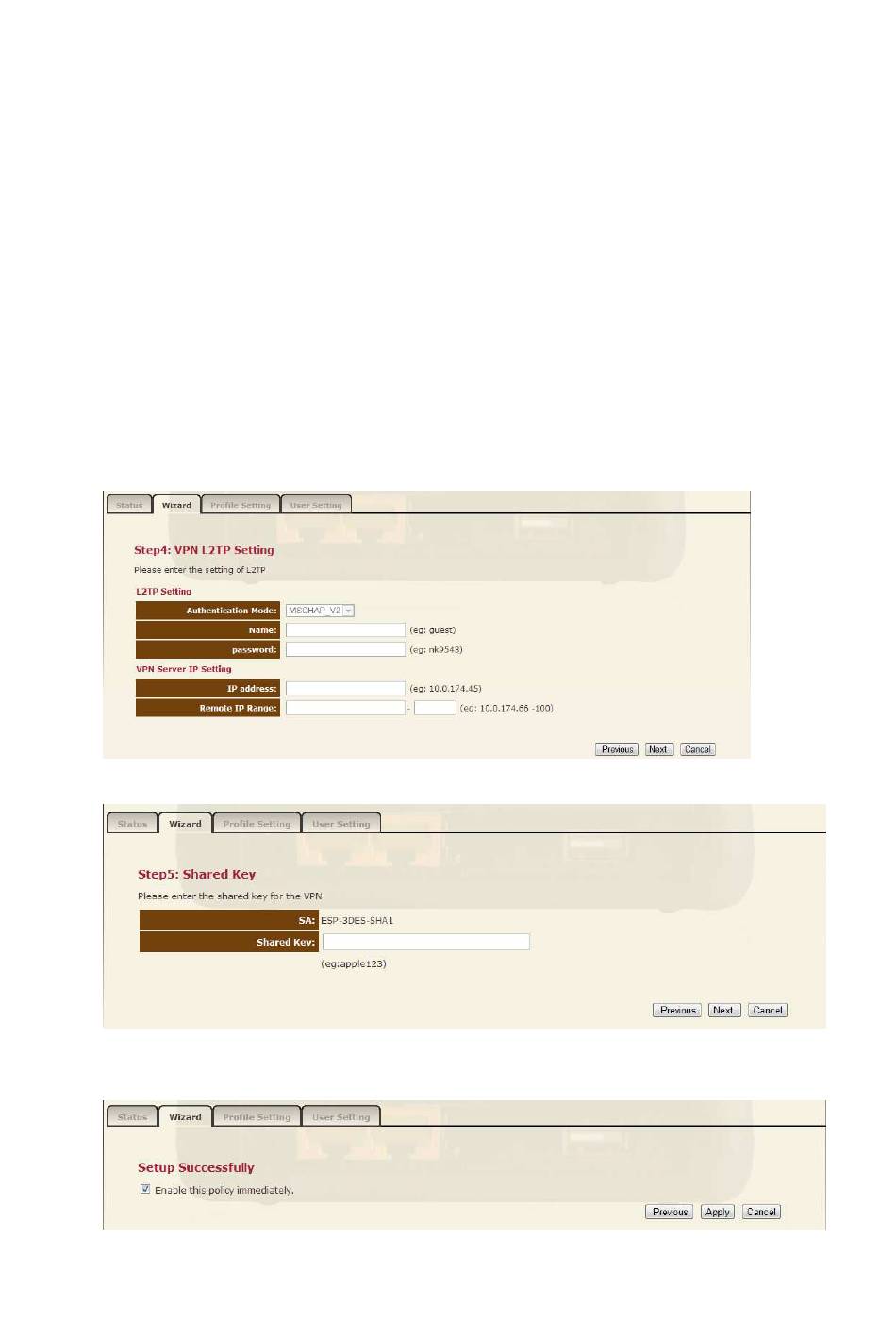

6. Complete the following fields:
User Name
Password
Server IP
Remote IP Range Enter an IP range that is on the same subnet as the Server
Click Next to continue.
7. In the Shared Key field, enter the Security key you wish to use.
8. Enable the VPN policy, and then click Apply to save the VPN profile.
Enter a name for authentication.
Enter a password for authentication.
Enter any IP address on a different subnet than the LAN IP
address of the computer connected behind the WLR-
5001.(When WLR-5001 is on default settings, the LAN IP
address is 192.168.0.1. In this case you can select any IP
address other than 192.168.0.x).
IP address you have entered in the Server IP address field,
but the range should not include Server IP.(For example if
you specified a Server IP address of 192.168.2.1, you can
define a Remote IP Range of 192.168.2.100 – 200.)
