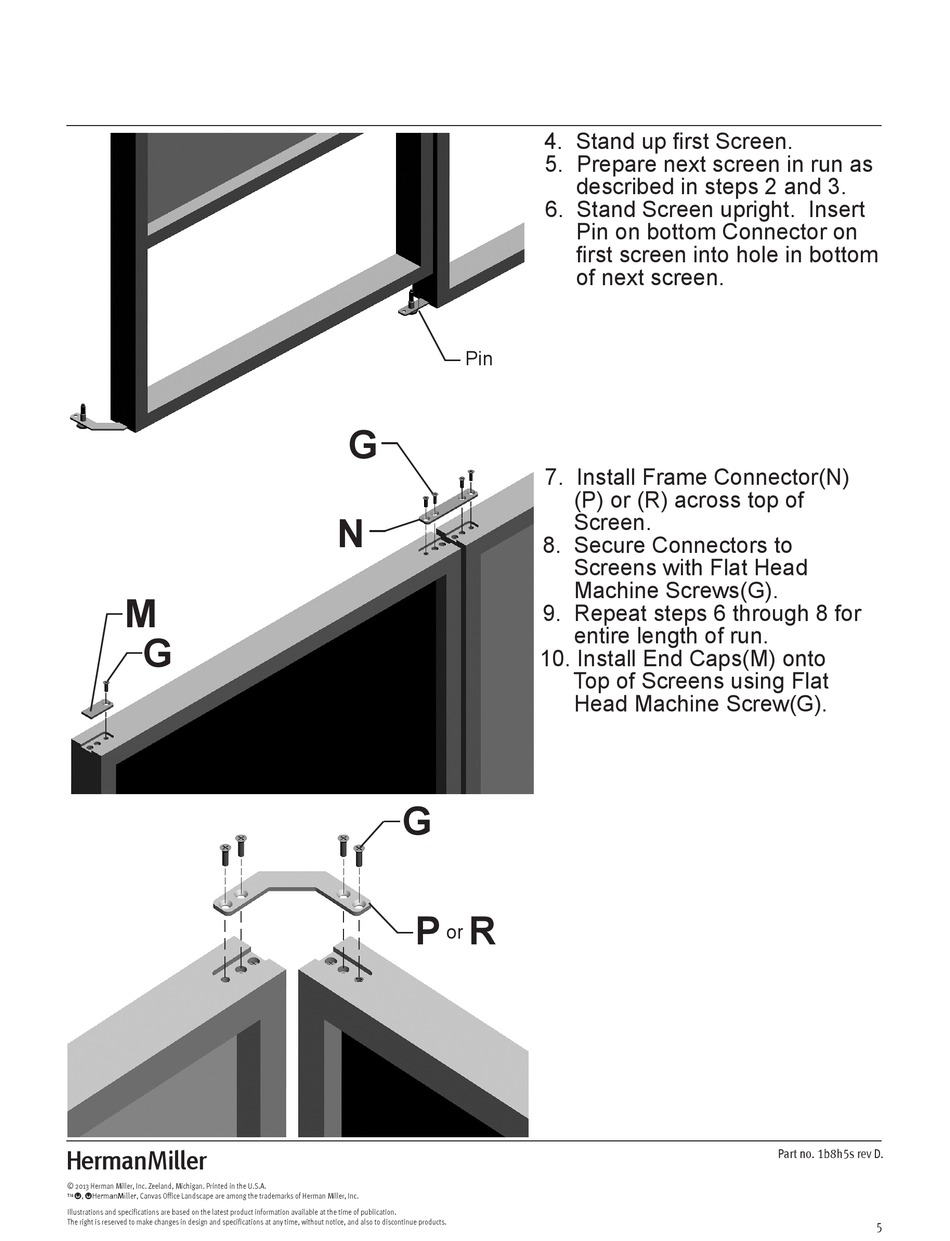

4. Stand up first Screen.
5. Prepare next screen in run as
described in steps 2 and 3.
6. Stand Screen upright. Insert
Pin on bottom Connector on
first screen into hole in bottom
of next screen.
7. Install Frame Connector(N)
(P) or (R) across top of
Screen.
8. Secure Connectors to
Screens with Flat Head
Machine Screws(G).
9. Repeat steps 6 through 8 for
entire length of run.
10. Install End Caps(M) onto
Top of Screens using Flat
Head Machine Screw(G).
