Herman Miller Canvas Office Landscape Standing Screen Installation And Disassembly For Recycling Instructions page 4

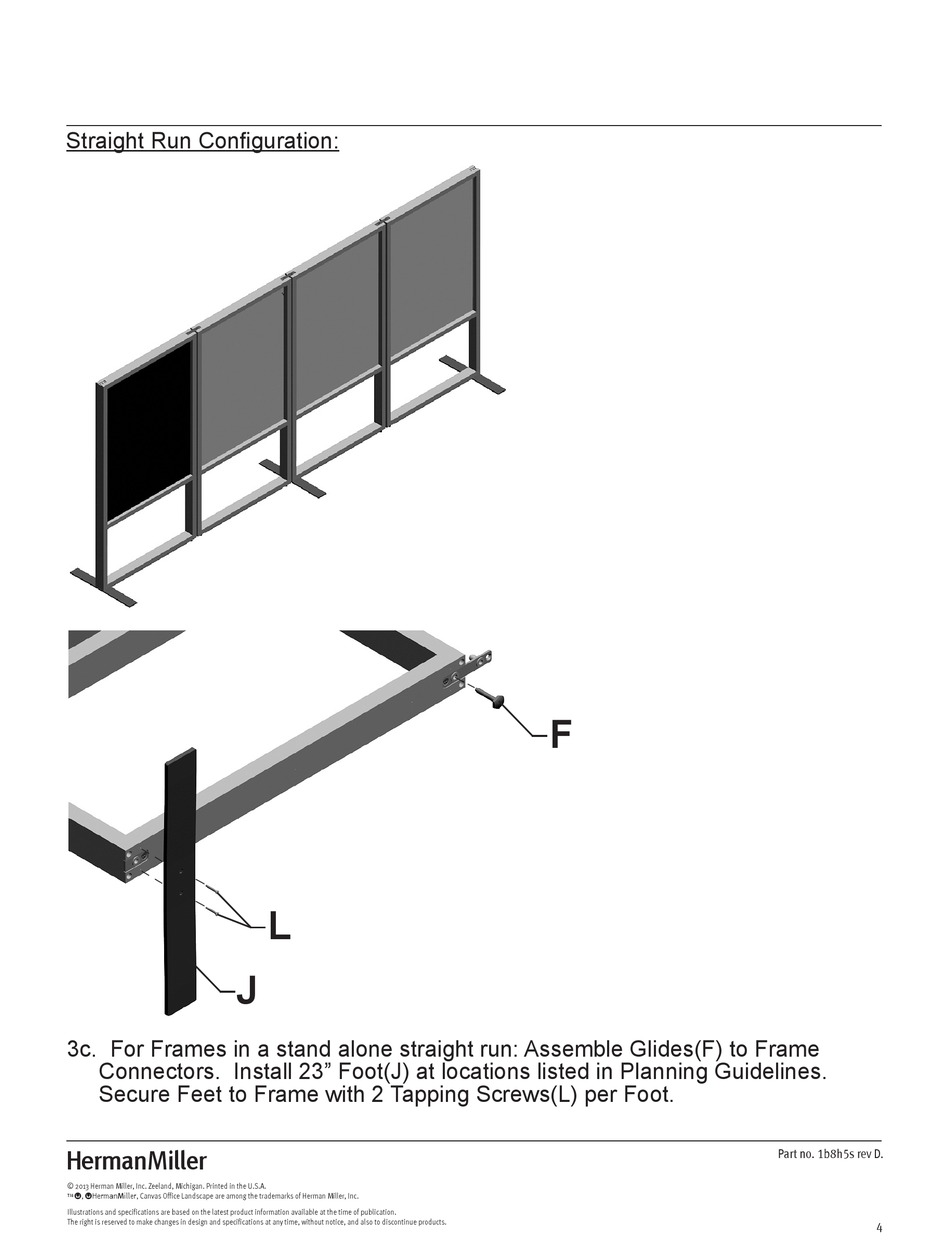

Straight Run Configuration:
J
3c. For Frames in a stand alone straight run: Assemble Glides(F) to Frame
Connectors. Install 23" Foot(J) at locations listed in Planning Guidelines.
Secure Feet to Frame with 2 Tapping Screws(L) per Foot.
Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
L
F
Part no. 1b8h5s rev D.
4
