Herman Miller Canvas Office Landscape Standing Screen Installation And Disassembly For Recycling Instructions page 2

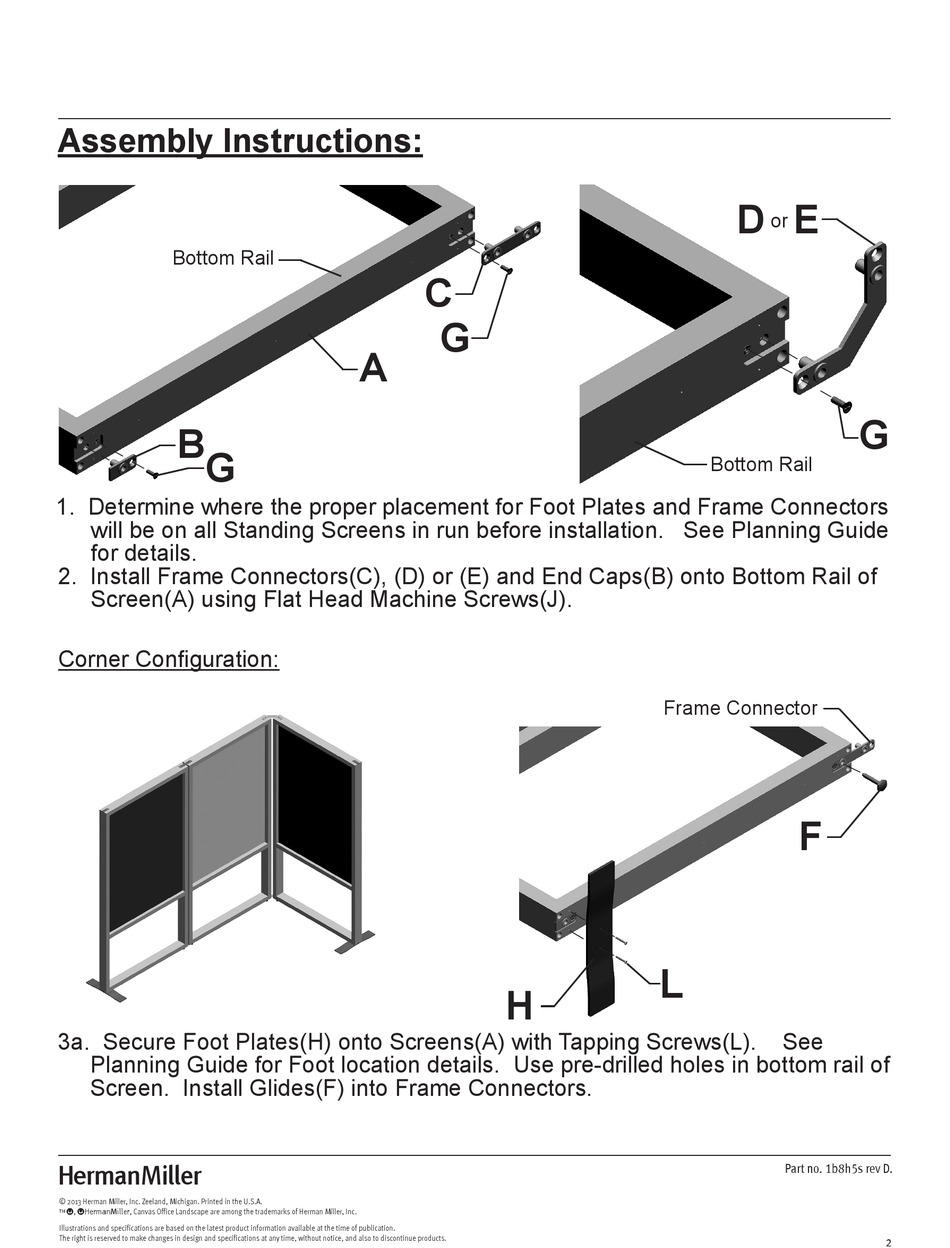

Assembly Instructions:
Bottom Rail
B
G
1. Determine where the proper placement for Foot Plates and Frame Connectors
will be on all Standing Screens in run before installation. See Planning Guide
for details.
2. Install Frame Connectors(C), (D) or (E) and End Caps(B) onto Bottom Rail of
Screen(A) using Flat Head Machine Screws(J).
Corner Configuration:
3a. Secure Foot Plates(H) onto Screens(A) with Tapping Screws(L).
Planning Guide for Foot location details. Use pre-drilled holes in bottom rail of
Screen. Install Glides(F) into Frame Connectors.
Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
C
G
A
H
D E
or
Bottom Rail
Frame Connector
F
L
See
Part no. 1b8h5s rev D.
G
2
