Dynabrade 50343 Manual

Models:
50343 — 25,000 RPM
WARNING
!
1 2 4
3

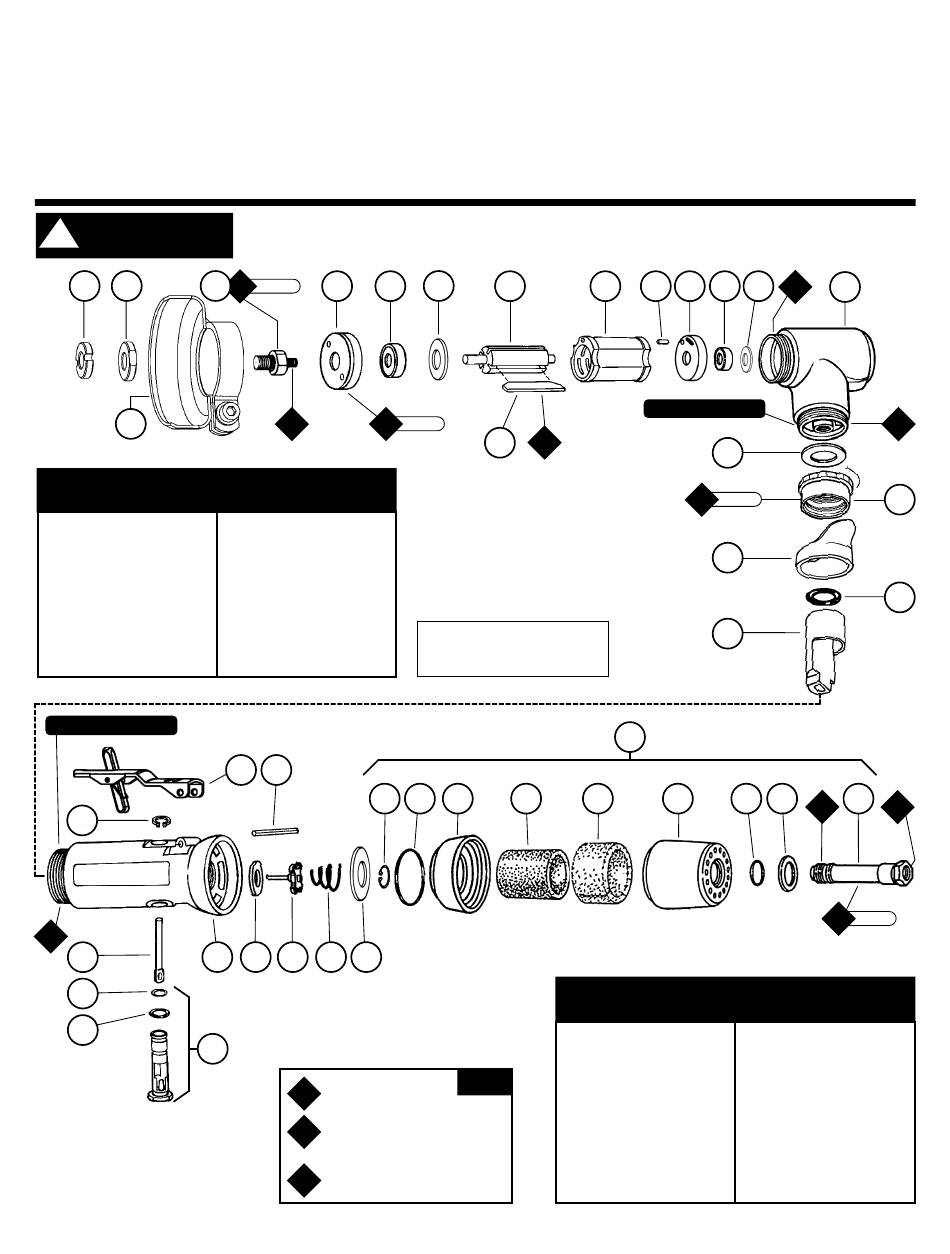

Index Key
No. Part # Description
1 50081 Wheel Flange
2 50083 Spacer
3 50041 Guard
4 50785 Adapter
5 01690 Exhaust Cover
6 01007 Bearing
7 53161 Front Bearing Plate
8 50777 Rotor
9 01480 Blade (4/pkg.)
10 01476 Cylinder
Right Hand Threads
23
A
8
24 28
25
26
27
See reverse side for Accessories and Important Operating, Maintenance and Safety Instructions.
2" Depressed Center Wheel Grinder
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
5 6
T
17 N•m
A
T
2
11 50767 Pin
12 02673 Rear Bearing Plate
13 02696 Bearing
14 02679 Shield
15 01546 Housing
16 01548 Gasket
17 01461 Lock Nut
18 01558 Collar
19 95523 O-Ring
20 01470 Insert
21 22
33
29 30 31 32
O Oil: O = Air Lube
1
A Adhesive: A
2
A
8
Torque: N•m x 8.85 = In. - lbs.
T
7 8
28 N•m
O
9
1
Please indicate:
Model #, Serial #, and RPM
when ordering replacement parts.
34 35 36
Index Key
No. Part # Description
21 01462 Safety Lever
22 12132 Pin
23 95558 Retaining Ring
24 01449 Valve Stem
KEY
25 95730 O-Ring
26 01024 O-Ring
27 01469 Regulator Assy.
= Loctite #271
28 02149 Housing
= Loctite #567
29 01464 Seal
30 01472 Tip Valve
31 01468 Spring
Parts Page Reorder No. PD01•75
Effective August, 2001
Supersedes PD96•90
.4 Hp/7°/Rear Exhaust
Air Motor and Machine Parts
10 11 12 13 14
Left Hand Threads
16
T
45 N•m
18
20
42
37 38 39
32 01642 Air Control Ring
33 95711 Retaining ring
34 95438 O-Ring
35 94521 Muffler Base
36 94524 Sintered Muffler
37 94525 Felt Muffler
38 94522 Muffler Cap
39 95375 O-Ring
40 94526 Spacer
41 94523 Inlet Adapter
42 94520 Muffler Assembly
A 15
8
A
8
17
19
40 41
A
O
8
1
T
23 N•m
