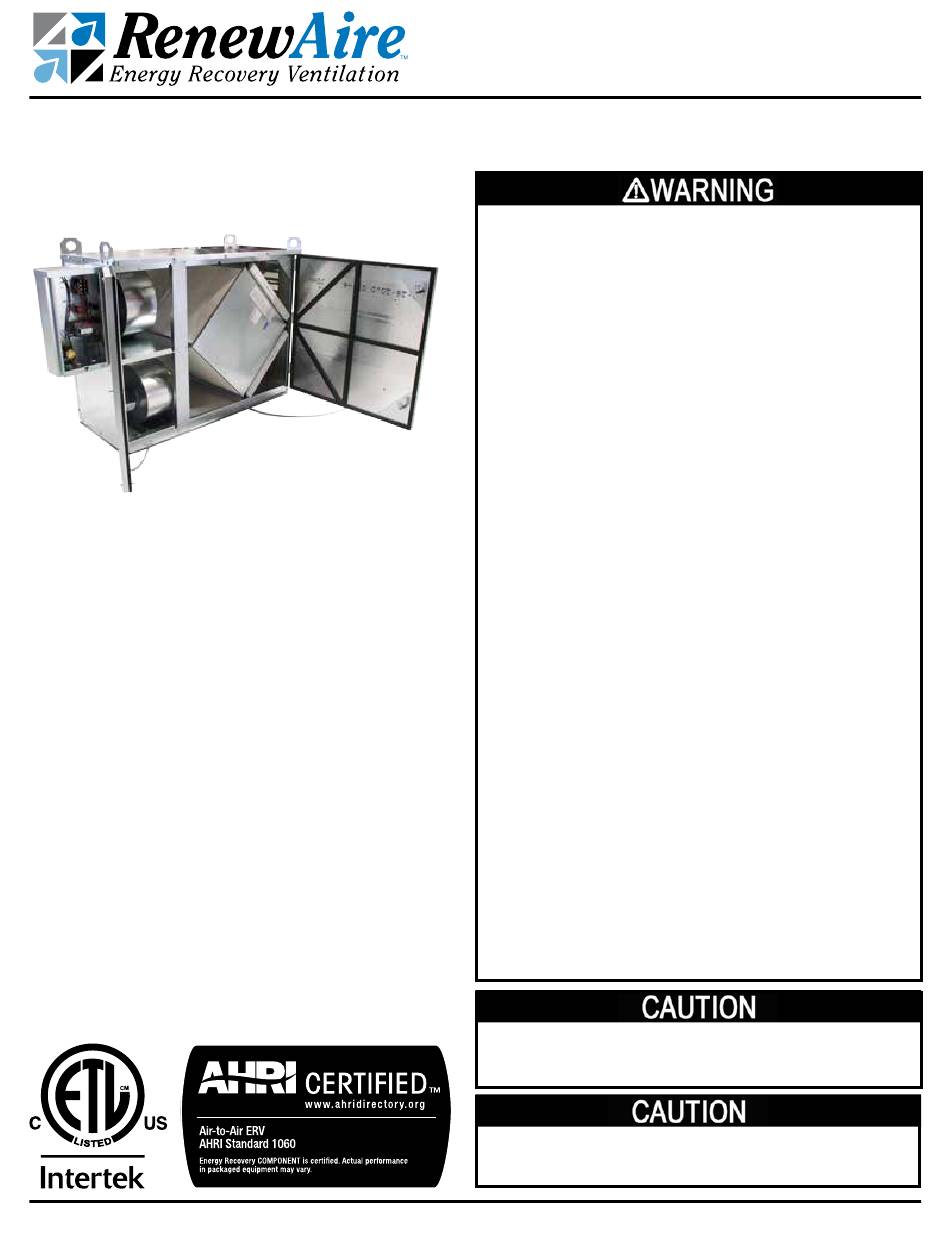

INSTALLATION AND OPERATION MANUAL
HE1XRT
NOTE: Disconnect Switch and 24V Transformer Standard
In 2012, these ERVs may be ordered with new factory-
installed features including Isolation Dampers and
Electronically Commutated Motors (later introduction).
Consult the supplemental Installation and Operation
Manual(s) for these features if supplied.
HE1XRT
Due to continuing product development, specifications are subject to change without notice.
134779_009
HE1XRTMan_Feb14.indd
4510 Helgesen Drive, Madison, WI 53718
(608) 221-4499, (800) 627-4499, Fax: (608) 221-2824
support@renewaire.com www.renewaire.com
RISK OF FIRE, ELECTRIC SHOCK, OR INJURY.
OBSERVE ALL CODES AND THE FOLLOWING:
1. Before servicing or cleaning the unit, switch power
off at disconnect switch or service panel and lock-
out/tag-out to prevent power from being switched on
accidentally. More than one disconnect switch may be
required to de-energize the equipment for servicing.
2. This installation manual
installation method. Additional measures may be
required by local codes and standards.
3. Installation work and electrical wiring must be
done by qualified professional(s) in accordance
with all applicable codes, standards and licensing
requirements.
4. Any structural alterations necessary for installation
must comply with all applicable building, health, and
safety code requirements.
5. This unit must be grounded.
6. Danger of severe injury to bystanders and damage to
unit or property if high winds move this unit. Secure
this unit to the building!
7. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment that might be installed in the area
affected by this equipment. If this unit is exhausting
air from a space in which chimney-vented fuel
burning equipment is located, take steps to assure
that combustion air supply is not affected. Follow the
heating equipment manufacturer's requirements and
the combustion air supply requirements of applicable
codes and standards.
8. Use the unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
9. This unit is intended for general ventilating only. Do
not use to exhaust hazardous or explosive materials
and vapors. Do not connect this unit to range hoods,
fume hoods or collection systems for toxics.
10. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray, construction
dust, etc., out of unit.
Do not remove or disable the wiring interconnection between the
Overload Relays and the Contactors. Without this interconnection
the motor(s) will not be protected against overload.
Revised 02/2014
shows the
© 2014 RenewAire LLC
www.renewaire.com
suggested
Page 1
