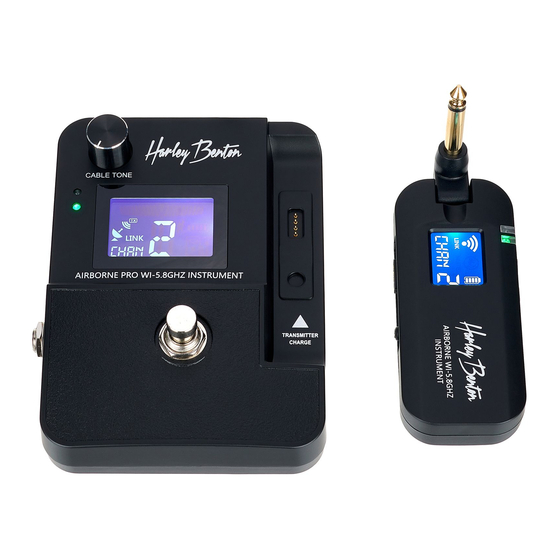

AirBorne Pro Instrument

Safety instructions

Intended use

This device is intended to be used for the wireless transmission of audio signals from
instruments to mixers, amplifiers or active speakers. Any other use or use under other
operating conditions is considered to be improper and may result in personal injury or
property damage. No liability will be assumed for damages resulting from improper use.

Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are
not within reach of babies and young children. Choking hazard! Ensure
that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke! Never let unattended
children use electrical devices.

Electromagnetic compatibility with other electrical equipment

Using the device near radios or TV sets may cause interference. Then increase the dis-
tance between the devices.

Notes on wireless transmission

The system works in the frequency range 5.729 GHz... 5.820 GHz and is free of
charge and registration worldwide.
This device utilizes frequencies that are not harmonized within the European Union
(EU) and therefore may only be used in certain EU member states. In all European
countries, the frequencies used for the transmission of audio signals are strictly regu-
lated. Before you start, make sure the frequencies are allowed in the respective coun-
try and check whether the operation must be reported to the appropriate authority.
For more information, please visit: http://www.thomann.de.
• Make sure that transmitter and receiver are both tuned to the same channel.
• Never set multiple transmitters to the same channel.
• Make sure that there are no metal objects between the transmitter and receiver.
• Avoid interference from other radio or in-ear systems.

Features

• Digital wireless system
• Suitable for all instruments with a 6.35 mm audio jack
• Plug-n-play

Receiver

(
'
&
CABLE TONE
%
$
Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • info@thomann.de
ö
#
9V
) * +

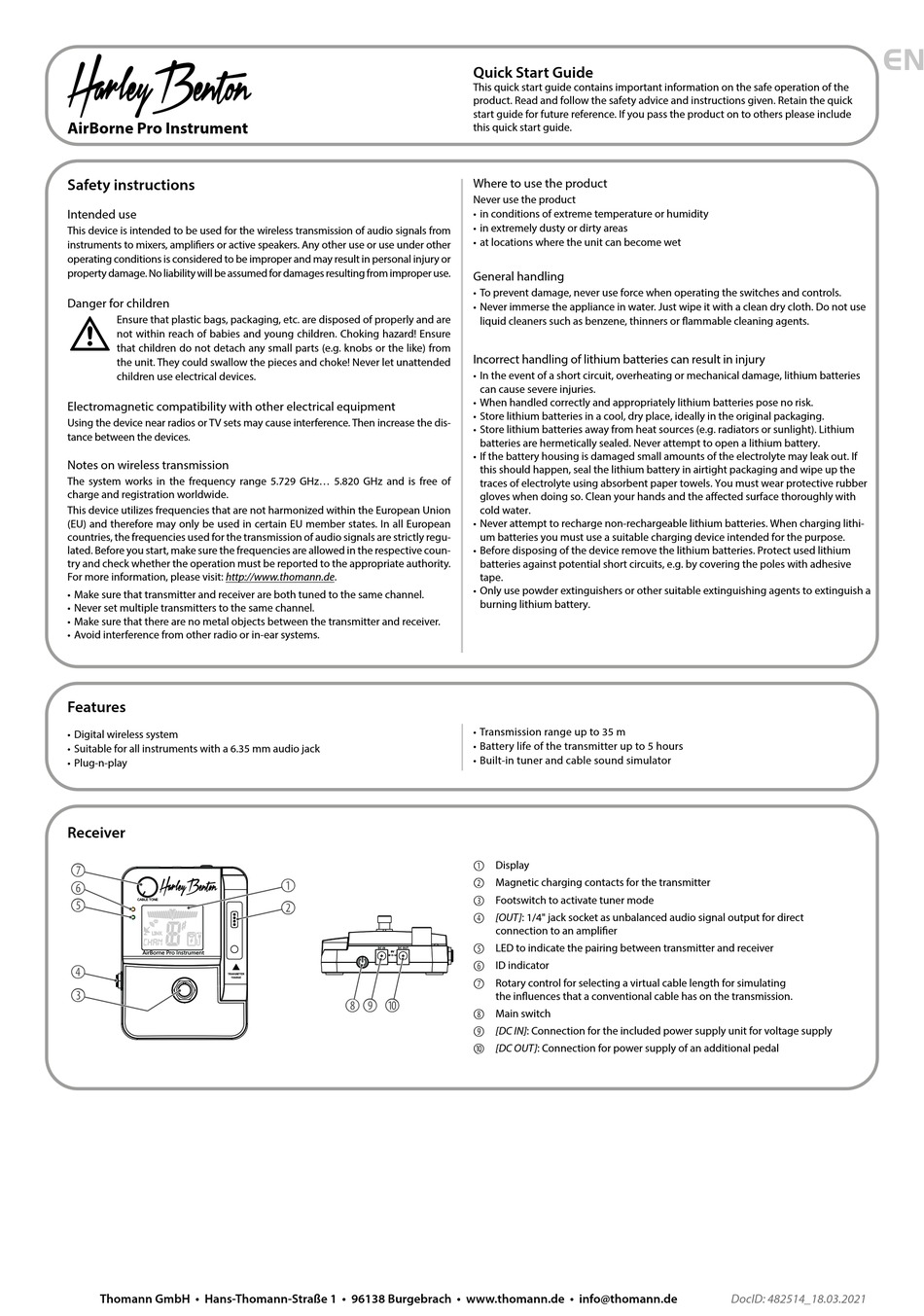

Quick Start Guide
This quick start guide contains important information on the safe operation of the
product. Read and follow the safety advice and instructions given. Retain the quick
start guide for future reference. If you pass the product on to others please include
this quick start guide.

Where to use the product

Never use the product
• in conditions of extreme temperature or humidity
• in extremely dusty or dirty areas
• at locations where the unit can become wet

General handling

• To prevent damage, never use force when operating the switches and controls.
• Never immerse the appliance in water. Just wipe it with a clean dry cloth. Do not use
liquid cleaners such as benzene, thinners or flammable cleaning agents.

Incorrect handling of lithium batteries can result in injury

• In the event of a short circuit, overheating or mechanical damage, lithium batteries
can cause severe injuries.
• When handled correctly and appropriately lithium batteries pose no risk.
• Store lithium batteries in a cool, dry place, ideally in the original packaging.
• Store lithium batteries away from heat sources (e.g. radiators or sunlight). Lithium
batteries are hermetically sealed. Never attempt to open a lithium battery.
• If the battery housing is damaged small amounts of the electrolyte may leak out. If
this should happen, seal the lithium battery in airtight packaging and wipe up the
traces of electrolyte using absorbent paper towels. You must wear protective rubber
gloves when doing so. Clean your hands and the affected surface thoroughly with
cold water.
• Never attempt to recharge non-rechargeable lithium batteries. When charging lithi-
um batteries you must use a suitable charging device intended for the purpose.
• Before disposing of the device remove the lithium batteries. Protect used lithium
batteries against potential short circuits, e.g. by covering the poles with adhesive
tape.
• Only use powder extinguishers or other suitable extinguishing agents to extinguish a
burning lithium battery.
• Transmission range up to 35 m
• Battery life of the transmitter up to 5 hours
• Built-in tuner and cable sound simulator
ö Display
# Magnetic charging contacts for the transmitter
$ Footswitch to activate tuner mode
% [OUT]: 1/4" jack socket as unbalanced audio signal output for direct
connection to an amplifier
& LED to indicate the pairing between transmitter and receiver
' ID indicator
( Rotary control for selecting a virtual cable length for simulating
the influences that a conventional cable has on the transmission.
) Main switch
* [DC IN]: Connection for the included power supply unit for voltage supply
+ [DC OUT]: Connection for power supply of an additional pedal
EN
DocID: 482514_18.03.2021
