Chapter 2: Installation

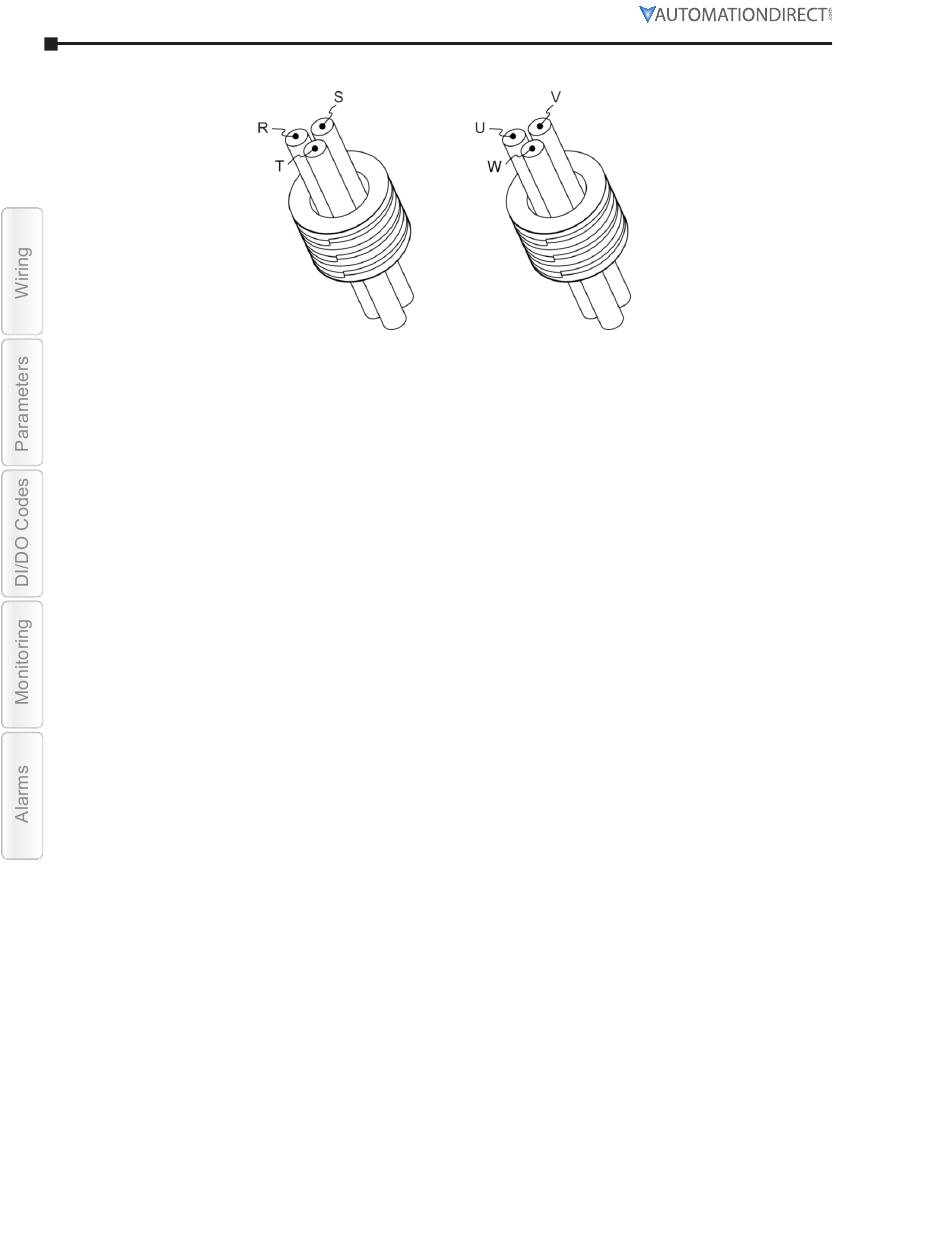

2) When the wire size (AWG) is too large to wrap around the ferrite core at least once:
Notes:
• Please refer to Section 3�2 for the selection of the motor power cable�
• Only the motor power cable or drive power cable can run through ferrite ring� If needed,
please prepare extra ferrite rings for grounding�
• An EMI filter may be required for the drive input power for absorbing radiation when using a
longer motor power cable�
Page 2–8
Recommended for 5.5 kW and larger systems
