PROJECT NAME
TEMPEST
BASED ON
Friedman
BE-OD / Dirty Shirley
®
EFFECT TYPE
Amp-Like Distortion
PROJECT SUMMARY
A pedal recreation of the Friedman

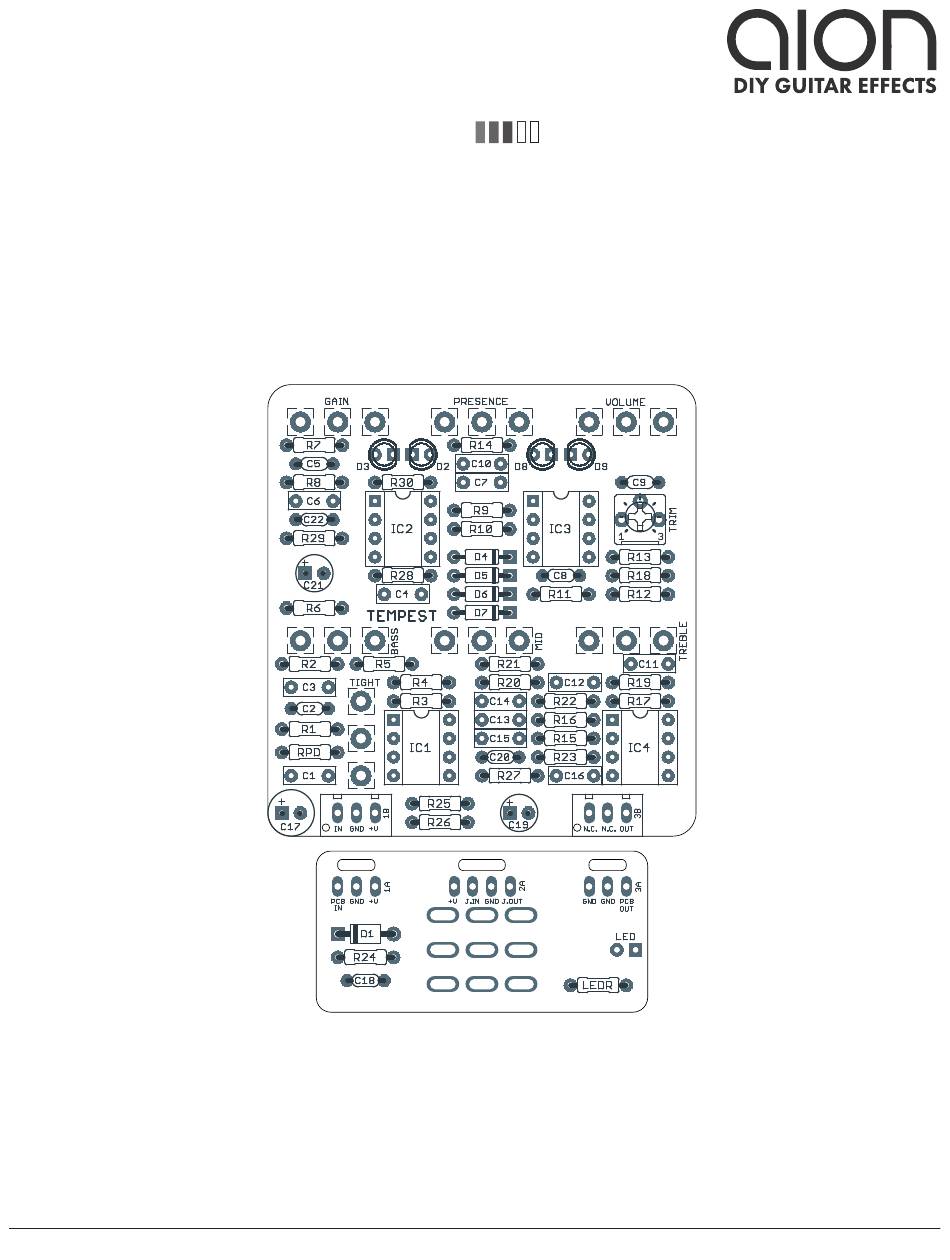

Actual size is 2.3" x 2.42" (main board) and 1.78" x 0.86" (bypass board).
TEMPEST AMP DISTORTION
BUILD DIFFICULTY
DOCUMENT VERSION
1.0.1 (2019-03-08)
®
BE-100 and Dirty Shirley amplifiers.
Intermediate
1
Advertisement
Related Manuals for aion TEMPEST
Summary of Contents for aion TEMPEST
- Page 1 Intermediate EFFECT TYPE DOCUMENT VERSION Amp-Like Distortion 1.0.1 (2019-03-08) PROJECT SUMMARY ® A pedal recreation of the Friedman BE-100 and Dirty Shirley amplifiers. Actual size is 2.3” x 2.42” (main board) and 1.78” x 0.86” (bypass board). TEMPEST AMP DISTORTION...
-
Page 2: Table Of Contents
Tight control as a knob instead of a switch, for a total of seven knobs. USAGE The Tempest has the following controls, which correspond to the same controls on the BE-100 or Dirty Shirley amplifiers. • Gain is the overall distortion or drive level of the effect. -
Page 3: Parts List
Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Power supply filtering resistor. Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W TEMPEST AMP DISTORTION... - Page 4 Fast-switching diode, DO-35 1N914 Fast-switching diode, DO-35 1N914 Fast-switching diode, DO-35 1N914 Fast-switching diode, DO-35 LED, 3mm, red diffused LED, 3mm, red diffused TRIM 100k trimmer Trimmer, 10%, 1/4” Adjusts the overall gain range of the effect. TEMPEST AMP DISTORTION...
- Page 5 Switchcraft 111X or equivalent. 1/4" mono 1/4" phone jack, closed frame Switchcraft 111X or equivalent. 2.1mm DC jack, 2.1mm panel mount Mouser 163-4302-E or equivalent. 3PDT Stomp switch, 3PDT 125B Enclosure, die-cast aluminum Can also use a Hammond 1590N1. TEMPEST AMP DISTORTION...
-
Page 6: Build Notes
Conversely, by turning it down, you can have better control over the low gain range, but the pedal will lack the high-gain tones that you might expect from it. TEMPEST AMP DISTORTION... -
Page 7: Schematic
TL072P 22uF 22uF 100n 100n GND GND GND GND PRESENCE IC3B 10kC IC1A IC3A IC2A TL072P TL072P TL072P IC4A 47pF TL072P 220pF TL072P IC4B 47pF 220k TL072P 100kB TRIM 120pF 100n 1N914 1N914 220n 1N914 1N914 GAIN TEMPEST AMP DISTORTION... -
Page 8: Drill Template
ø9/32” TREBLE BASS x: -0.775, y: +0.535 x: 0, y: +0.535 x: +0.775, y: +0.535 ø9/32” ø9/32” ø9/32” CENTER (0,0) TIGHT x: 0, y: -0.64 ø9/32” FOOTSWITCH x: -0.775, y: -1.775 x: 0, y: -1.775 ø5/16” ø15/32” TEMPEST AMP DISTORTION... -
Page 9: Enclosure Layout
ENCLOSURE LAYOUT Enclosure is shown without jacks. See next page for jack layout and wiring. 125B TEMPEST AMP DISTORTION... -
Page 10: Wiring Diagram
WIRING DIAGRAM NC OUT GND +V +V JACK GND JACK GND GND PCB 125B TEMPEST AMP DISTORTION... -
Page 11: Document Revisions
The guitar effects industry needs more transparency, not less!) DOCUMENT REVISIONS 1.0.1 (2019-03-08) Corrected an error in the drill template measurements. (The graphic was correct, but some of the inch measurements were not.) 1.0.0 (2019-02-01) Initial release. TEMPEST AMP DISTORTION...
