PROJECT NAME
TARANIS
BASED ON
Mr. Black Thunderclaw
EFFECT TYPE
Distortion
PROJECT SUMMARY
A high-voltage drive that goes from clean to high gain, with two EQ bands and active volume control.

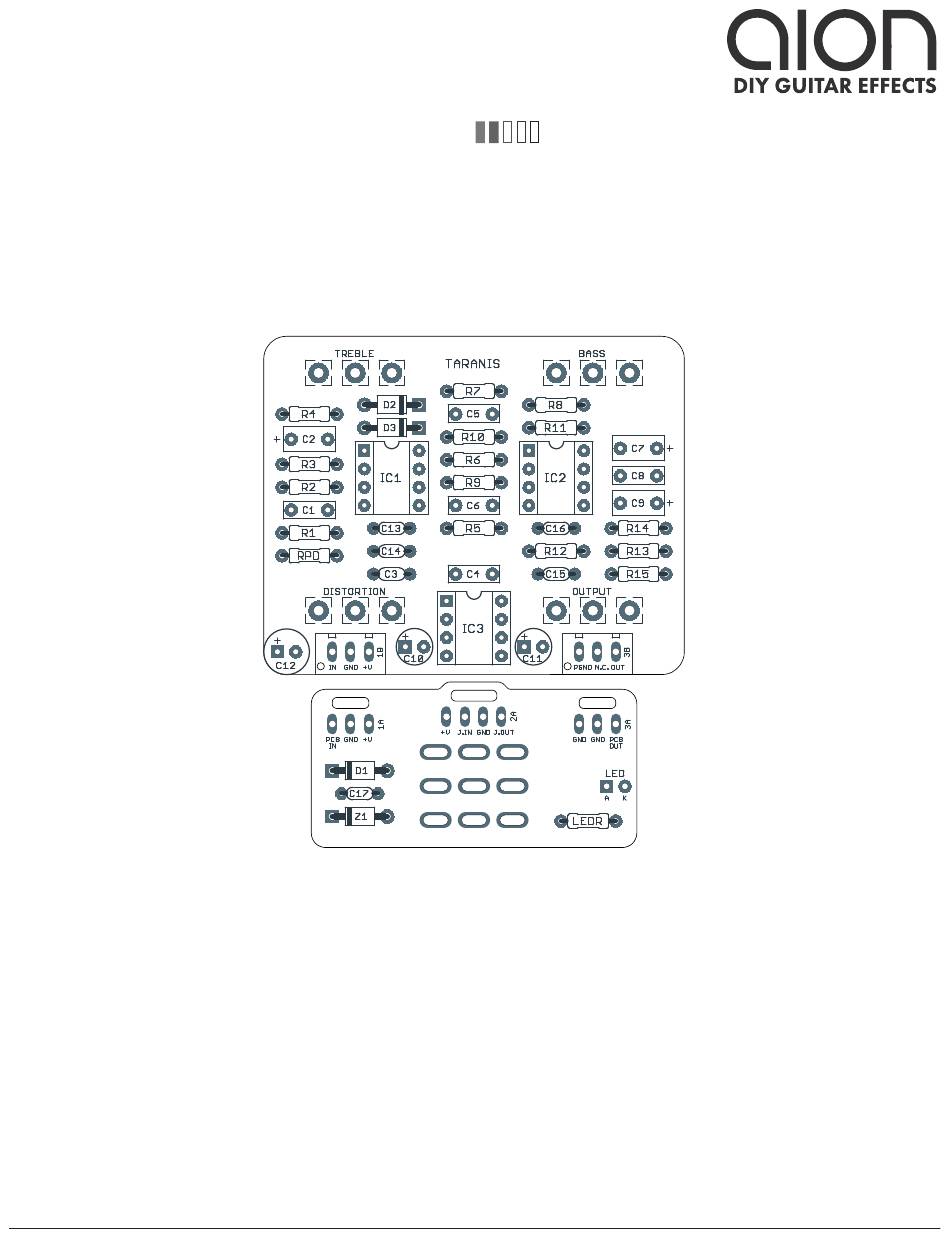

Actual size is 2.3" x 1.86" (main board) and 2.3" x 0.86" (bypass board).
TARANIS DYNAMIC DISTORTION
BUILD DIFFICULTY
Easy
DOCUMENT VERSION
1.0.0 (2024-11-29)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for aion Taranis
Summary of Contents for aion Taranis
- Page 1 Distortion 1.0.0 (2024-11-29) PROJECT SUMMARY A high-voltage drive that goes from clean to high gain, with two EQ bands and active volume control. Actual size is 2.3” x 1.86” (main board) and 2.3” x 0.86” (bypass board). TARANIS DYNAMIC DISTORTION...
-
Page 2: Table Of Contents
1/2V reference voltage. The Taranis is a direct adaptation of the Thunderclaw with no modifications or added features. We have included a zener diode for over-voltage protection as well as some extra power filtering for the ICs, but otherwise it is faithful to the original circuit. -
Page 3: Parts List
Film capacitor, 7.2 x 3.5mm 10uF Electrolytic capacitor, 5mm 47uF Electrolytic capacitor, 5mm Power supply filter capacitor. 100uF Electrolytic capacitor, 6.3mm Power supply filter capacitor. 100n MLCC capacitor, X7R Power supply filter capacitor. 100n MLCC capacitor, X7R Power supply filter capacitor. TARANIS DYNAMIC DISTORTION... - Page 4 DC jack, 2.1mm panel mount Mouser 163-4302-E or equivalent. BATT Battery snap 9V battery snap Optional. Use the soft plastic type—the hard-shell type will not fit. 3PDT Stomp switch, 3PDT 125B Enclosure, die-cast aluminum Can also use a Hammond 1590N1. TARANIS DYNAMIC DISTORTION...
-
Page 5: Build Notes
C13-C16 are local bypass capacitors for each of the ICs. The original unit also did not have these capacitors, but we had extra space on the PCB so we included them. They are optional, but help provide a more theoretically stable power supply, whether or not they makes any difference in practice. TARANIS DYNAMIC DISTORTION... -
Page 6: Schematic
SCHEMATIC 1N5817 100uF 100n 100n 100n LT1054CP 10uF 100n 100n 47uF IC1B IC2A IC2B RC4558P RC4558P RC4558P IC1A RC4558P 1N4001 100n BASS 50kB 47pF GND GND TREBLE 50kB DISTORTION 50kB TARANIS DYNAMIC DISTORTION... -
Page 7: Drill Template
BASS TREBLE x: -0.65, y: +1.71 x: 0.65, y: +1.71 ø9/32” ø9/32” OUTPUT DISTORTION x: -0.65, y: +0.41 x: 0.65, y: +0.41 ø9/32” ø9/32” CENTER (0,0) FOOTSWITCH x: -0.775, y: -1.20 x: 0, y: -1.20 ø5/16” ø15/32” TARANIS DYNAMIC DISTORTION... -
Page 8: Enclosure Layout
ENCLOSURE LAYOUT Enclosure is shown without jacks. See next page for jack layout and wiring. 125B TARANIS DYNAMIC DISTORTION... -
Page 9: Wiring Diagram
GND +V +V JACK GND JACK GND GND PCB 125B Shown with optional 9V battery. If battery is omitted, both jacks can be mono rather than one being stereo. Leave the far-right lug of the DC jack unconnected. TARANIS DYNAMIC DISTORTION... -
Page 10: Document Revisions
(In other words: you don’t have to go out of your way to advertise the fact that you use these PCBs, but please don’t go out of your way to hide it. The guitar effects industry needs more transparency, not less!) DOCUMENT REVISIONS 1.0.0 (2024-11-29) Initial release. TARANIS DYNAMIC DISTORTION...
