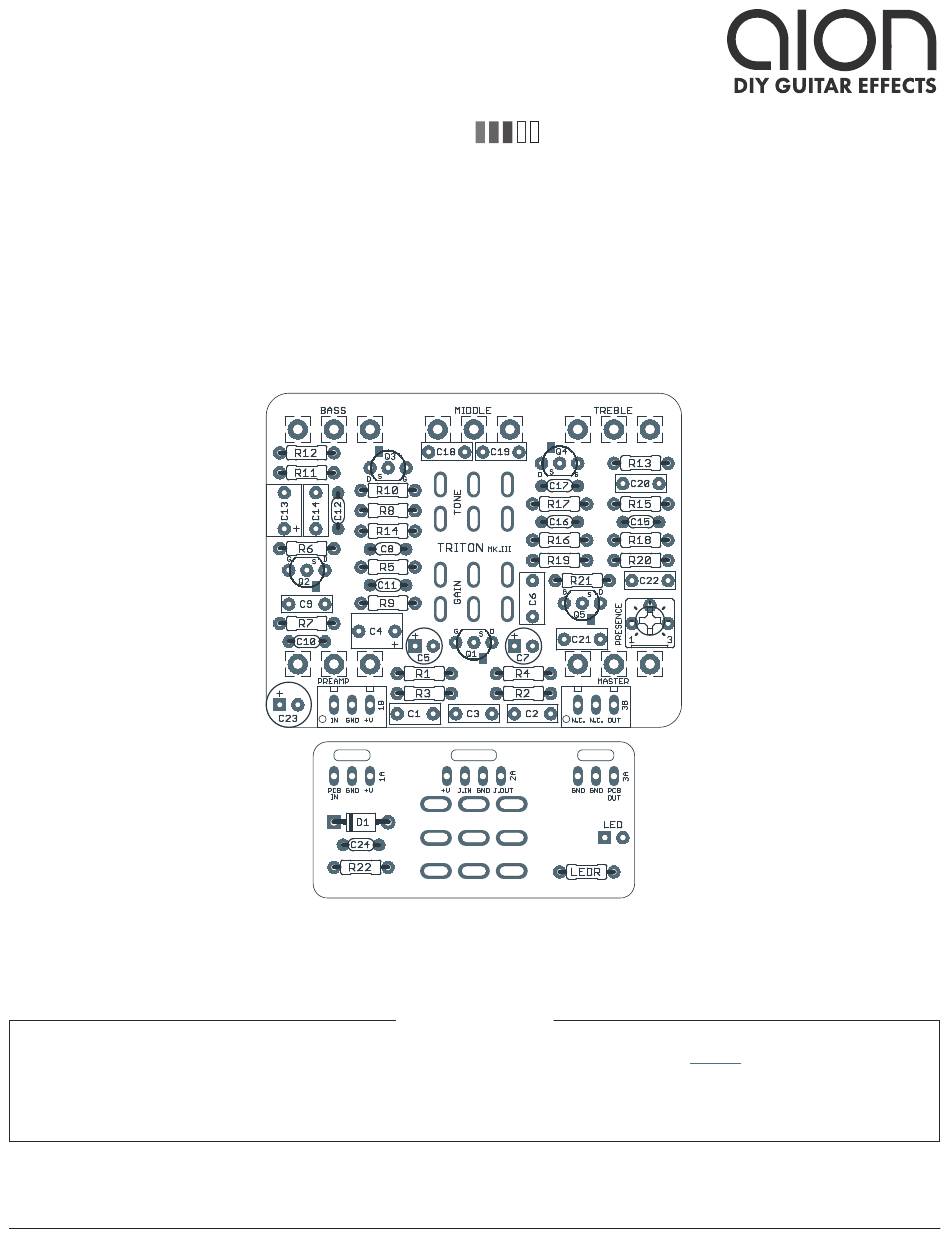

PROJECT NAME
TRITON MK. III
BASED ON
Catalinbread
Dirty Little Secret V3
®
EFFECT TYPE
Overdrive / Amp Emulation
PROJECT SUMMARY
An adaptation of the classic Marshall
place of tubes for amp-like tone in a small box.

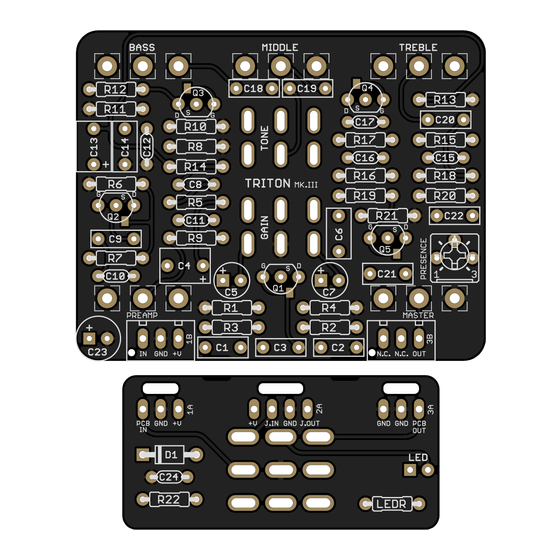

Actual size is 2.3" x 1.86" (main board) and 1.78" x 0.87" (bypass board).
This documentation is for the Mk. III version of the project. There is also a
the Dirty Little Secret Mk. II. While the name is similar, the circuit and part numbering are different.
Please be sure your PCB is labeled "Triton Mk. III" before proceeding with this build document.
TRITON PREAMP DRIVE MK. III
BUILD DIFFICULTY
DOCUMENT VERSION
1.0.1 (2021-02-19)
amplifiers from the 1960s. It uses cascaded mu-amp stages in
®
IMPORTANT NOTE
Intermediate
Mk. II
version, based on
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for aion TRITON MK. III
Summary of Contents for aion TRITON MK. III
- Page 1 Dirty Little Secret Mk. II. While the name is similar, the circuit and part numbering are different. Please be sure your PCB is labeled “Triton Mk. III” before proceeding with this build document. TRITON PREAMP DRIVE MK. III...
-
Page 2: Table Of Contents
However, it also generates more than enough drive on its own and can be used as a standalone overdrive pedal just like any other. The original DLS Mk. III used MPF4393 JFETs, which are no longer produced. Aion FX sells the original MPF4393 in sets of 5. -
Page 3: Parts List
PARTS LIST This parts list is also available in a spreadsheet format which can be imported directly into Mouser for easy parts ordering. Mouser doesn’t carry all the parts (most notably potentiometers) so the second tab lists all the non-Mouser parts as well as sources for each. →... - Page 4 PARTS LIST, CONT. PART VALUE TYPE NOTES (omit) Formula 5F6: 4.7uF electrolytic 220pF MLCC capacitor, NP0/C0G Film capacitor, 7.2 x 2.5mm 47pF MLCC capacitor, NP0/C0G Formula 5F6: 100pF 470pF MLCC capacitor, NP0/C0G Formula 5F6: (omit) 470pF MLCC capacitor, NP0/C0G Formula 5F6: (omit) 2.2uF Film capacitor, 7.2 x 5mm Formula 5F6: 1uF...
-
Page 5: Build Notes
All surface-mount JFETs use the same pinout, so this configuration will fit any type that we’re aware of. However, always check the datasheet if you’re uncertain—they’re difficult to desolder if you make a mistake. MPF4393s from Aion FX We have a large quantity of through-hole MPF4393 and should be able to provide them in hobbyist quantities for the foreseeable future. -
Page 6: Schematic
SCHEMATIC Schematic shown with original Dirty Little Secret Mk. III values. Alternate values for DLS Red and Formula 5F6 can be found in the parts list. 100R 5817 100uF 100n MPF4393 220pF TONE B 470pF MPF4393 100k GAIN B MPF4393 TONE A 470pF 220n... -
Page 7: Drill Template
DRILL TEMPLATE Cut out this drill template, fold the edges and tape it to the enclosure. Before drilling, it’s recommended to first use a center punch for each of the holes to help guide the drill bit. Ensure that this template is printed at 100% or “Actual Size”. You can double-check this by measuring the scale on the printed page. -
Page 8: Enclosure Layout
ENCLOSURE LAYOUT Enclosure is shown without jacks. See next page for jack layout and wiring. 125B TRITON PREAMP DRIVE MK. III... -
Page 9: Wiring Diagram
WIRING DIAGRAM N.C. N.C. OUT GND +V +V JACK GND JACK GND GND PCB 125B TRITON PREAMP DRIVE MK. III... -
Page 10: Document Revisions
LICENSE & USAGE No direct support is offered for these projects beyond the provided documentation. It’s assumed that you have at least some experience building pedals before starting one of these. Replacements and refunds cannot be offered unless it can be shown that the circuit or documentation are in error. All of these circuits have been tested in good faith in their base configurations.
