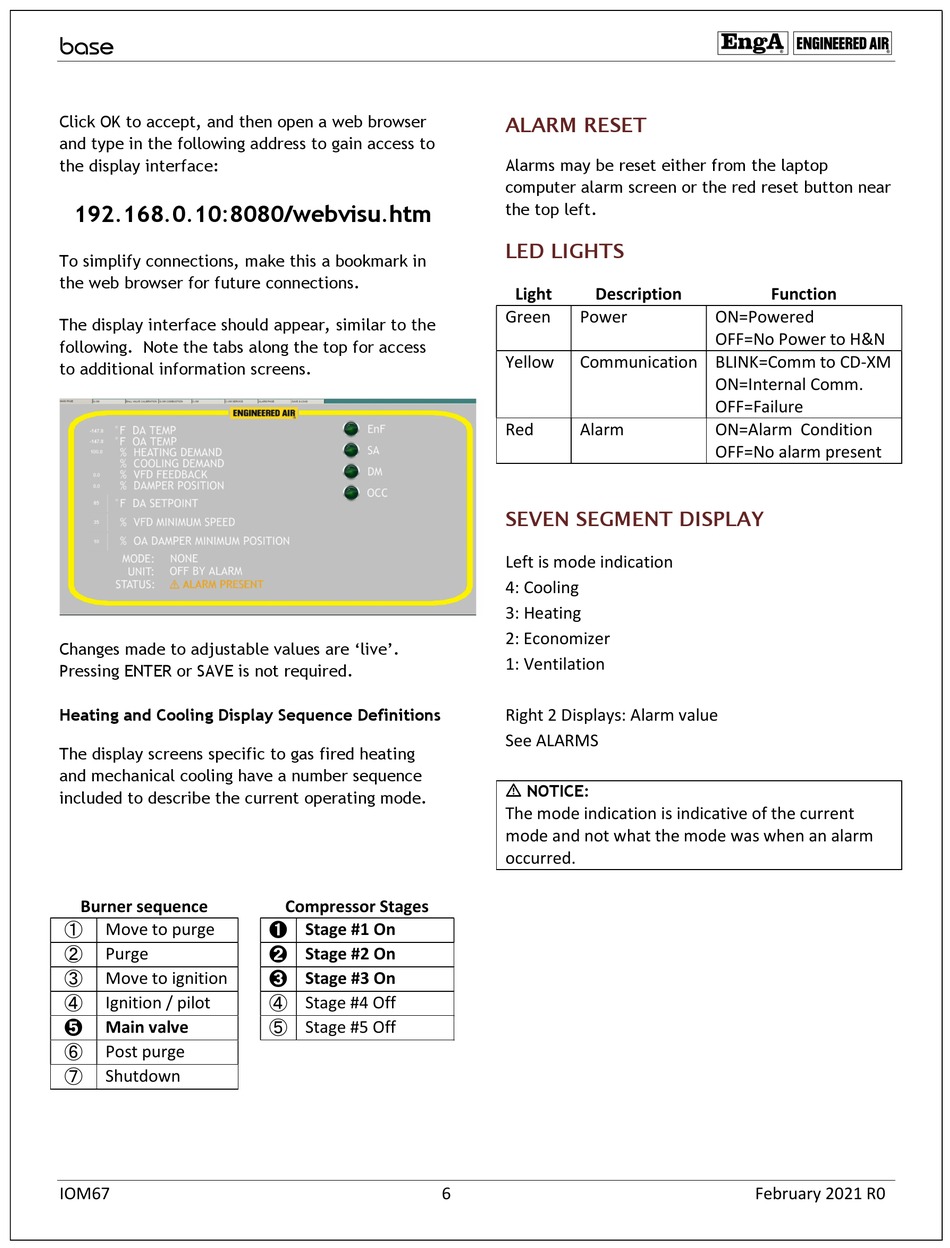

Click OK to accept, and then open a web browser
and type in the following address to gain access to
the display interface:
192.168.0.10:8080/webvisu.htm
To simplify connections, make this a bookmark in
the web browser for future connections.
The display interface should appear, similar to the
following. Note the tabs along the top for access
to additional information screens.
Changes made to adjustable values are 'live'.
Pressing ENTER or SAVE is not required.
Heating and Cooling Display Sequence Definitions
The display screens specific to gas fired heating
and mechanical cooling have a number sequence
included to describe the current operating mode.
Burner sequence
Move to purge
①
Purge
②
Move to ignition
③
Ignition / pilot
④
Main valve
➎
Post purge
⑥
Shutdown
⑦
IOM67
Compressor Stages
➊ Stage #1 On
➋ Stage #2 On
➌ Stage #3 On
④ Stage #4 Off
⑤ Stage #5 Off
6

ALARM RESET

Alarms may be reset either from the laptop
computer alarm screen or the red reset button near
the top left.

LED LIGHTS

Light Description
Green Power
Yellow Communication BLINK=Comm to CD-XM
Red Alarm

SEVEN SEGMENT DISPLAY

Left is mode indication
4: Cooling
3: Heating
2: Economizer
1: Ventilation
Right 2 Displays: Alarm value
See ALARMS
m NOTICE:
The mode indication is indicative of the current
mode and not what the mode was when an alarm
occurred.
Function
ON=Powered
OFF=No Power to H&N
ON=Internal Comm.
OFF=Failure
ON=Alarm Condition
OFF=No alarm present
