ABB SINGLE DRIVES
ACS880-01/04 +C132 marine type-
approved drives
Supplement

Advertisement

Table of Contents
loading

Related Manuals for ABB ACS880-01

Summary of Contents for ABB ACS880-01

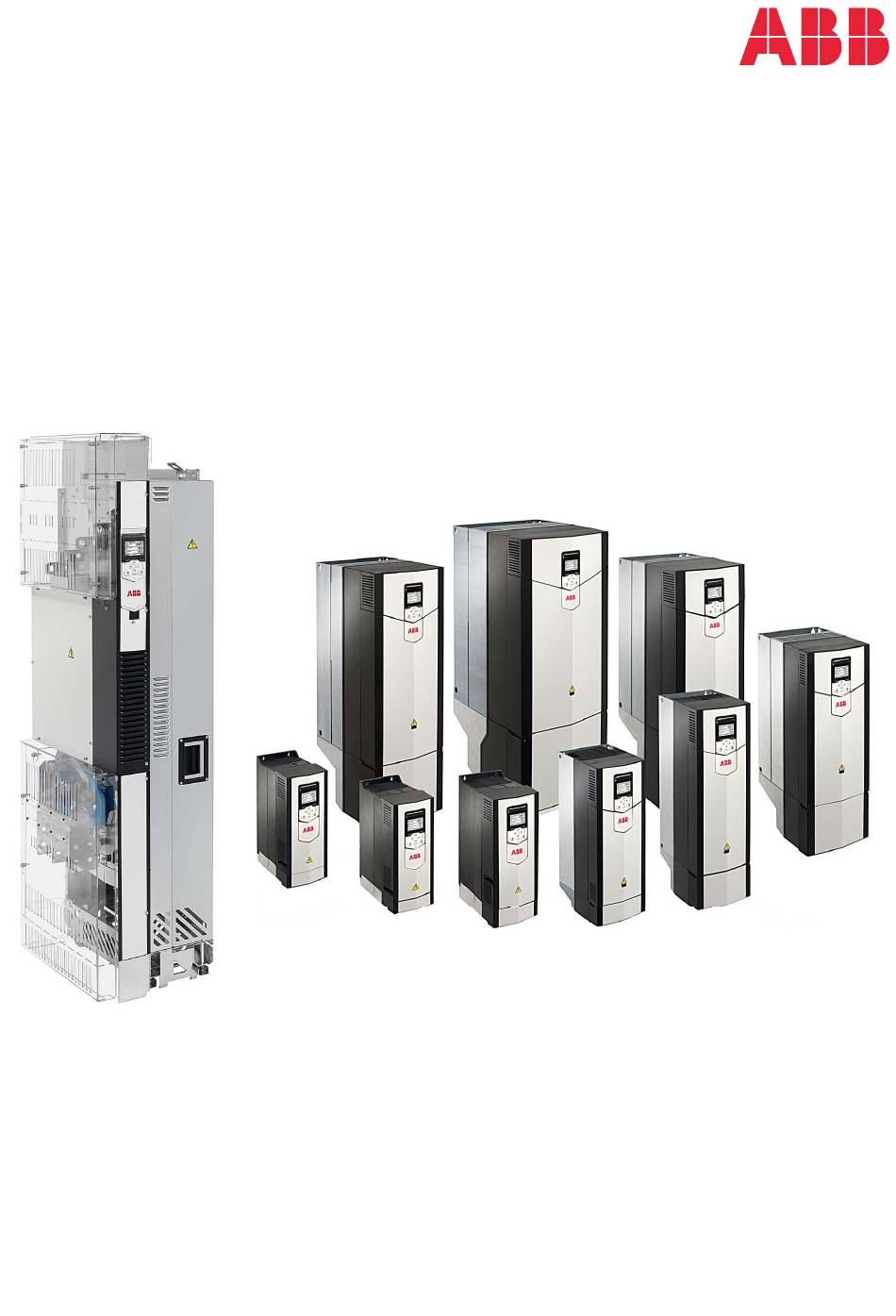

  • Page 1 — ABB SINGLE DRIVES ACS880-01/04 +C132 marine type- approved drives Supplement...
  • Page 2 —...
  • Page 3 Supplement ACS880-01/04 +C132 marine type-approved drives Table of contents  2018 ABB Oy. All Rights Reserved. 3AXD50000010521 Rev D EFFECTIVE: 2018-11-07...

  • Page 5: Table Of Contents

    UL (NEC) RATINGS – ACS880-01 +C132 ....... . . 16...

  • Page 7: Acs880-01/04 +C132 Marine Type-Approved Drives

    Safety instructions Obey all safety instructions of the drive. Read the safety instructions before you install, start up or use the drive. See ACS880-01 hardware manual (3AUA0000078093 [English]) or ACS880-04 drive modules hardware manual (3AUA0000128301 [English]). Introduction to the manual ...

  • Page 8: Related Manuals

    Drive hardware manuals and guides Code (English) ACS880-01 drives hardware manual 3AUA0000078093 ACS880-01 drives for SYnRM motors (0.8 to 200 kW) supplement 3AXD50000029482 ACS880-01 quick installation guide for frames R1 to R3 3AUA0000085966 ACS880-01 quick installation guide for frames R4 and R5...
  • Page 9 ACS880-01/04 +C132 marine type-approved drives 9 The codes below open an online listing of the manuals applicable to this product. ACS880-01 manuals ACS880-04 manuals...

  • Page 10: Product Overview - Acs880-01 +C132

    10 ACS880-01/04 +C132 marine type-approved drives Product overview – ACS880-01 +C132 The ACS880-01 +C132 is a marine type-approved ACS880-01 drive. The marine type-approved drive covers all common input voltages used in the marine environment, also marine specific 440 V voltage.

  • Page 11: Type Code Designation

    (3AXD50000013389 [English]).  Cabinet installation of frame sizes R1 to R9 The drive can be installed into a cabinet without vibration dampers. See ACS880-01 cabinet installation supplement (3AUA0000145446 [English]).  Cabinet installation of frame sizes R10 and R11...

  • Page 12: Electrical Installation

    (option +P940), hang the ring on the cabinet structure. For instructions, see the applicable installation guide: • Common mode filter kit for ACS880-01 drives (frame R6, option +E208) installation guide (3AXD50000015178 [English]) • Common mode filter kit for frames R7 and R8, option +E208 installation guide (3AXD50000015179 [English]) •...

  • Page 13: Technical Data

    Technical data  Ratings – ACS880-01 +C132 The nominal ratings for marine type-approved ACS880-01 drives with 50 Hz and 60 Hz supply at an ambient temperature of 45 °C (113 °F) are given below. The symbols are described on page 18.
  • Page 14 14 ACS880-01/04 +C132 marine type-approved drives IEC RATINGS – ACS880-01 +C132 Drive Frame Input Max. Output ratings type size rating current Nominal use Light-overload Heavy-duty use ACS880- 017A-3 025A-3 032A-3 18.5 038A-3 18.5 18.5 045A-3 061A-3 072A-3 087A-3 105A-3 145A-3...
  • Page 15 ACS880-01/04 +C132 marine type-approved drives 15 IEC RATINGS – ACS880-01 +C132 Drive Frame Input Max. Output ratings type size rating current Nominal use Light-overload Heavy-duty use ACS880- 077A-5 096A-5 124A-5 156A-5 180A-5 240A-5 240* 260A-5 361A-5 361 ** 414A-5 = 690 V 12.2...

  • Page 16: Ul (Nec) Ratings - Acs880-01 +C132

    16 ACS880-01/04 +C132 marine type-approved drives IEC RATINGS – ACS880-01 +C132 Drive Frame Input Max. Output ratings type size rating current Nominal use Light-overload Heavy-duty use ACS880- 210A-7 271A-7 UL (NEC) RATINGS – ACS880-01 +C132 Drive Frame Input Max. Output ratings...
  • Page 17 ACS880-01/04 +C132 marine type-approved drives 17 UL (NEC) RATINGS – ACS880-01 +C132 Drive Frame Input Max. Output ratings type size rating cur- Light-overload use Heavy-duty use rent ACS880- 343A-4 393A-4 343** = 460 V 02A1-5 0.75 1.00 0.55 0.75 03A0-5 0.75...

  • Page 18: Definitions - Acs880-01

    18 ACS880-01/04 +C132 marine type-approved drives UL (NEC) RATINGS – ACS880-01 +C132 Drive Frame Input Max. Output ratings type size rating cur- Light-overload use Heavy-duty use rent ACS880- 027A-7 18.5 07A3-7 12.2 09A8-7 14A2-7 018A-7 022A-7 18.5 026A-7 18.5 035A-7...
  • Page 19 Note 2: To achieve the rated motor power given in the table, the rated current of the drive must be higher than or equal to the rated motor current. ABB recommends DriveSize dimensioning tool for selecting the drive, motor and gear combination.

  • Page 20: Ratings - Acs880-04 +C132

    20 ACS880-01/04 +C132 marine type-approved drives  Ratings – ACS880-04 +C132 The nominal ratings for marine type-approved ACS880-04 drive modules with 50 Hz and 60 Hz supply at an ambient temperature of 45 °C (113 °F) are given below. The symbols are described on page 21.

  • Page 21: Definitions - Acs880-04

    ACS880-01/04 +C132 marine type-approved drives 21 UL (NEC) RATINGS – ACS880-04 +C132 Drive Frame Input Max. current Output ratings module size rating Light-overload use Heavy-duty use type max_ ACS880- start = 460 503A-5 583A-5 635A-5 715A-5 1100 820A-5 1020 1100...

  • Page 22: Ambient Temperature Derating

    Note 2: To achieve the rated motor power given in the table, the rated current of the drive must be higher than or equal to the rated motor current. ABB recommends DriveSize dimensioning tool for selecting the drive, motor and gear combination. ...

  • Page 23: Acs880-01 Ip55 (Ul Type 12) Drive Types -274A-2, 293A-3, -247A-4, -260A-5, -302A-5 And -174A-7

    ACS880-01/04 +C132 marine type-approved drives 23 ACS880-01 IP55 (UL Type 12) drive types -274A-2, 293A-3, -247A-4, -260A-5, - 302A-5 and -174A-7 In the temperature range +40…45 °C (+104…113 °F), the rated output current is derated by 1% for every added 1 °C (1.8 °F).

  • Page 24: Acs880-01 Ip55 (Ul Type 12) Drive Types -228A-4 And -240A-5

    24 ACS880-01/04 +C132 marine type-approved drives ACS880-01 IP55 (UL Type 12) drive types -228A-4 and -240A-5 In the temperature range +40…50 °C (+104…122 °F), the rated output current is derated by 1% for every added 1 °C (1.8 °F). In the temperature range +50…55 °C (+122…131 °F), the rated output current is derated by 2.5% for every added 1 °C (1.8 °F).

  • Page 25: Acs880-01 Ip55 (Ul Type 12) Drive Types -363A-3, -343A-4 And -361A-5

    ACS880-01/04 +C132 marine type-approved drives 25 ACS880-01 IP55 (UL Type 12) drive types -363A-3, -343A-4 and -361A-5 In the temperature range +40…45 °C (+104…113 °F), the rated output current is derated by 1% for every added 1 °C (1.8 °F).

  • Page 26: Acs880-01 Ip55 (Ul Type 12) Drive Type -210A-7

    Applicable standards See the hardware manual.  Marine type approvals You can find the ACS880-01 and ACS880-04 marine type approval certificates on the Internet. Go to www.abb.com/drives and select Document Library. Browse or enter selection criteria in the search field.
  • Page 27 Address any inquiries about the product to your local ABB representative, quoting the type designation and serial number of the unit in question. A listing of ABB sales, support and service contacts can be found by navigating to abb.com/searchchannels. Product training For information on ABB product training, navigate to new.abb.com/service/training.
  • Page 28 © Copyright 2018 ABB. All rights reserved. Specifications subject to change without notice.
