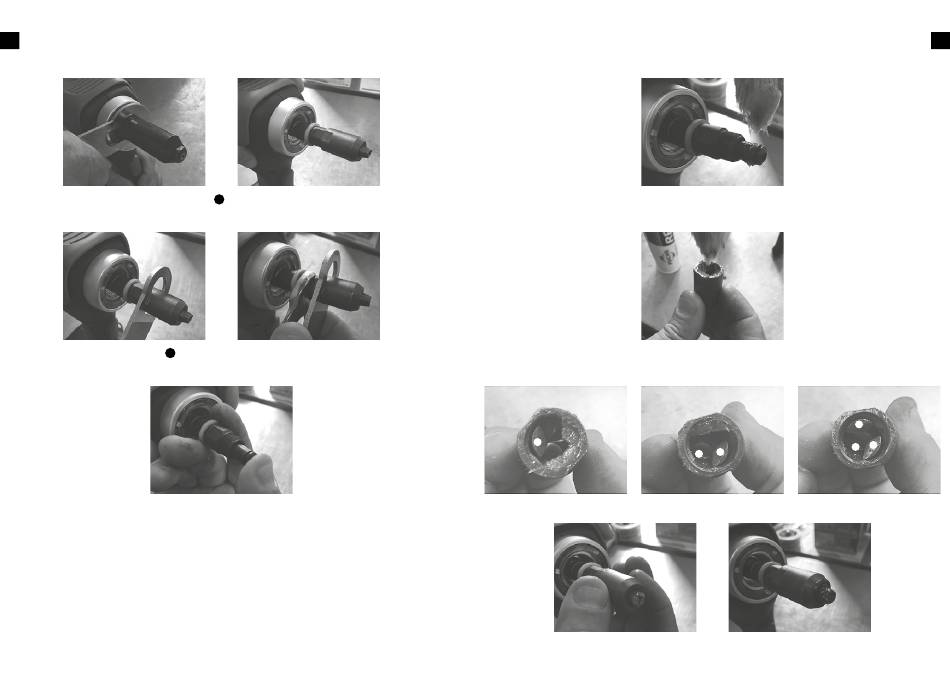

REPLACING JAW SETS
FR
PL
CZ
1.
Use the special wrench
2.
2
Use the special wrench
+ the SW14 wrench to unscrew the clamping sleeve
3.
Push the mandrel discharge tube to check the presence of the spring
8 •
ELEMENT FIVE - User Manual
1
to unscrew the front nozzle.
4.
Lubricate the discharge tube
5.
Remove the set of wom clamping jaws and lubricate inside the clamping sleeve
1
1
6.
Put the clamping jaws inside the clamping sleeve
7.
Screw the clamping sleeve on the tool
3
2
1
2
ELEMENT FIVE - User Manual
EN
FR
PL
CZ
• 9
