Installation: Rear Facing
Rear Facing
Lap-Shoulder Belt Installation
•

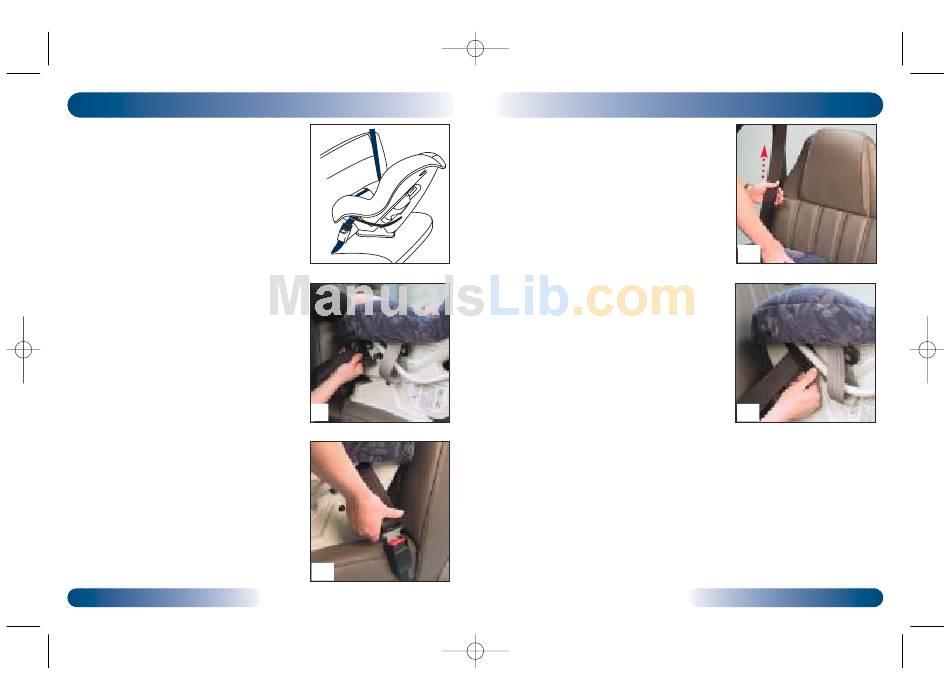

Figure A illustrates a typical rear facing
lap-shoulder belt installation.
•
When not in use, always store the LATCH
connectors in storage pouches sewn in
cover above rear facing lock-offs.
1
Place the child restraint rear facing and
in full recline position on the vehicle
seat.
2
Open rear facing lock-off farthest from
where the vehicle belt will be buckled.
3
Pull the vehicle belt out, then pass it through
the first rear facing belt slot (Fig. B).
•
The vehicle belt can be routed over or
under the cover.
4
Route vehicle belt behind and under
the buckle strap, then through the
second rear facing belt slot.
5
Verify that the vehicle belt is not
twisted, then buckle (Fig. C).
6
Push the restraint firmly into the seat
while removing slack from the lap
portion of the vehicle belt, then the
shoulder portion (Fig. D).
12
12:18 PM
Page 14
A
B
C
7
Position both sections of vehicle belt
through the rear facing lock-off
farthest from vehicle buckle, then
close lock-off arm (Fig. E).
•
Lock-off is properly closed when a
positive click is heard.
•
To prevent breakage, never bend the lock-
off arm up or down.
8
Verify that the vehicle belt is tight and
the child restraint is stable.
•
Installation can be improved by the use of
®
the Versa-Tether
(see pages 23–25).
NOTE:
•
The back angle of the child restraint
should not exceed 45º when
properly installed in the rear facing
position.
•
If there is a problem stabilizing the child
restraint, place a rolled towel in the
crease of the vehicle seat to help level
the child restraint base.
WARNING:
Only raise restraint as described above. Do not raise the
restraint off of the front edge of vehicle seat; doing so will reduce
the protection for your child.
R R e e m m o o v v a a l l : :
Open lock-offs, then unbuckle and remove vehicle belt from belt
path. Disconnect Versa-Tether
®
, if attached.
