Summary of Contents for Geutebruck Guardian 704 ILB
- Page 1 Guardian 704 ILB Container Code Reading Solution Installation / EN...
-
Page 2: Preamble
Guardian 704 ILB Preamble This manual contains all the information concerning the installation and the use of Globalproof Guardian 704 ILB. All the information in this document are provided for information purpose and can be modified without any notice. Copyright All rights reserved. -
Page 3: Table Of Contents
Installation Guardian 704 ILB Table of contents Preamble ............................. 2 Suggestions to improve the quality of the installation ................4 Mounting instructions ........................... 6 Fixing and orientation of the camera ....................6 Optical configuration ......................... 7 Electrical and LAN connections ......................8 First Power On ............................. -
Page 4: Suggestions To Improve The Quality Of The Installation
Installation Guardian 704 ILB Suggestions to improve the quality of the installation All the suggestions provided here are derived by feedbacks from our installers that already encountered on field issues similar to the issues you could encounter within your installation. To respect these suggestions could simplify the configuration and make the camera able to provide optimal results. - Page 5 Installation Guardian 704 ILB Here we are showing a practical example of an application of Guardian 704 ILB. The application you will realize, must adheres as much as possible to the proposed example, to obtain the best results. The installation type A is the one that obtains the better performances.
-
Page 6: Mounting Instructions

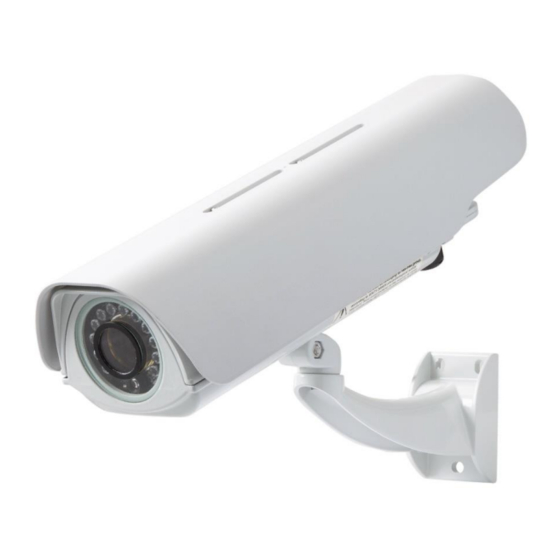

Fixing and orientation of the camera If the Guardian 704 ILB could be installed only on a pole, it is necessary to purchase the specific pole mount adapter. The lens is normally pre-adjusted, to cover the type of installation. With this pre-adjust, the camera, when properly installed, can read the ILU-BIC codes in all situations. -
Page 7: Optical Configuration
Guardian 704 ILB Optical configuration Fig. Guardian 704 ILB is provided with an IR varifocal lens with range 5-55 mm (11x), F 1,4, and manual iris. Globalproof provide the product with a pre-adjusted lens, concerning the type of installation you declared in the purchase order. -
Page 8: Electrical And Lan Connections
Installation Guardian 704 ILB Electrical and LAN connections To connect the power supply and the LAN, it’s necessary to open the housing. ▪ Unscrew the two screws under the case, to open it as a “book”. ▪ Unscrew the screw (b) that locks the power supply unit and turn it anticlockwise, as shown in the fig. -
Page 9: First Power On
Installation Guardian 704 ILB First Power On To enter in the main HTTP page of the camera, it’s necessary that the PC you are using could be placed in the same subnet of the camera ( default IP is 192.168.0.1), none authentication credentials). - Page 10 Installation Guardian 704 ILB...
-
Page 11: First Access To The Web Page
Installation Guardian 704 ILB First Access to the Web Page Inserting the IP address in your preferred web browser, you will get into the home-page of the camera (Live page) and you will see immediately what the camera is framing. -
Page 12: Examples Of Reading From Different Installation Position
Installation Guardian 704 ILB Examples of reading from different installation position From Rear - Top position From Rear – Side position From Top position... -
Page 13: Selea Plugin Dokumentation
Installation Guardian 704 ILB Selea Plugin Dokumentation... -
Page 14: Introduction Selea Plugin
Installation Guardian 704 ILB Introduction Selea Plugin The SELEA interface from Geutebrück connects the Selea camera from a “Global Proof Guardian 704 ILB ACCR-System” with a G-CORE server. The camera detects on the top, front or rear side of a sea container the horizontal and vertical number. -
Page 15: Settings Selea Plugin
Installation Guardian 704 ILB Settings Selea Plugin Some setting must be done for proper functionality. Camera Setting General Setting If these switches are not set, then the XML string is different... -
Page 16: Ftp Connects
Installation Guardian 704 ILB FTP connects If this is not set, no pictures are available... -
Page 17: Xml Connects
Installation Guardian 704 ILB XML connects If this switch is not set, no XML string is sending, and no action is fired. -
Page 18: Action Settings
Installation Guardian 704 ILB Action settings Image notify: Copy picture to FTP server Text notify: Create XML event Snapshot: Create picture inside camera storage (obsolete). -
Page 19: Plugin Settings
Installation Guardian 704 ILB Plugin Settings Custom Actions : (not used) FTP Server image path The plugin is searching in this path for pictures corresponding to a NPR recognition action. FTP Server timeout in sec If no picture is found after this time frame a default picture will be used and then the NPR recognition action is fired. -
Page 20: Project Planning - Specifications
Installation Guardian 704 ILB Project Planning - Specifications Dimensions (cable managed) mm:... - Page 21 Installation Guardian 704 ILB...
- Page 22 Installation Guardian 704 ILB Technical alterations reserved. GEUTEBRÜCK GmbH Im Nassen 7-9 | D-53578 Windhagen Tel. +49 (0)2645 137-0 | Fax-999 info@geutebrueck.com www.geutebrueck.com...
