Klauke Q8/95 Series Quick Start Manual

Hydraulic crimping tool

Table of Contents

Download this manual

 Introduction

The Q8/95 series hydraulic crimping tool is an efficient tool for crimping lugs, terminals,or

conductorson a cable. Before using the tool, please read these instructions carefully.

Mounting and disassembling the tool should be performed only by a trained professional.

 Part list and Assembly diagram

Part#

Hydraulic Crimping Tool

Handle

Oil pump core

Inlet valve

Delivery valve

(O-Ring/ Ring)*

Piston

Crimping Dies

Piston Spring

Oil return switch

Return screw

Qty

Table of Contents

Need help?

Do you have a question about the Q8/95 Series and is the answer not in the manual?

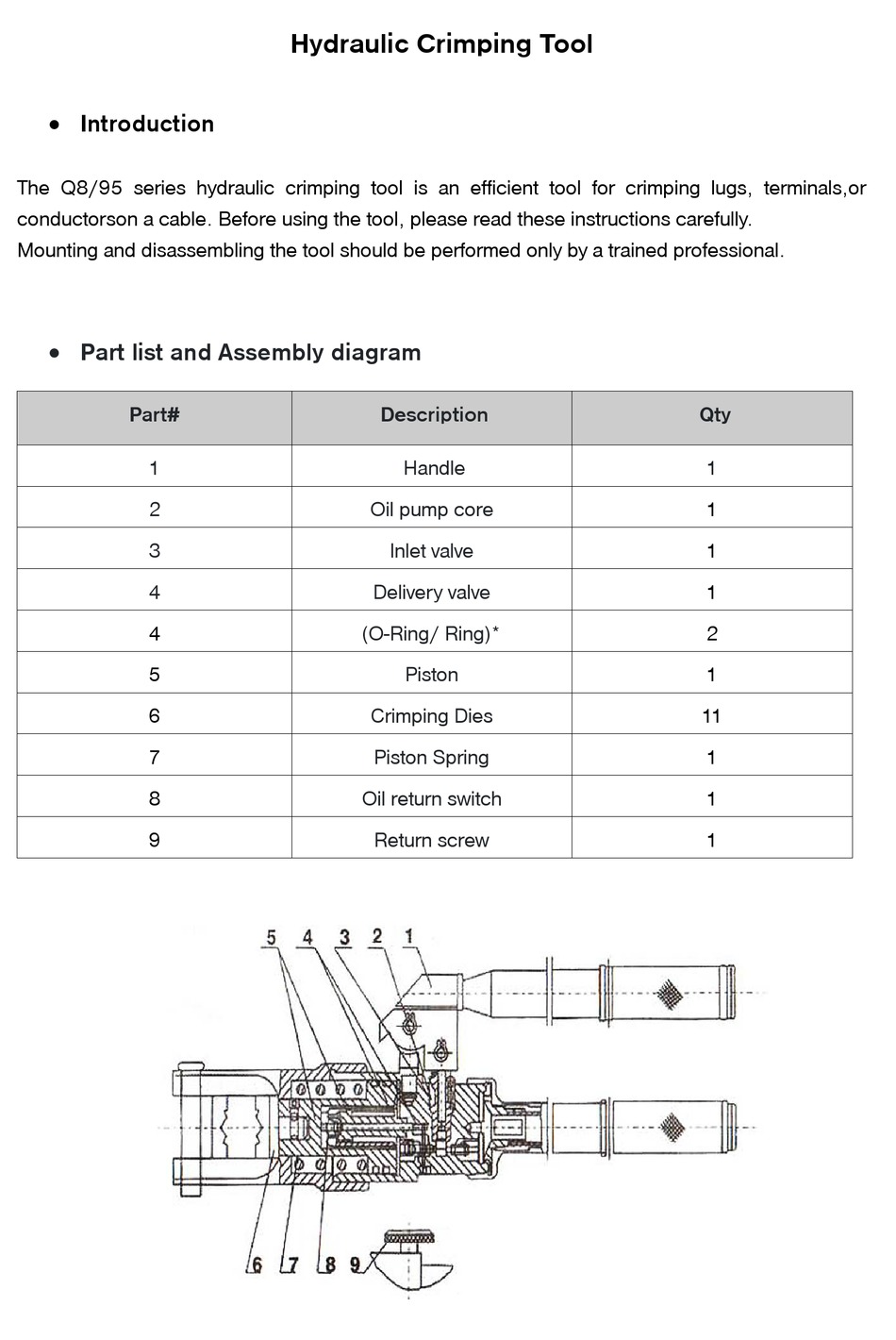

Page 1 Hydraulic Crimping Tool  Introduction The Q8/95 series hydraulic crimping tool is an efficient tool for crimping lugs, terminals,or conductorson a cable. Before using the tool, please read these instructions carefully. Mounting and disassembling the tool should be performed only by a trained professional.
Page 2  Description Movable handle Crimping Dies Fixed handle Oil return switch  Important safety information 1. Use this product only according to these instructions. Improper use can create hazards. 2. Wear ANSI-approved safety goggles and heavy duty work gloves during use. 3.
Page 3  Please read the following carefully The manufacturer and/or distributor has provided the parts list and assembly diagram in this document as a reference tool only. Neither the manufacturer nor distributor makes any representation or warranty of any kind to the buyer that he or she is qualified to make any repairs to the product, or that he or she is qualified to replace any parts of the product.
Page 4  Operation instruction Caution: Read the entire “Important safety information” including all text under subheadings therein before set up or use of this product. 1. Turn the Hydraulic Oil Return Valve (8) to its “OFF” position. 2. Eight dies are available in this set. Please take the chart for a reference to select a suitable die and insert them into the Pincer Head (6) of the tool.
