ST5/10-IP Quick Setup Guide

Requirements

To begin, make sure you have the following equipment:
▪ A compatible stepper motor.
▪ A small flat blade screwdriver for tightening the connectors (included).
▪ A personal computer running Microsoft Windows 98, NT, Me, 2000, XP, Vista, or 7, 8 or 10.
▪ ST Configurator™ software (available at www.applied-motion.com).
▪ A CAT5 network cable (not included).
▪ For more detailed information, please download and read the ST-QSiC Hard-
ware Manual, available at www.applied-motion.com/support/manuals.

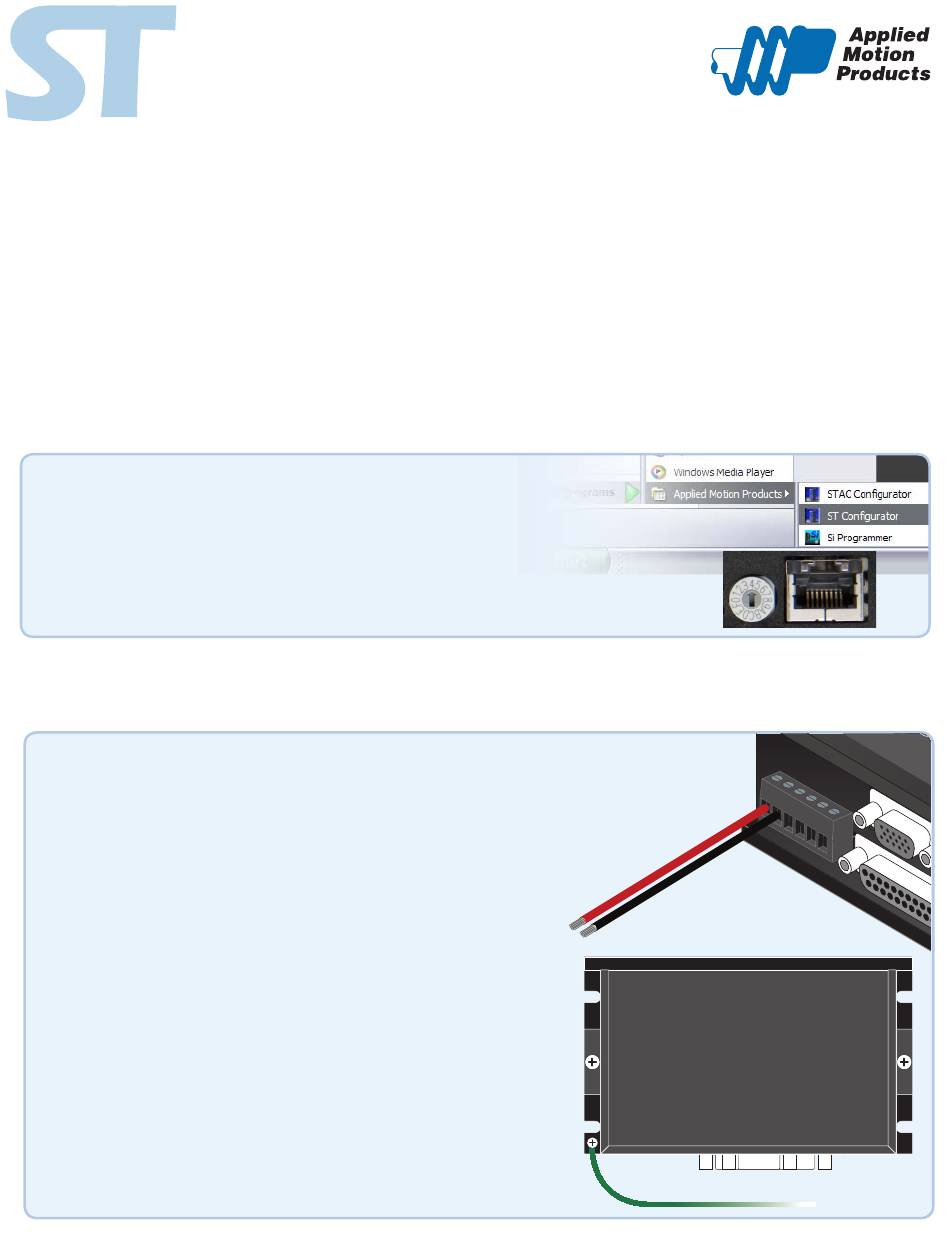

Step 1

a) Download and install the ST Configurator™ software.
b) Launch the software by clicking:
Start / Programs / Applied Motion Products / ST Configurator
c) Connect the drive to your PC using a standard CAT5 cable.
d) Select an appropriate IP address using the rotary switch. For more information about
network configurations and IP addressing, please consult the ST-QSiC Hardware
manual.

Step 2

a) Wire the drive to the DC power source.
(do not apply power until all connections to the drive have been made)
Note, the ST5-IP accepts DC voltages from 24-48V,
while the ST10-IP accepts DC voltages from 24-80V.
If using an external fuse, we recommend the following:
ST5-IP: Littelfuse 312007P 7A, 250V, Fast-Acting Fuse or equivalent
ST10-IP: Littelfuse 312007P 7A, 250V, Fast-Acting Fuse or equivalent
See the ST-QSiC Hardware Manual for more information about
power supply and fuse selection.
b) Ensure a proper earth ground connection by using the screw on the left
side of the chassis.
Connection Panel
920-0048D
