Applied Motion Products SV7-IP Quick Setup Manual

SV

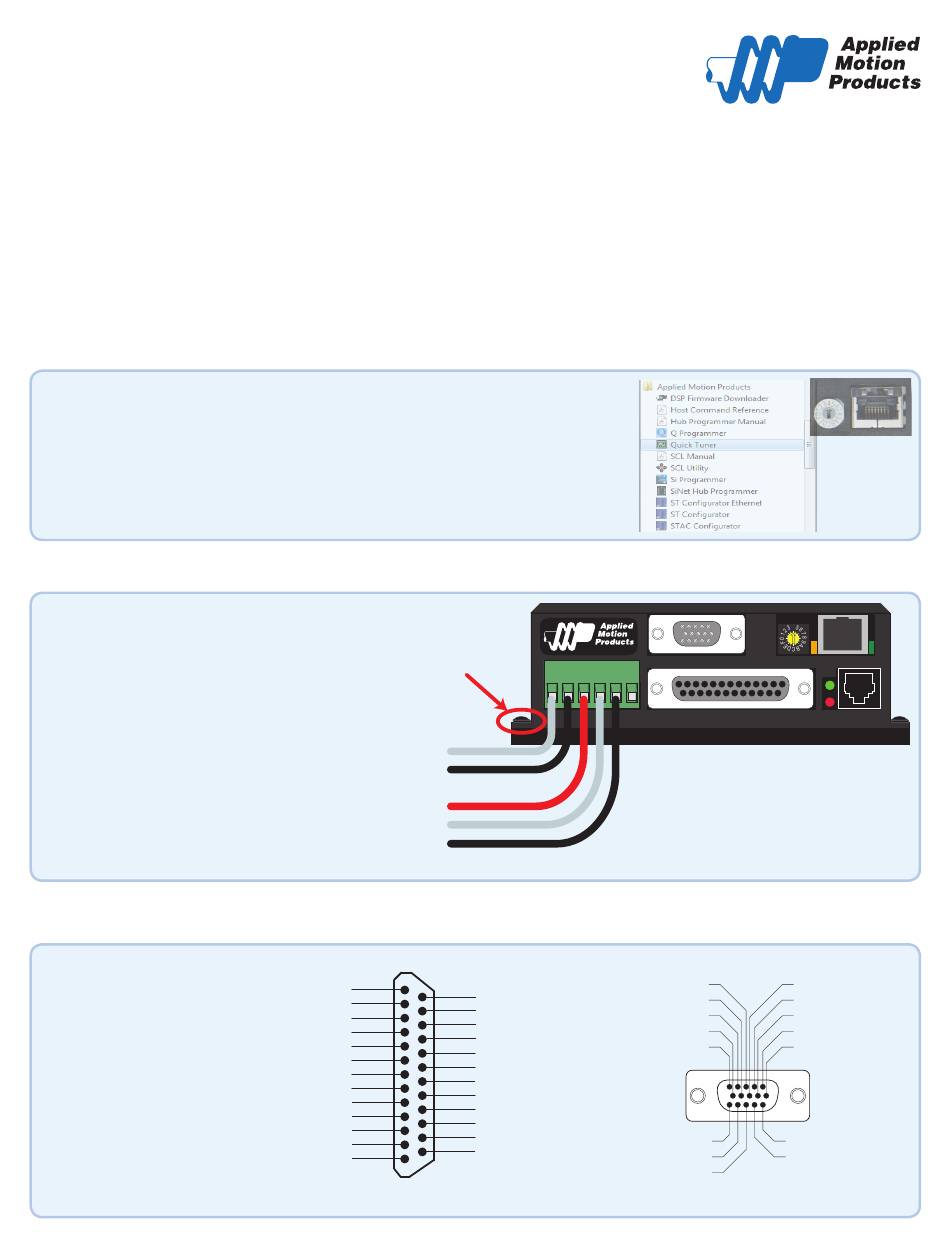

SV7-IP Quick Setup Guide

Requirements

To begin, make sure you have the following equipment:
▪ A compatible servo motor.
▪ A small flat blade screwdriver for tightening the connectors (included).
▪ A personal computer running Microsoft Windows 98, NT, Me, 2000, XP, Vista, or 7.
▪ Quick Tuner™ software (version 2.2.17 or later) available at www.applied-motion.com/products/software.
▪ A CAT5 network cable (not included).
▪ For more detailed information, please download and read the SV7 Hardware Manual, available at www.applied-motion.com/support/manuals.

Step 1

a) Download and install the QuickTuner™ software.
b) Launch the software by clicking:
Start / Programs / Applied Motion Products / Quick Tuner
c) Connect the drive to your network or PC using a standard CAT5 cable.
d) Select an appropriate IP address using the rotary switch on the SV7-IP. For more information
about network configurations and IP addressing, please consult the SV7 Hardware Manual.

Step 2

Wire the drive to the DC power source.
(Do not apply power until all connections to
the drive have been made)
Note, the SV7 drives accept DC power from
24-80 VDC.
For a non-Applied Motion Products motor, please
refer to your motor specs for wiring information.
Be sure to connect the motor case ground to the
grounding screw as indicated, leaving the last
pin on the motor/power connector unconnected.

Step 4

a) Connect the I/O
b) Connect the Encoder
▪ Applied Motion motor cables
are available with connectors
that mate directly to the
encoder connector on the drive.
Motor
Grounding
Screw
V+
V-
Motor A (or U) phase
Motor B (or V) phase
Motor C (or W) phase
IN/OUT
1
Analog IN1
2
Analog IN2
3
not used
4
X6 / CCWJOG
5
X5 / CWJOG
6
X4 / Alarm Reset
7
X3 / Enable
8
X COMMON
9
X2 / DIR-
1 0
X2 / DIR+
1 1
X1 / STEP -
1 2
X1 / STEP +
1 3
GND
Front View
1 4
Y1 / BRAKE
1 5
Y2 / MOTION
1 6
Y3 / FAULT
1 7
Y COMMON
1 8
+5V OUT
1 9
GND
2 0
Y4+
2 1
Y4-
2 2
X7/CWLIMIT+
2 3
X7/CWLIMIT-
2 4
X8/CCWLIMIT+
2 5
X8/CCWLIMIT-
4
ENCODER
encoder B+ (3) (8) GND
Hall 1+ (9) (2) encoder A-
encoder B- (4) (7) +5VDC 200mA
Hall 1-(10) (1) encoder A+
encoder Z+ (5) (6) encoder Z-
GND (15) (11) Hall 2+
Hall 3- (14) (12) Hall 2-
Hall 3+ (13)
Front View
920-0053 rev A
