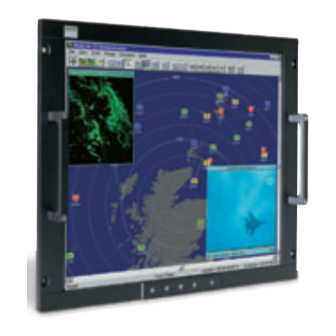

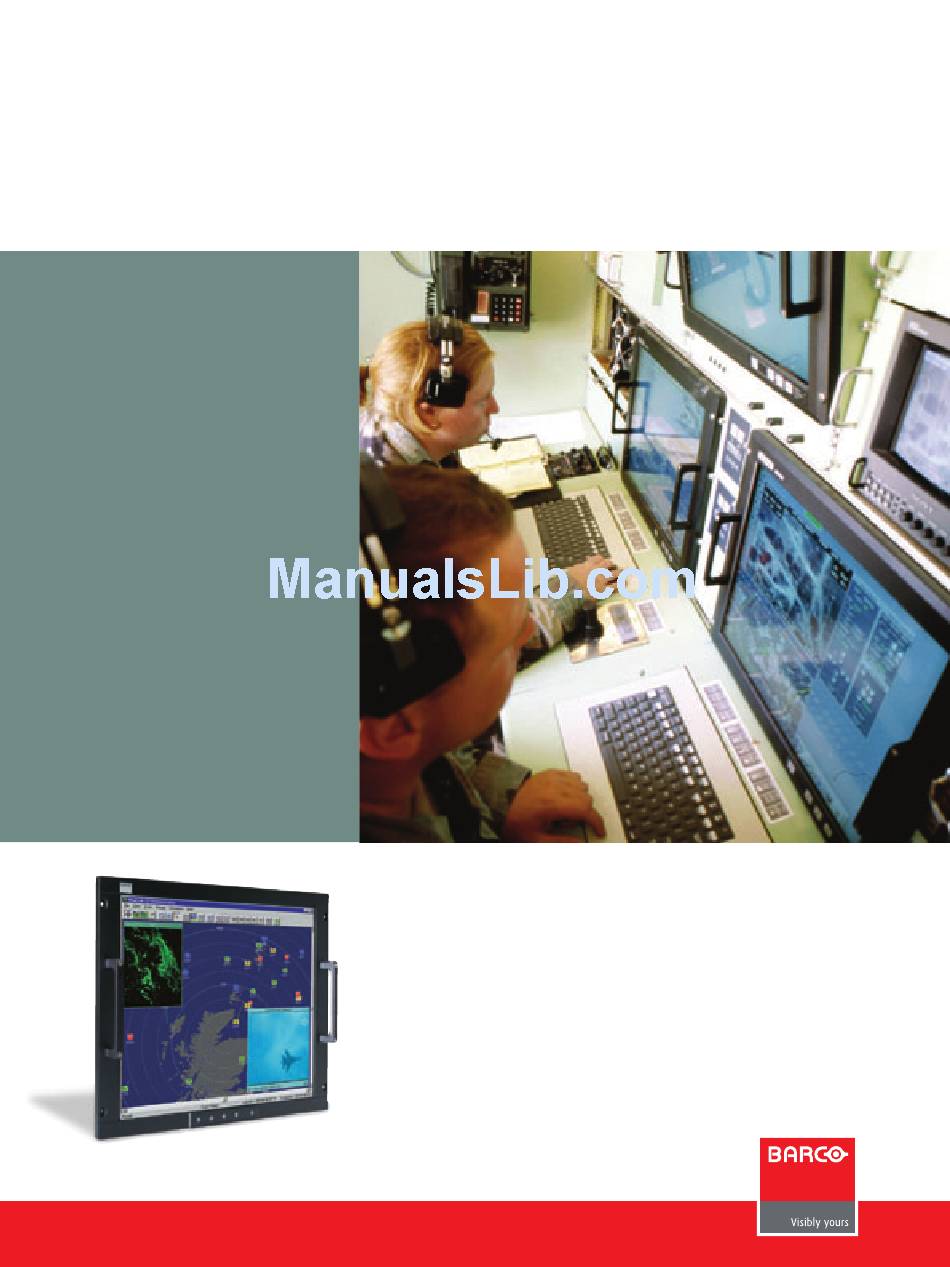

- Page 1 TL family A series of thin and lightweight displays www.barco.com...
- Page 2 A series of thin and lightweight displays Barco’s brand-new family of thin and lightweight displays offers significant benefits with respect to dimensions, ruggedization and intelligence. The TL display series com- bines unmatched thinness with exceptionally low weight to provide a unique, rugged display solution, especially for applications where space and weight are critical.
- Page 3 Versatile Barco’s TL series is truly the most ver- satile display solution around, in terms of size, ruggedness and mountability. Barco’s full family of thin and light- weight displays, available in 19”, 20”...
- Page 4 Height: 354 mm (8U) Width: 482 mm Depth: 62.5 mm Depth behind bezel: 47.5 mm Barco’s TL display series is also equipped with an integrated hardware image rotator allowing for optimum use in both portrait and landscape mode. This feature can be controlled via the user- friendly On-Screen Display menu.
- Page 5 Ruggedness in line with your specifications Barco’s TL displays have been designed and qualified for application in the most hostile environments. Next to the stan- dard ruggedization level, Barco offers its TL displays with two extra ruggedi- zation levels, which are suited for spe- cific naval combat, army and airborne applications.
- Page 6 For many products, Barco uses in-house manufactured circuitry to provide advanced dimming solutions. Optional LCD Flicker Compensation The TL displays can be equipped with Barco’s unique patented LCD Flicker Compensation (LFC) solution, which allows opera- tors to view acoustic sonar images or dense scrolling data Copyright U.S.
-
Page 7: Technical Specifications
TL-248/TL-351: Standard 12V & 28V DC, Optional: 115-220V AC as external module TL-361: 28V DC Guidelines MIL-STD-704E Power consumption TL-248: 65 W (DC) 80 W (AC), TL-351: 75 W (DC) 100 W (AC), TL-361: 120 W (DC) Safety IEC 950 General data Weight 6.5 kg (14.33 lbs) for TL-248 (smallest outline). - Page 8 Japan: +81 3 5762 8727 China: +86 400 88 22726 Barco is an ISO 9001 registered company. The information and data given are typical for the equipment described. However any individual Or mail to sales.defense@barco.com item is subject to change without any notice. The latest version of this product sheet can be found on www.barco.com...
