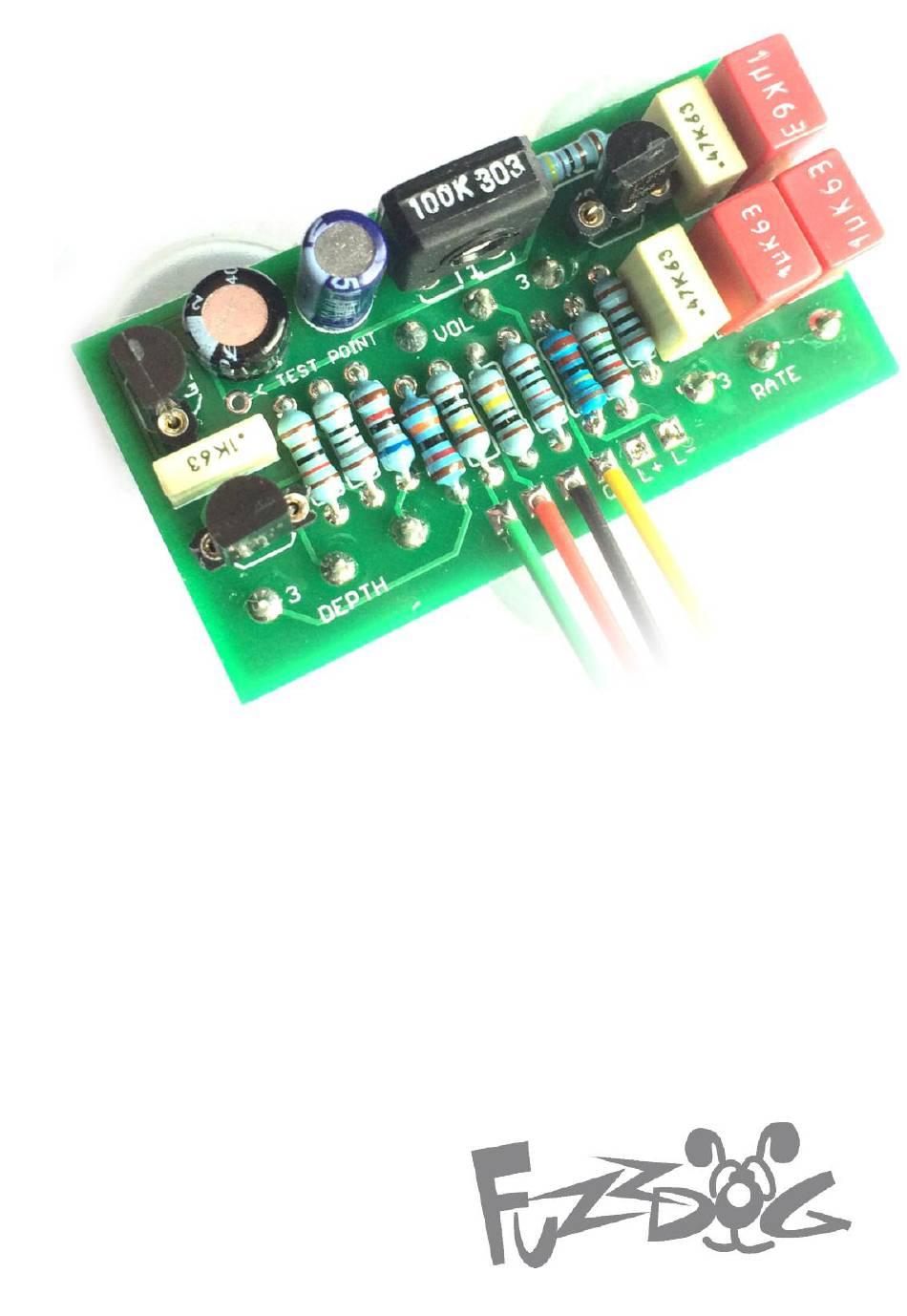

- Page 1 EA Tremolo Wobbling your tone in the nicest possible way Contents of this document are ©2015 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
- Page 2 Schematic *10K if using a flashing LED. 15K if not, and place a jumper across the LED+ and - pads 47u elec 180R 100n 470n 120K 22u elec 470n 10K/15K* 100K trim BS170 RATE 100KB J201 DEPTH 250KB 2N5088 100KA...
- Page 3 The power and signal pads on the PCB conform to the FuzzDog Direct Connection format, so can be paired with the appropriate daughterboard for quick and easy offboard wiring. However, you can’t use a daughterboard AND have a flashing LED.
- Page 4 Test the board! A A T our nic e, ne w cir cuit boa INCL UDING WIRED PO !!!! UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
- Page 5 Wire it up - Flashing LED (if using a daughterboard please refer to the relevant document) BOARD LED- BOARD BOARD BOARD INPUT BOARD BOARD LED+ BOARD BOARD BATTERY This circuit is standard, Negative GND. Your power supply should be Tip Negative / Sleeve Positive. That’s the same as your standard pedals (Boss etc), and you can safely daisy-chain your supply to this pedal.
- Page 6 Wire it up - with battery (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD LED+ BOARD BOARD BATTERY This circuit is standard, Negative GND. Your power supply should be Tip Negative / Sleeve Positive. That’s the same as your standard pedals (Boss etc), and you can safely daisy-chain your supply to this pedal.
- Page 7 Wire it up - DC only version (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD LED+ BOARD BOARD This circuit is standard, Negative GND. Your power supply should be Tip Negative / Sleeve Positive. That’s the same as your standard pedals (Boss etc), and you can safely daisy-chain your supply to this pedal.
- Page 8 Drilling template Recommended drill sizes: Pots Jacks 10mm Footswitch 12mm Hammond 1590B DC Socket 12mm Rotary Switch 60 x 111 x 31mm It’s a good idea to drill the holes for the pots 8mm to give yourself some wiggle room unless you’re a drill ninja 32mm This template is a rough guide only.
