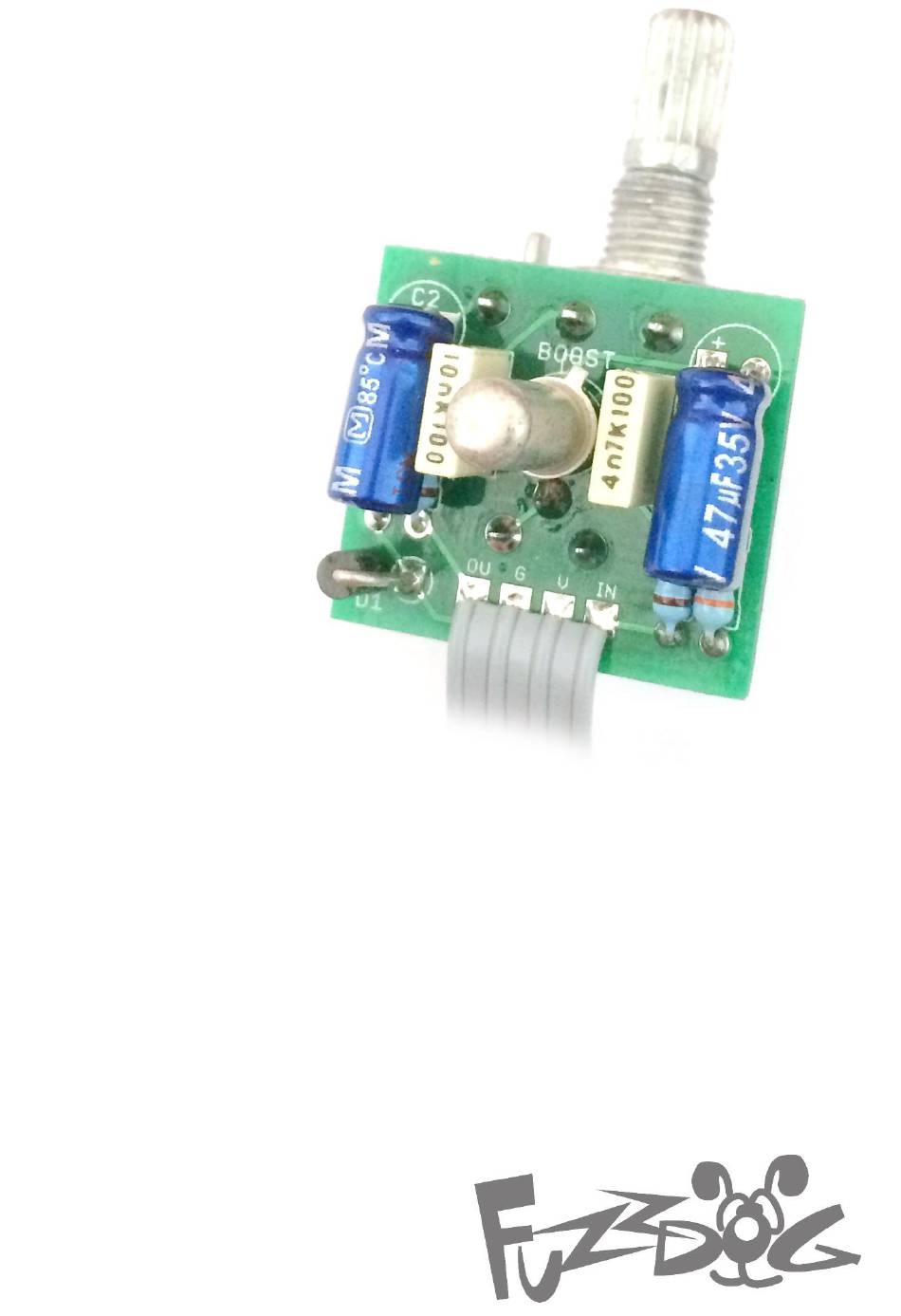

- Page 1 Range Master Dallas Rangemaster Germanium Treble Boost Contents of this document are ©2015 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
- Page 2 Schematic Schematic above is for NPN / negative ground version, based on the Range Blaster modifications at Fuzz Central. 470K The original used PNP / positive BIAS 100K preset ground supply. To convert for PNP, simply reverse the orientation of D1, C2, C3, and hook up the power in reverse as shown on the PNP wiring page further on.
- Page 3 The power and signal pads on the PCB conform to the FuzzDog Direct Connection format, so can be paired with the appropriate daughterboard for quick and easy offboard wiring. Be very careful when soldering the diode and transistor. They’re very sensitive to heat.
- Page 4 Test the BATTERY board! -9V GND Your nice, new circuit board INCLUDING WIRED POTS!!!! Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring. It’ll cut down troubleshooting time in the long run. If the circuit works at this stage, but it doesn’t once you wire up the switch - guess what? You’ve probably made a mistake with the switch.
- Page 5 PNP cans? Follow this. BOARD BOARD INPUT BOARD BOARD BOARD BOARD BATTERY BOARD PNP CANS? Ooh, many, but how about: AC128 2N404 The Board GND connections don’t all have to directly attach to the board. You can run a couple of wires from the DC connector, one to the board, another to the IN jack, then daisy chain that over to the OUT jack.
- Page 6 NPN cans? Follow this. BOARD BOARD INPUT BOARD BOARD BOARD BOARD BOARD NPN CANS? BOARD BATTERY Ooh, many, but how about: AC176 The Board GND connections don’t all have to directly attach to the board. You can run a couple of wires from the DC connector, one to the board, another to the IN jack, then daisy chain that over to the OUT jack.
