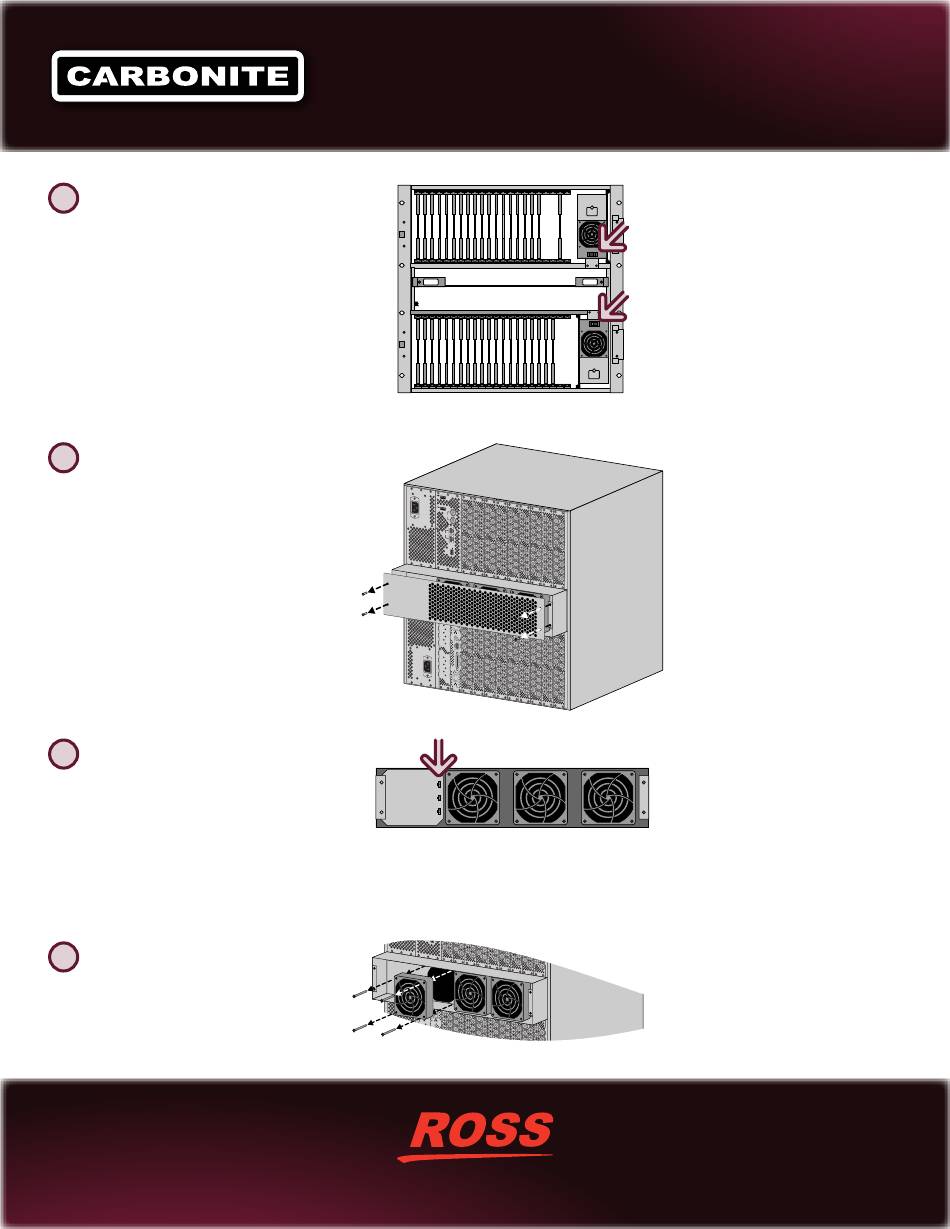

Ross Carbonite eXtreme Fan Replacement

1

Turn OFF frame power.

2
Remove the screws securing the
rear plate to the fan assembly
and remove the plate.
3
Unplug the fan cable for the fan
you are replacing.
You may have to cut the cable
ties to remove the fan.
4
Remove the screws securing the
fan to the fan assembly and
remove the fan.
© 2014 Ross Video Limited. Ross®, CrossOver®, MiniME™, and any related marks are trademarks or registered trademarks of Ross Video Limited. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights
reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying, recording or otherwise, without the prior written permission of Ross Video. While every precaution has been
taken in the preparation of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.
Fan Replacement
0
1
2
VID REF
T-BU S
ALAR M
1
2
Fan 1
Fan 2
Fan 3
Fan 1 Fan 2
1
2
VID REF
T-BU S
ALAR M
1
2
I
Fan 3
4803DR-300-02
