Kinova O110 User Manual

Dynamic arm support
Hide thumbs Also See for O110:
Table of Contents

Advertisement

Quick Links

User Guide
KINO VA
®
Dynamic
arm support O110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kinova O110

Summary of Contents for Kinova O110

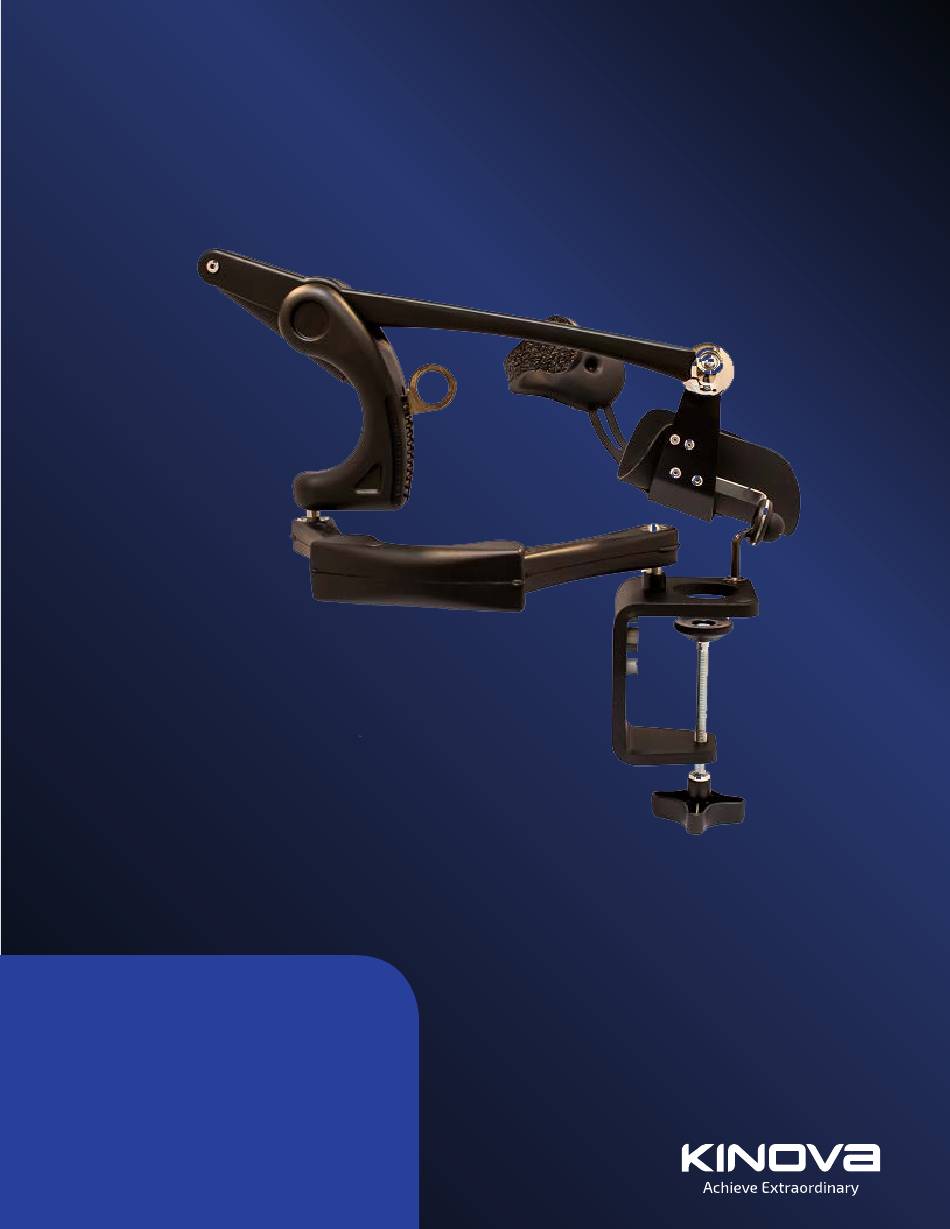

  • Page 1 User Guide KINO VA ® Dynamic arm support O110...

  • Page 2: Table Of Contents

    Contents Introduction................................3 What is an arm support?............................3 Use of arm support and normal use definition....................3 Symbols used in this guide........................... 3 Specifications................................4 Arm support safety and warnings........................4 Arm support warranty............................6 Assembly and installation............................. 7 Components................................7 Mounting and assembling the arm support....................

  • Page 3: Introduction

    KINOVA® Dynamic arm support O110 User Guide Introduction What is an arm support? A dynamic arm support is an assistive technology product that helps people with limited arm and shoulder function to move their arms and hands more easily. The device has a number of potential benefits.

  • Page 4: Symbols Used In This Guide

    KINOVA® Dynamic arm support O110 User Guide Symbols used in this guide Explanation of symbols used in the guide. The following symbols are used in this manual: Pinch point. Warning / Caution Specifications Basic specifications of the arm support. Table 1: Specifications Device with brace 1.80 kg...

  • Page 5: Arm Support Safety And Warnings

    KINOVA® Dynamic arm support O110 User Guide Arm support safety and warnings Important considerations for safe and effective use of the arm support. • The arm support works with a spring compensation mechanism, which provides the force for compensation. When the upper arm of the arm support is lowered, the tension in the spring can cause the arm support to return to its upwards position if unloaded.

  • Page 6: Arm Support Warranty

    KINOVA® Dynamic arm support O110 User Guide • Do not immerse the arm support in water. When cleaning the outside of the arm support, a moistened towel shall be used. • Be aware of finger pinching. There are potential pinch points on the arm support. There is one major pinch point, where the upper arm and the enclosure for the spring on the base come together.

  • Page 7: Assembly And Installation

    KINOVA® Dynamic arm support O110 User Guide Assembly and installation Components The arm support comes in a box with four main components. Some assembly is required to install the device. The arm support consists of the following main components: •...

  • Page 8: Mounting And Assembling The Arm Support

    KINOVA® Dynamic arm support O110 User Guide Note: After unboxing and setting up the arm support, make sure to save the packaging. This will be useful for transport of the arm support, whether for your own use or if needed for servicing.
  • Page 9 KINOVA® Dynamic arm support O110 User Guide 2. Place the links on top of the pin of the table clamp. You do this by sliding the bearings on one end of the links over the pin of the table clamp.

  • Page 10: Attaching The Brace

    KINOVA® Dynamic arm support O110 User Guide Note: There is no distinct upper or lower side for the links, nor is there any distinct front or back side. The links bearings can be engaged in either of two ways for each arm side configuration.
  • Page 11 KINOVA® Dynamic arm support O110 User Guide 2. Pull the clip on the brace inwards. While holding the clip, slide the slot of the hook on the brace so that it goes between the two washers on the end of the upper arm.

  • Page 12: Placing The Arm In The Brace

    KINOVA® Dynamic arm support O110 User Guide 3. Release the clip, and make sure that the hole on the clip locks over the head of the bolt on the end of the upper arm. The head of the bolt should be visible through the clip.
  • Page 13 KINOVA® Dynamic arm support O110 User Guide If the brace type being used includes an arm strap, wrap the strap and pad over the user's forearm and secure the end of the strap on the velcro patch under the brace. This way the forearm is secured and can't fall out of the brace.

  • Page 14: Adjustment And Configuration

    KINOVA® Dynamic arm support O110 User Guide Adjustment and configuration Adjusting the arm support weight compensation The weight compensation of the device can be adjusted in steps to adjust to the user's needs and preferences. About this task The arm support can be adjusted mechanically to customize the amount of compensation to the weight of the user's arm and the user's preferences.

  • Page 15: Adjusting The Arm Support Positioning

    The brace can easily be replaced with another Kinova brace of the same arm side. About this task Any of the available Kinova arm brace models can be used with the arm support. It is relatively straightforward to switch in a different model of brace.
  • Page 16 The brace is the part where the arm lies. It is the connection between the arm support and the user. Kinova offers different types of braces and every type is available in different sizes. The braces are exchangeable ®...

  • Page 17: Changing The Arm Support Laterality

    KINOVA® Dynamic arm support O110 User Guide Changing the arm support laterality The laterality of the arm support (left-handed vs right-handed) can be changed. Some configuration is required. The braces come in left- and right-handed models, and the arm support is set up and configured specifically for either left or right arm use based on the user's dominant hand.

  • Page 18: Maintenance, Support, And Servicing

    The product can be returned temporarily to Kinova for servicing. Note: The product should be returned in its original packaging. Kinova will inspect the device and can replace / repair any components that may have worn out. For more details, contact Kinova using the website support page:...
  • Page 19 There is no need too small. No task too great. kinovarobotics.com Kinova inc. (Headquarters) 4333, Boulevard de la Grande-Allée Boisbriand (QC) J7H 1M7 Canada +1 (514) 277-3777 Kinova Europe GmbH Großkitzighofer Straße 7 a 86853 Langerringen +49 8248 8887-928...
