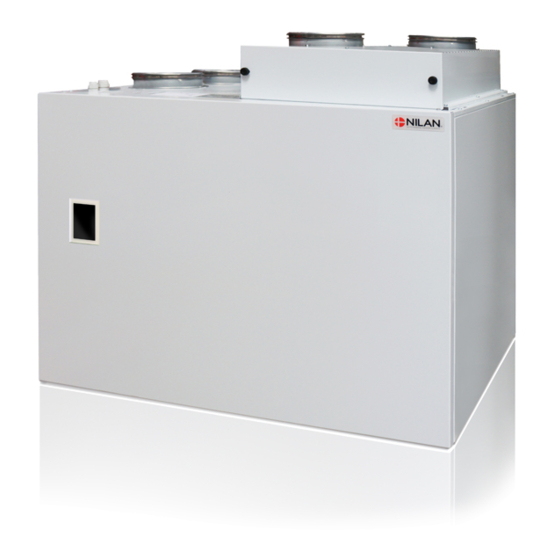

nilan Combi 302 Polar Top User Manual
Hide thumbs
Also See for Combi 302 Polar Top:
- Installation instruction (24 pages) ,
- User manual (28 pages)
Related Manuals for nilan Combi 302 Polar Top
Summary of Contents for nilan Combi 302 Polar Top
- Page 1 USER MANUAL CTS602 BY NILAN Combi 302 Polar Top (English) Version 2.21 - 30.05.2018...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Power supply ....................................................Disposal ..........................................................Ventilation system .................................................. Heatpump ......................................................Quick guide Control panel ....................................................... Functions ......................................................Operating mode ................................................... Menu list ....................................................... Main menu ......................................................View alarms ..................................................... Alarm list ......................................................Show data ....................................................... User select ...................................................... -
Page 3: Power Supply
Disposal Ventilation system Nilan units mainly consist of recyclable materials. They should therefore not be disposed of with household refuse. Take them to your local recycling centre. Heatpump Concerning disposal of units with heat pumps, it is important to contact the local authorities for information about correct handling of these. -
Page 4: Quick Guide Control Panel
Quick guide Control panel Functions The CTS602 control panel offers the following functions: 1. Light diode Constant yellow light: Compressor operation Flashing yellow light: The unit is in alarm mode 2. Text field Text is shown on 2 lines, each of 8 characters. The upper line shows a help text. -
Page 5: Operating Mode
Combi 302 Polar Top (English) BY NILAN Operating mode AUTO */1/L >2< 19°C The display on the control panel provides information about unit operation: 1. Shows the operating mode: Auto / Heating / Cooling 2. Shows: * = User option active... -
Page 6: Menu List
Menu list SHOW Displaying and resetting alarms. Alarm log with the latest 16 alarms. ALARMS Operating mode (heating, auto, cooling), temperatures, fan speed and software SHOW version. DATA AUTO W/ 1 Main menu: Shows operating status. Press ESC to return to the main menu. >2<... -
Page 7: Main Menu
Combi 302 Polar Top (English) BY NILAN Main menu ENTER ENTER ENTER AUTO AUTO ”AUTO” AUTO >2<19°C >2<”19°C” >2< 19°C ”>2<” 19°C AUTO ”COOL” AUTO >2<”19°C” >2< 19°C ”>3<” 19°C ”HEAT” >2< 19°C The unit automatically selects cooling or heating mode in relation to the 1. -
Page 8: View Alarms
View alarms ENTER ENTER ENTER AUTO SHOW ALARM 71 16-05-06 00-00-00 >2<19°C ALARMS DEFROST FR 11:32 FR 00:00 ALARM 19 FILTER ALARM 7 FROST ENTER ENTER ALARMLOG AL 1: 16-05-06 DEFROST FR 11:32 AL 2: STATUS FILTER ALARM AL 3: 20°C FROST 20°C... -
Page 9: Alarm List
Combi 302 Polar Top (English) BY NILAN Alarm list Alarm codes are given as a result of a fault or when important information should be provided to the user. Alarms fall into the following categories: C Critical: Running or partially stopped as long as the alarm is active. - Page 10 Alarm code Category Display text Description / cause Fault correction SOFTWARE Fault in control system program Contakt service WATCHDOG Fault in control system program Contakt service Reset alarm. Program week program as Part of the program setup lost. required. Can be due to long-term power Contact service if the unit is outage or lightning strike.
-
Page 11: Show Data
Combi 302 Polar Top (English) BY NILAN Show data ENTER SHOW DATA STAUS HEATING BYPASS OPEN PANEL 20°C EXSTERNAL 21°C HUMIDITY EVAP 100% 26°C INLET 566ppm FLOW INLET EXHAUST 21°C FLOW FRESHAIR SOFTWARE 9°C 2.34 OUTL SOFTWARE 5°C 1.04 COND TYPE 40°C... -
Page 12: User Select
User select ENTER SELECT ”VENTILAT” ENTER SELECT ”EXT OFFS” ENTER ENTER ENTER USER SELECT SELECT SELECT EXTEND ”EXHAUST” ENTER ENTER TIME TIME SELECT 00:00 ”00:00” ”INLET” ENTER FLOW FLOW SELECT >4< ”>4<” ”EXTEND” ENTER ENTER TEMP TEMP SELECT 23°C ”23°C” ”OFF”... -
Page 13: User Select 2
Combi 302 Polar Top (English) BY NILAN User select 2 ENTER SELECT ”C HOOD” ENTER SELECT ”VENTILAT” ENTER SELECT ”EXT OFFS” ENTER ENTER ENTER USER SELECT SELECT SELECT 2 EXTEND ”EXHAUST” ENTER ENTER TIME TIME SELECT 00:00 ”00:00” ”INLET” ENTER... -
Page 14: Setting Clock
Setting clock ENTER ENTER ENTER 16-05-06 YEAR YEAR 12.10 ”16” ENTER ENTER MONTH MONTH ”05” ENTER ENTER ”07” WEEK ENTER ENTER HOUR HOUR ”12” ENTER ENTER MINUTE MINUTE ”10” 1. WEEK DAY 2 Shown first time only after setting up timer function, Monday = 1. 2. -
Page 15: Weekly Programme
Combi 302 Polar Top (English) BY NILAN Weekly programme 1 08.00 >1< 17°C 1. Mo Day of week. 2. 1 Function step. There are 6 function steps for each day. 3. 08.00 Time for activation of function step. 4. >1<... -
Page 16: Week Program
Week program ENTER SELECT ”CLEAR” ENTER SELECT ”PROG3” ENTER SELECT ”PROG2” ENTER SELECT SELECT ”PROG1” PROG1 ENTER ENTER ENTER WEEK SELECT SELECT PROGRAM ”OFF” ENTER 1 06.00 >3 < 21°C ENTER 2 08.00 >1 <17°C >1 <17°C ENTER ENTER ENTER MO ------>... -
Page 17: Heating Surface
Combi 302 Polar Top (English) BY NILAN Heating surface ENTER ENTER ENTER INLET MODE MODE HEATING DEMAND ”HEATING” ENTER INLET MODE 20°C ”OFF” INLET 40°C CURVE OFFSET 0°C OFFSET 0°C DELAY 10 MIN 1. MODE "DEMAND" Select central heating mode "HEATING", "OFF" og "DEMAND"... - Page 18 It is possible to retrofit an electrical comfort heater. The heater must be activated in the CTS 602 control menu to work with the unit. After customized with a heating element is T7 supply sensor. Weather compensation curve Outdoor temperature°C The desired heating temperature is set to an outdoor temperature of -20°C, and +20°C.
-
Page 19: Bypass Operation
Combi 302 Polar Top (English) BY NILAN Bypass operation ENTER ENTER ENTER AUTO COOLING VENTILAT VENTILAT >2<19°C HIGH HIGH ”2” 1. VENTILAT HIGH "2" Select between levels 2, 3, 4 and OFF. The COOLING menu allows selection of the unit automatically running at a higher/highest ventilation level for low bypass mode. -
Page 20: Humidity
Humidity ENTER ENTER ENTER HUMIDITY HUMIDITY HUMIDITY >1< >”1”< ENTER ENTER ”30%” ENTER ENTER HUMIDITY HUMIDITY HIGH >4< HIGH >”4”< ENTER ENTER TIME TIME 60 MIN ”60” MIN 1. HUMIDITY LOW "1" Option for selecting lower fan speed in case of low air humidity. The value can be set to: OFF and 1, 2, 3. - Page 21 Combi 302 Polar Top (English) BY NILAN ENTER ENTER ENTER FLOW FLOW HIGH HIGH ”3” ENTER ENTER HIGH HIGH 800ppm ”800”ppm ENTER ENTER NORMAL NORMAL 600ppm ”600”ppm 1. FLOW HIGH "3" Option for selecting high fan speed in case of high CO concentration.
-
Page 22: Air Exchange
Air exchange ENTER ENTER ENTER COMP COMP EXCHANGE °C ”OFF” °C ENTER ENTER WINTER WINTER ”3” ENTER ENTER WINTER WINTER <0°C <”0”°C The compressor starts in heating mode at low outdoor temperature. The 1. COMP MIN "OFF" °C value can be set to OFF or from + 15°C til -15°C. 1. -
Page 23: Air Filter
Combi 302 Polar Top (English) BY NILAN Air filter ENTER ALARM ”GUAR + 70D” ENTER ALARM ”360 DAYS” ENTER ALARM ”180 DAYS” ENTER ENTER ENTER ALARM ALARM FILTER 90 DAYS ”90 DAYS” ENTER ALARM ”30 DAYS” ENTER ALARM ”GUARD” 1. ALARM "GUARD"... -
Page 24: Temp. Control
Temp. control ENTER ENTER TEMP. SUMMER CONTROL MIN ”14°C” ENTER WINTER MIN ”16°C” ENTER SUMMER MAX ”22°C” ENTER WINTER MAX ”24°C” ENTER SUMMER >”12°C” 1. SUMMER MIN "14°C" Lowest intake temperature in the summer. If the outdoor temperature is lower that stated, the bypass damper will close. 2. -
Page 25: Setting Language
Combi 302 Polar Top (English) BY NILAN Setting language ENTER LANGUE ”POLISH” ENTER LANGUE ”CZECH” ENTER LANGUE ”SUOMI” ENTER LANGUE ”NORWEG.” ENTER ENTER LANGUE LANGUE ”DANISH” DANISH ENTER LANGUE ”SWEDISH” ENTER LANGUE ”FRENCH” ENTER LANGUE ”GERMAN” ENTER LANGUE ”ENGLISH” The LANGUAGE menu allows selection of language for the control panel. -
Page 26: General Details Unit Type
Combi 302 Polar Top is supplied as standard with a filter sheet in the outdoor air and extract air ducts. If it is wished to filter the outdoor air for pollen, an pollen filter can be purchased as an accessory and mounted subsequent. -
Page 27: Overview Of Temperature Sensors
Combi 302 Polar Top (English) BY NILAN Overview of temperature sensors Temperature sensors in the unit Temperature sensors outside the unit T1: Outdoor air T7: Supply air after heating element (accessory) T2: Supply air (inlet) T9: På On heating element (accessory) -
Page 28: Service And Maintenance
Service and maintenance Bypass function When the current room temperature is above the desired temperature, there is no further need for heat recovery. In this situation, the bypass opens and diverts the outdoor air round the heat exchanger, preventing the latter from being heated by the indoor air. This results in lower internal pressure in the unit, thereby saving energy on fan operation. -
Page 29: Regular Maintenance
BY NILAN Regular maintenance Your Nilan ventilation unit will last for many years if it is correctly maintained. Correct maintenance will also ensure that the unit runs optimally at all times with low energy consumption. In the following we point out the regular maintenance which you can perform yourself and the annual service which should be carried out by a professional. -
Page 30: Illustration Of Filter Change
Illustration of filter change 1. Switch off the unit on the control panel before opening 2. Slacken the finger screws and lift off the door the door 3. Remove the 2 filters from the unit 4. We recommend vacuuming the filter chambers to remove any dirt 6. -
Page 31: Heat Exchanger
Combi 302 Polar Top (English) BY NILAN Heat exchanger The heat exchanger should be serviced every two years or so to remove dirt and dust, thereby ensuring unimpeded air flow. A blocked heat exchanger will cause the power consumption to go up. -
Page 32: Service
Service Annual service It is important to perform an annual service on the unit to ensure it will continue to perform optimally with low energy consumption and long service life. You are recommended to take out a service agreement with the installer, as certain elements of the service require an authorised technician. -
Page 33: Product Data
Combi 302 Polar Top (English) BY NILAN Product data Declaration of compliance... - Page 35 Combi 302 Polar Top (English) BY NILAN...
- Page 36 United Kingdom: S L Services 25 St Leonards Road, Horsham RH13 6EH West Sussex Tlf. +44 (0) 7919 444452 stuart315@aol.com www.nilanuk.com Ireland: Nilan Ireland Ballylahive, Abbeydorney Tlf. +353 (0) 87 9798361 maurice@nilan.ie www.nilanireland.ie Nilan A/S Nilanvej 2 DK-8722 Hedensted Tlf.
