Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (20) 1/4" x 19mm Flat Washers
B (20) 1/4" Spring Washers
C (4) 1/4" x 1-3/4" Bolts
D (1) 1/4" Allen Wrench
E (4) 1/4" x 1" Bolts
F (4) 1/4" x 15mm Bolts
G (2) Metal Brackets
H (4) #8 x 1-1/2" Screws
I (12) 1/4" x 1-1/2" Bolts
J (1) 1/4" x 4" Straight Allen Wrench

PARTS LIST

K (1) Seat Frame
L (1) Seat Cushion
M (1) Chair Back
N (1) Top Round Stretcher
O (1) Bottom Round Stretcher
P (4) Legs
F F
M
G G
F F
FIGURE 1
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.

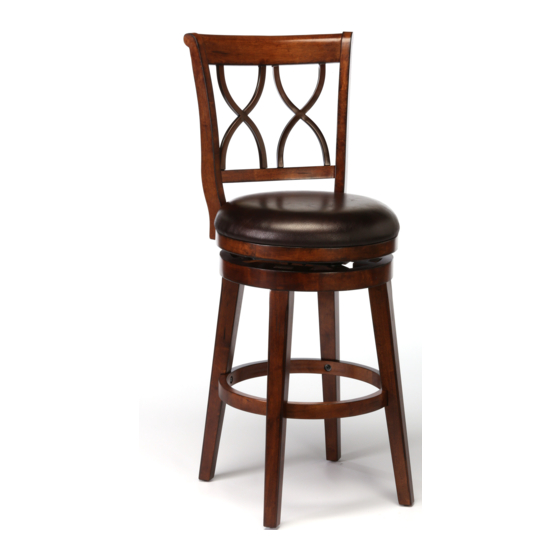

Model #4724-831S Barstool - Metal Double X - Dark Finish
Model #4724-827S Counter Stool - Metal Double X - Dark Finish
Model #4724-830S Barstool - Metal Double X - Light Finish
PART
A
C
E
G
I
M
K

STEP 2

Next secure in each rear corner of the Seat Frame (K) and Chair Back (M)
with 2 Metal Brackets (G), and 2 Allen Bolts (F) per side. See Figure 1.
REYDON STOOL
QTY HARDWARE
20
4
4
2
12

STEP 1

Begin assembly by attaching the Seat Frame (K) to the
Chair Back (M) by setting in place and aligning holes and
securing from left and right inside back panel with 4 Allen
Bolts (C), 4 Spring Washers (B) and 4 Flat Washers (A).
Do not fully tighten bolts.
PART QTY
B 20
D 1
F 4
H 4
J 1
K
Date: 05-08-2013
Page 1 of 1
HARDWARE
C C
B B
A A
