Smartek NUBI 4.0 Manual

NUBI 4.0 – PLUG & PLAY

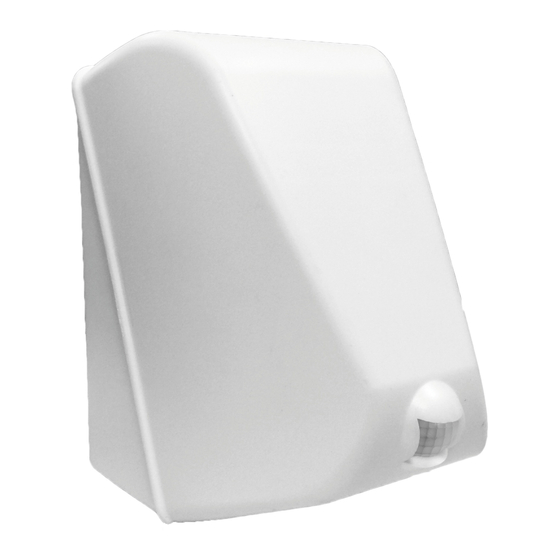

Thank you for purchasing NUBI 4.0, the wireless,
intelligent and Plug & Play security smoke screen device. It
can be used with any anti-theft system, coupling the device
to an internal siren.
WE RECOMMEND THAT YOU READ THE
ENTIRE MANUAL BEFORE PROCEEDING TO
PRODUCT INSTALLATION.
1. OVERVIEW
The device is self-powered with a 3.6 V AA size lithium
battery supplied with the product; in a not excessively
noisy environment it lasts up to 10 years. When the
battery is running low, the device will beep every 8 hours.
NUBI 4.0 drives a XAFER S25 smoke canister, which
effectively protects volumes up to 100 m
generated is suitable for indoor use, it is based on incense
and does not produce a toxic atmosphere as tested
according to the directive TLV-STEL EU 2017/164 and
ACGIH. After use, the room must be adequately
ventilated before staying there.
NUBI 4.0 Plug&Play works completely wireless, does not
need any connections with the existing anti-theft system
but it is alert when it hears the sound of the internal siren
of the system.
The coupling operation with the siren, to be performed
during installation, learns the sound in digital form.
Sounds different from that of the specific coupled siren will
not produce any effect, even the sound of the siren itself,
but installed in a position other than the coupling one, will
not activate NUBI 4.0.
NUBI 4.0 is normally in "sleep mode" with the smoke
supply inhibited. When NUBI 4.0 decodes a sound
corresponding to that of the coupled siren, it switches to
"active state" and as soon as it detects movement with its
infrared sensor, it triggers the emission of smoke. It is
possible to extend for 5 or 10 minutes the duration of the
"active state" of NUBI 4.0 even after the siren has stopped
sounding (see chapter 5. CONFIGURATION).
For the first 20 minutes after the siren coupling
operation, or after inserting the power supply battery,
smoke emission is inhibited to allow functional control of
the device.
The smoke canister is disposable, the smoke emission,
when activated, can no longer be interrupted.
NUBI 4.0 is a family of products, in addition to the
Plug&Play version, other models are available to be
connected to the alarm control unit via inputs and outputs.
They are available with 12V or battery power supply, with
or without built-in infrared sensor. For more information,
visit the website www.smarteksrl.it.
2. POSITIONING
3 . The smoke
Do not insert any obstacle at a distance of less than 1.5
meters from the smoke outlet hole.
The best performance is achieved when the jet of smoke
coming out from NUBI 4.0 directly hits the floor, in this
way the smoke will cool and spread better.
NUBI 4.0 Plug & Play must be installed in the same room
where an internal siren of the alarm system is located. Do
not pair NUBI 4.0 with sirens located in other rooms that
are separated with doors that can sometimes be open and
sometimes closed.
Do not place NUBI 4.0 in particularly noisy places, as well
as near strong sound sources, such as television or
speakers. Strong and continuous sound sources will
reduce battery life.
NUBI 4.0 works when it is reached by a siren sound level
ranging from 85 to 103 DB. Indicatively, the distance
between NUBI 4.0 and the siren should be between 0.5
and 3m, but this parameter strongly depends on each
siren. Being able to choose, it is always preferable to keep
the siren as close as possible to NUBI 4.0.
To obtain maximum immunity to anomalies due to ambient
sound reflections, it is recommended to install the siren
and NUBI 4.0 at a height greater than 2 meters.
Before drilling the wall to permanently fix NUBI 4.0, we
recommend carrying out the sound test described in the
chapter 14. SOUND CHECK.
3. CONTENT
The package contains
N. 1 NUBI 4.0 Plug & Play device in plastic container
resistant to high temperatures, complete with
electronic board and infrared sensor.
N. 1 3.6V lithium battery in stylus format
N. 1 permanent magnet for programming.
The smoke canister XAFER S25 is not included, but must
be purchased separately.
NB40PP2UX
REV 01 – March 2020 - ENGLISH
NUBI 4.0 can be easily
installed on the wall or
even in a corner at a
height between 150 and
250 cm.
WARNING
