Smartek NB40PP Quick Start Manual

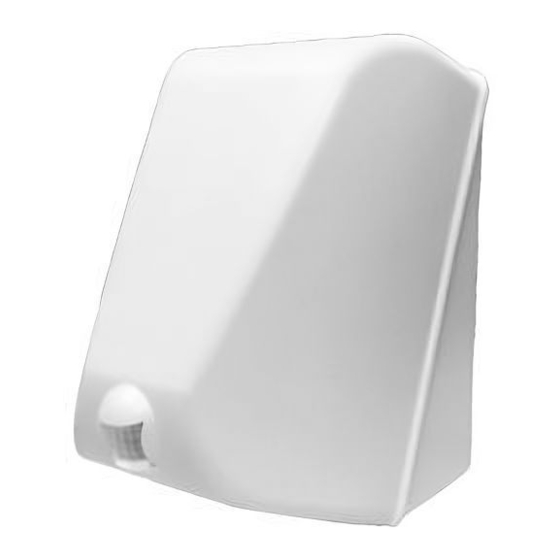

NUBI 4.0 – PLUG & PLAY
Model: NB40PP
Power supply: Lithium battery 3,6V
PIR: Yes
Thank you for purchasing NUBI 4.0, the wireless,
intelligent, Plug & Play smoke screen security device. It
can be used with any burglar system, pairing the device
with one internal siren.
OVERVIEW
The device is powered by a 3.6V AA size lithium battery
supplied with the product, such as SAFT LS14500. This
battery provides the necessary energy to the device for a
period of 10 years. When the battery is about to run out,
the device will beep once every 4 minutes.
NUBI 4.0 efficiently protects volumes up to 100 m
smoke generated by NUBI 4.0 is based on incense and
does not produce toxic atmosphere as tested according to
the TLV-STEL directive EU 2017/164 and ACGIH. After use
the room must be ventilated before staying there.
The device is completely wireless, it is installed only with
two dowels. In the same room where NUBI 4.0 is installed,
an internal burglar
programming operations are required on the burglar alarm
control unit. The siren sound will be digitized during the
pairing operation at the installation phase. After pairing,
when the siren sounds and the NUBI 4.0 built-in PIR
detects the movement, the smoke delivery will start.
Thanks to digital learning, sounds other than the specific
paired siren will not produce any effect, even the sound of
the same siren model, but installed in a different room, will
not activate NUBI 4.0.
During the entire duration of the siren sound, NUBI 4.0 is
active waiting for its PIR to detect any movement to
activate the smoke emission, so it is possible to select two
different operating modes to decide when NUBI 4.0 returns
inactive after the siren ends to sound (see select operating
mode).
For the first 20 minutes after performing the siren pairing
operation, it is possible to carry out the device functional
check without causing smoke emission.
The smoke cartridge works only once, the smoke
emission, when triggered, can no longer be interrupted.
The replacement of the smoke cartridge is very simple, the
conductors of each cartridge end with the activation card
which will be easily plugged into the appropriate connector
on the motherboard.
NUBI 4.0 is a family of products, in addition to the Plug &
Play version, other models are available to be connected
to the alarm control panel through the inputs and outputs.
They are available with 12V power supply or battery, with
or without built-in infrared sensor. For more information,
visit www.smarteksrl.it.
alarm siren is required.
POSITIONING & SOUND CHECK
3 . The
No
Do not insert any obstacle at a distance of less
than 1.5 meters from the smoke outlet hole.
The best performance is achieved when the jet of smoke
coming out from NUBI 4.0 directly hits the floor, in this way
the smoke will cool and spread better.
NUBI 4.0 Plug & Play must be installed in the same room
where an internal siren is placed. In case you have not an
internal siren in that room, you can easily add it to your
burglar system.
Usually the sound level of an internal siren in the same
room is enough to activate NUBI 4.0. Do not place NUBI
4.0 in particularly noisy places and keep away from strong
sound sources, such as television or speakers. Continuous
stress on strong sound sources will reduce battery life.
NUBI 4.0 remains in "sleep mode", therefore with very low
battery consumption, as long as the device receive a
sound level below 90dB. It is possible to check the sound
level of the threshold before definitively fixing the device to
the wall, in the desired position.
To perform the sound check: open the device, insert the
battery on the motherboard without connecting the smoke
cartridge, then close the device.
REV 01 – September 2019 - ENGLISH
NUBI 4.0 can be easily installed on the
wall or even in a corner at a height
between 150 and 250 cm.
WARNING
NB40PP
