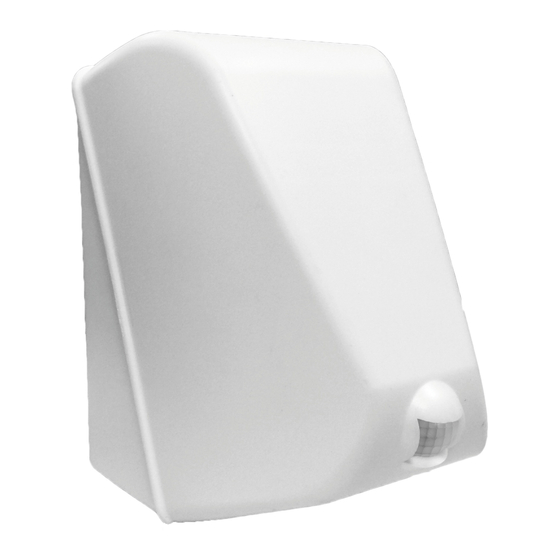

Smartek NUBI 4.0 Manual

Model: NB40S1
Power supply: 12VDC
PIR: NO
Thank you for purchasing NUBI 4.0, the intelligent smoke
screen security device able to be connected to any burglar
alarm system in new or existing systems.
OPERATIONAL OVERVIEW
The device is powered from 10VDC to 15VDC, usually
supplied by the alarm control panel, the consumption is
less than 1mW. NUBI 4.0 does not require any additional
energy from the external power supply when the smoke
cartridge is ignited, as this energy has already been stored
on the motherboard. This ensures the ignition of the
cartridge in any power condition and the guarantee of not
having any overload on the power supply even in case of
simultaneous triggering of many NUBI 4.0 devices.
NUBI 4.0 efficiently protects volumes up to 100 m
smoke generated by NUBI 4.0 is based on incense and
does not produce toxic atmosphere as tested according to
the TLV-STEL directive EU 2017/164 and ACGIH. After use
the room must be ventilated before staying there.
This version of NUBI 4.0 has no integrated PIR, it has only
the input to trigger the immediate smoke delivery.
The polarity of this input and its logic can be easily
configured using DIP switches to interface NUBI 4.0 with
anyburglar panel or command device.
The box opening is detected with a tamper switch, its clean
contact can be connected to the burglar panel.
The smoke cartridge works only once, the smoke
emission, when triggered, can no longer be interrupted.
The smoke cartridge replacement is very easy, each spare
cartridge is provided with a special board soldered on its
wires to be easily plugged on the proper motherboard
connector.
NUBI 4.0
3 . The
motherboard to fix the lower part of the box on the wall.

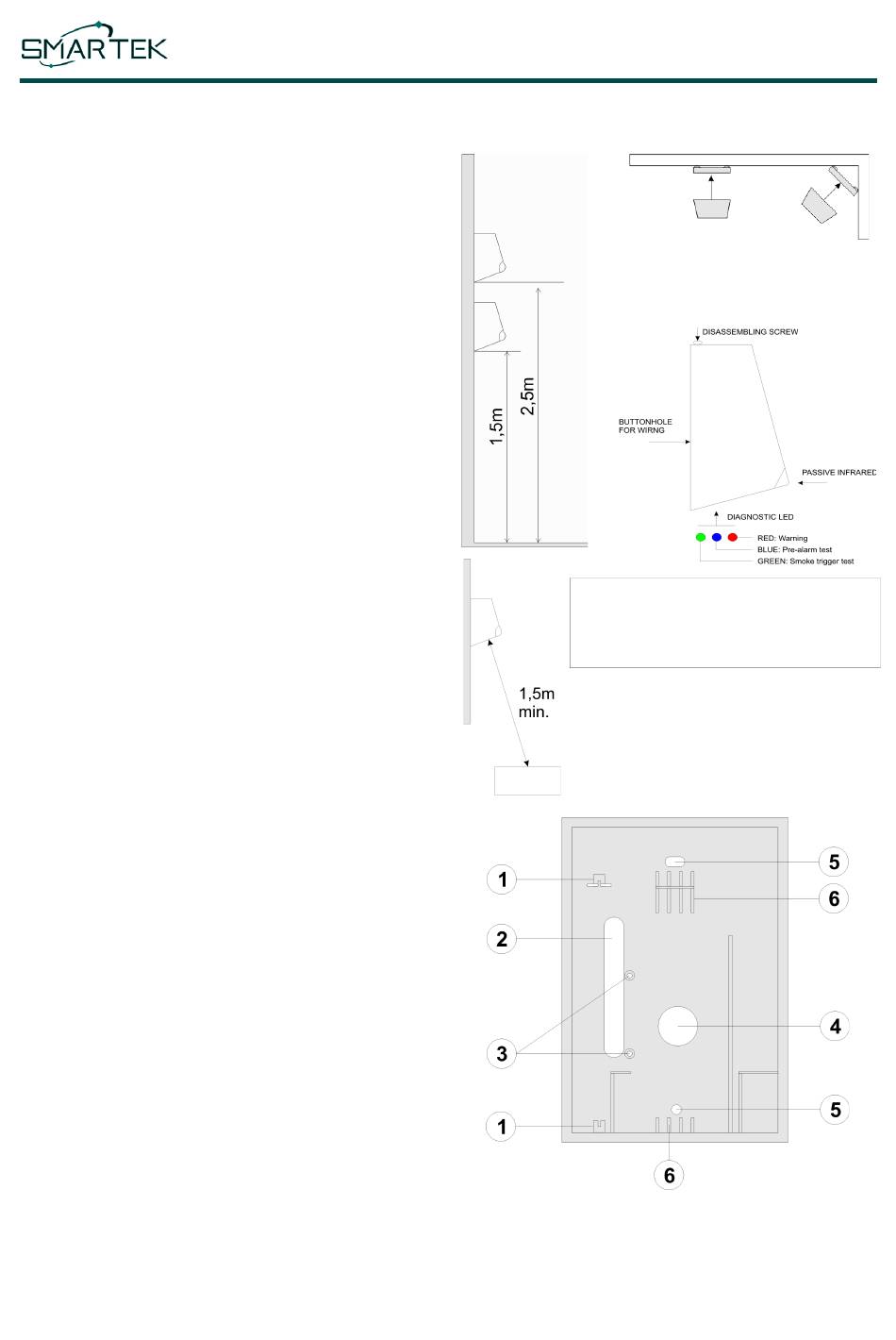

1 Motherboard rails
2 Cabling wire buttonhole
3 Internal siren fixing spacers
4 Internal siren sound outlet hole
5 Device fixing holes
6 Smoke cartridge supports
REV 01 – Nov. 2018 - ENGLISH
INSTALLATION
NUBI 4.0 can be easily installed on the
wall or even in a corner at a height
between 150 and 250 cm.
WARNING
Do not insert any obstacle at a distance
of less than 1.5 meters from the smoke
outlet hole.
The best performance is achieved when
the jet of smoke coming out from NUBI 4.0
directly hits the floor, in this way the smoke
will cool and spread better.
After opening the top cover, remove the
NB40S1
