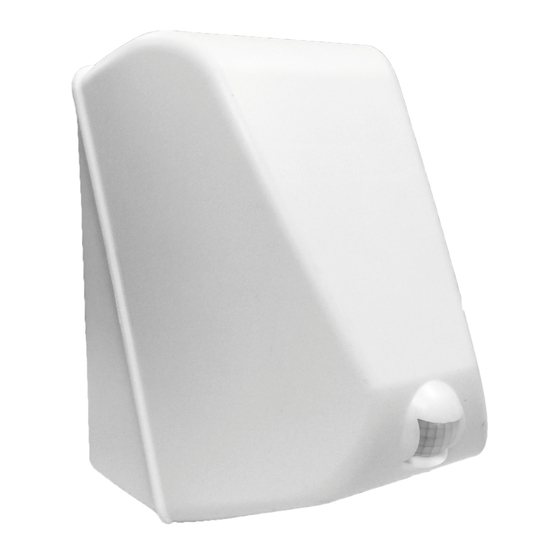

Smartek NUBI 4.0 Manual

Model: NB40LP1
Power supply: Lithium battery 3,6V
PIR: yes
Thank you for purchasing NUBI 4.0, the intelligent smoke
screen security device able to be connected to any burglar
alarm system in new or existing systems.
OPERATIONAL OVERVIEW
The device is powered by a 3.6V AA size lithium battery
supplied with the product, such as SAFT LS14500 or
similar. This battery provides the necessary energy to the
device for a period of 10 years. The ignition of the smoke
cartridge is ensured even when the battery is very low
(2.2V)
NUBI 4.0 efficiently protects volumes up to 100 m
smoke generated by NUBI 4.0 is based on incense and
does not produce toxic atmosphere as tested according to
the TLV-STEL directive EU 2017/164 and ACGIH. After use
the room must be ventilated before staying there.
NUBI 4.0 is activated through 3 inputs: one input drives the
immediate emission of smoke, while the other two inputs
realize a triple-consent logic to avoid false alarms. In this
case, to trigger the emission of smoke, it is necessary that
the state of the burglar system is armed, then within a time
window of 5 minutes two other conditions occur:
1) The burglar system goes into alarm
2) The integrated NUBI 4.0 PIR sensor detects movement
At the moment the second condition has been reach, the
smoke will be emitted immediately.
The inputs polarity and logic level can be easily configured
using the DIP switches in order to interface NUBI 4.0 with
any burglar panel.
NUBI 4.0 has got two outputs to inform other devices
about alarm state and the battery low. The output logic
level can be reversed using DIP switches.
The box opening is detected with a tamper switch, its clean
contact can be connected to the burglar panel.
An optional internal siren can be housed inside the box
and plugged to the proper motherboard connector. In this
case the device must be powered by an auxiliary battery
pack, housed inside the NUBI box and plugged into the
appropriate connector.
The smoke cartridge works only once, the smoke
emission, when triggered, can no longer be interrupted.
The smoke cartridge replacement is very easy, each spare
cartridge is provided with a special board soldered on its
wires to be easily plugged on the proper motherboard
connector.
NUBI 4.0
3 . The

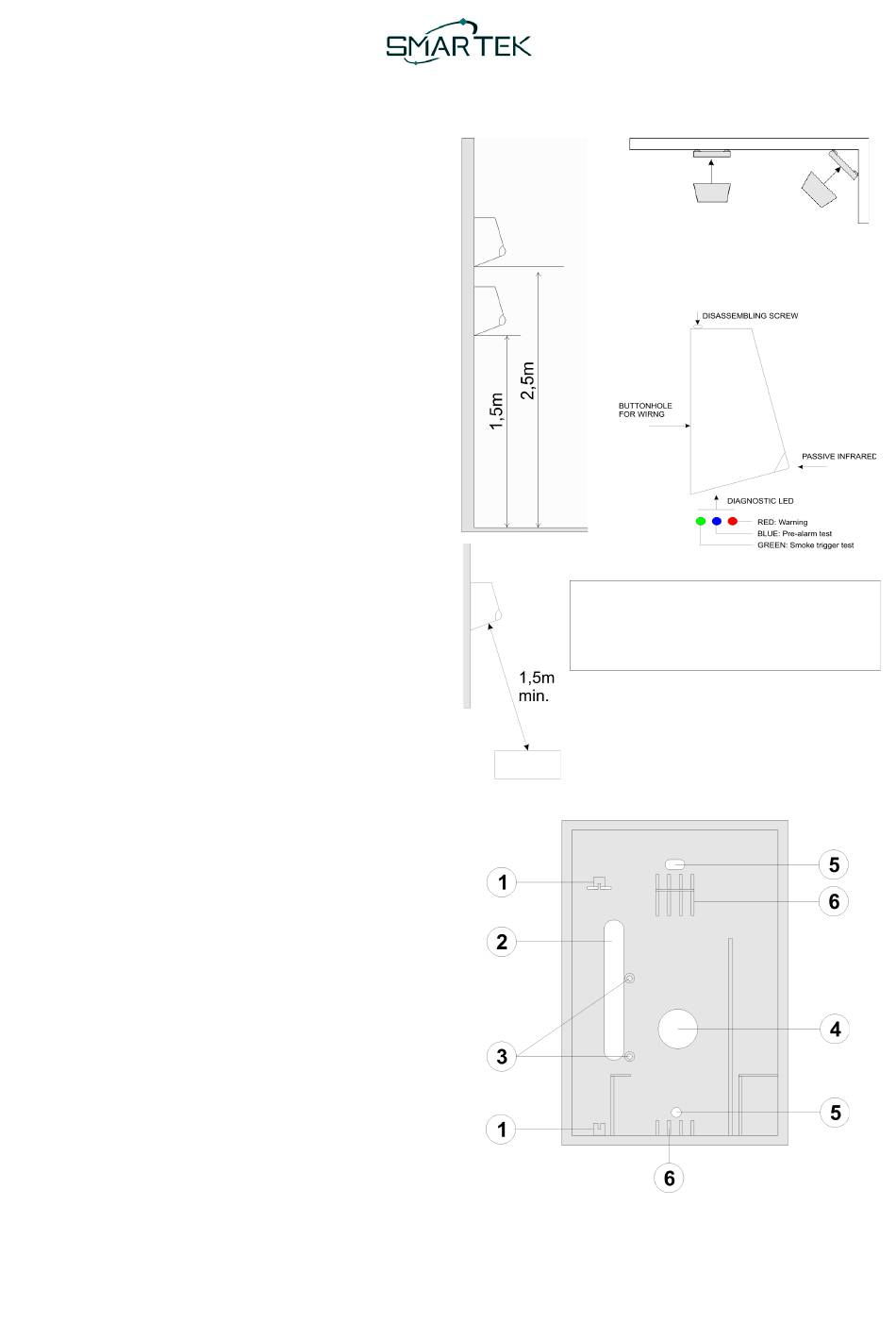

After opening the top cover, remove the motherboard to fix
the lower part of the box on the wall.
1 Motherboard rails
2 Cabling wire buttonhole
3 Internal siren fixing spacers
4 Internal siren sound outlet hole
5 Device fixing holes
6 Smoke cartridge supports
INSTALLATION
NUBI 4.0 can be easily installed on the
wall or even in a corner at a height
between 150 and 250 cm.
WARNING
Do not insert any obstacle at a distance
of less than 1.5 meters from the smoke
outlet hole.
The best performance is achieved when
the jet of smoke coming out from NUBI 4.0
directly hits the floor, in this way the smoke
will cool and spread better.
